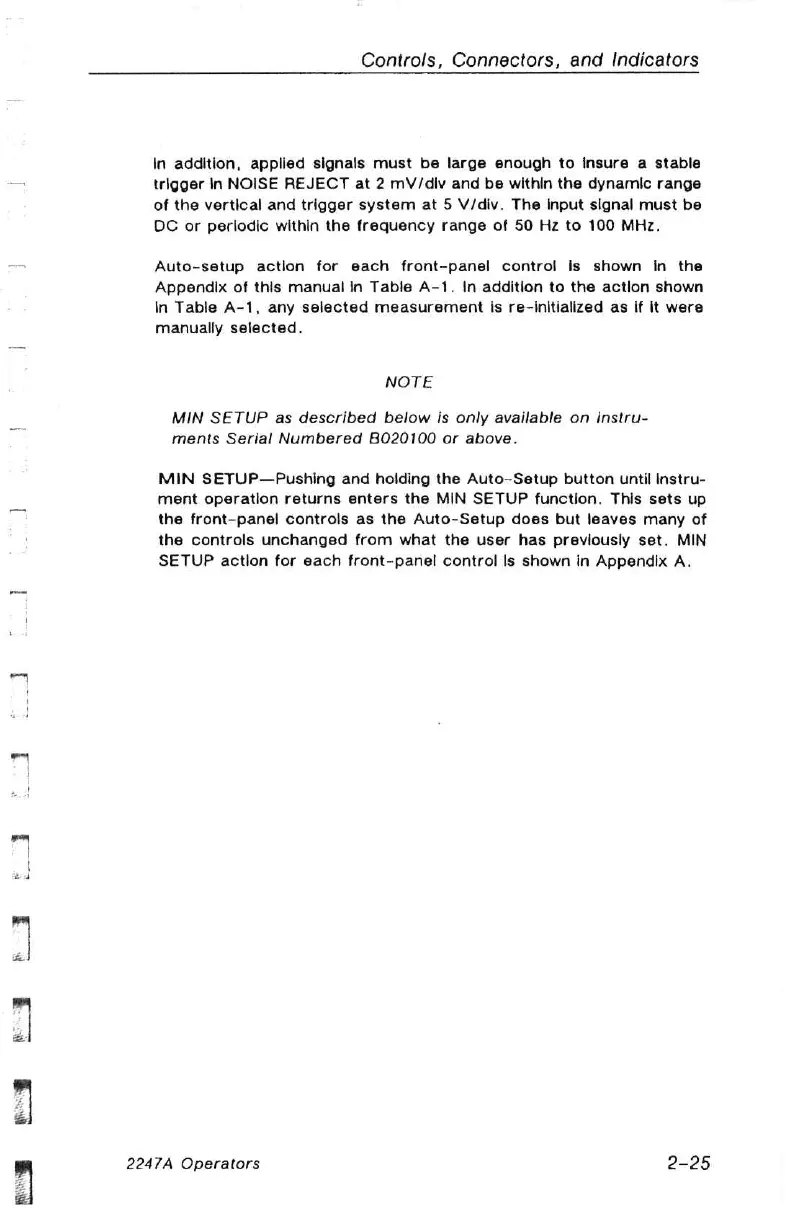

La
iy
Controls,
Connectors,
and
Indicators
In
addition,
applied
signals
must
be
large
enough
to
insure
a
stable
trigger
In
NOISE
REJECT
at
2
mV/dlv
and
be
within
the
dynamic
range
of
the
vertical
and
trigger
system
at
5
V/div.
The
Input
signal
must
be
DC
or
perlodic
within
the
frequency
range
of
50
Hz
to
100
MHz.
Auto-setup
actlon
for
each
front-panel
control
is
shown
in
the
Appendix
of
this
manual
In
Table
A-1.
In
addition
to
the
actlon
shown
In
Table
A-1,
any
selected
measurement
is
re-initialized
as
if it
were
manually
selected.
NOTE
MIN
SETUP
as
described
below
is
only
available
on
instru-
ments
Serial
Numbered
B020100
or
above.
MIN
SETUP—Pushing
and holding
the
Auto-Setup
button
until
Instru-
ment
operation
returns
enters
the
MIN
SETUP
function.
This
sets
up
the
front-panel
controls
as
the
Auto-Setup
does
but
leaves
many
of
the
controls
unchanged
from
what
the
user
has
previously
set.
MIN
SETUP
action
for
each
front-panel
control
Is
shown
in
Appendix
A.
2247A
Operators
2-25
