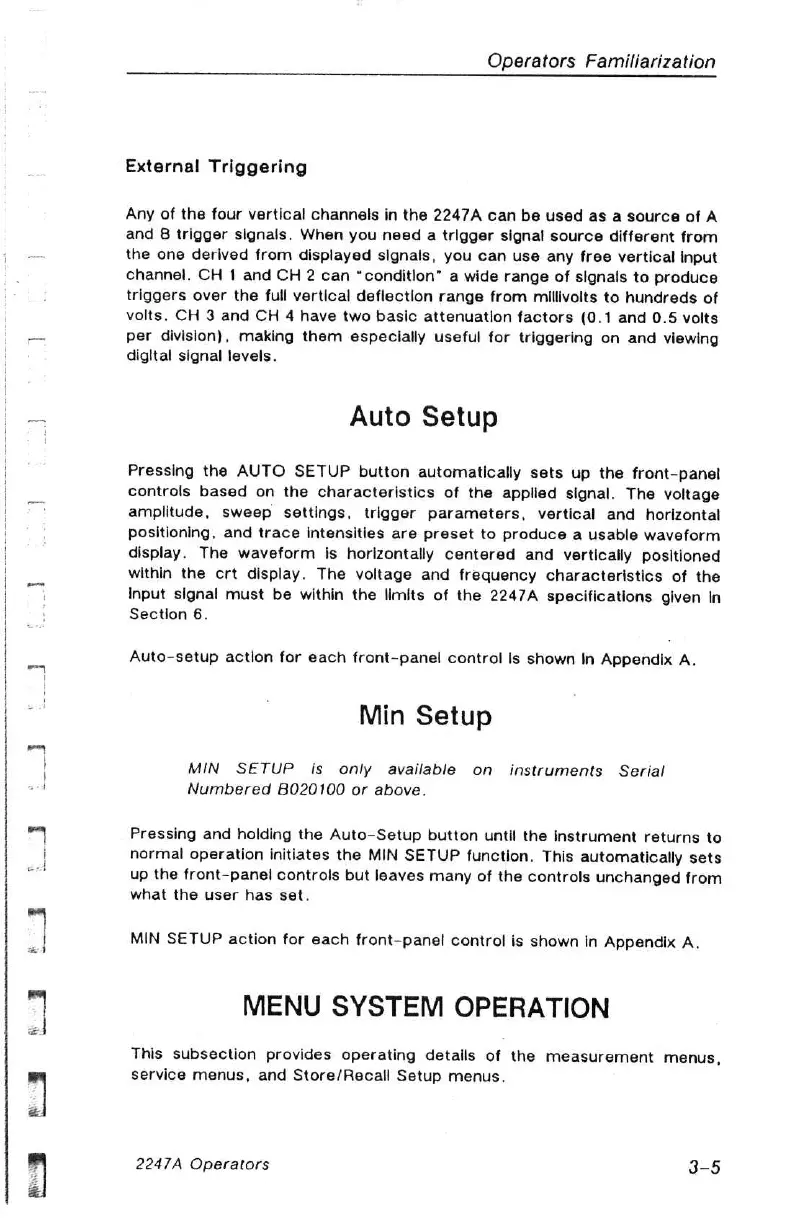

Operators
Familiarization
External
Triggering
Any
of
the
four
vertical
channels
in
the
2247A
can
be
used
as
a
source
of
A
and
8
trigger
signals.
When
you
need
a
trigger
signal
source
different
from
the
one
derived
from
displayed
signals,
you
can
use
any
free
vertical
input
channel.
CH
1
and
CH
2
can
“condition”
a
wide
range
of
signals
to
produce
triggers
over
the
full
vertical
deflection
range
from
millivolts
to
hundreds
of
volts.
CH
3
and
CH
4
have
two
basic
attenuation
factors
(0.1
and
0.5
volts
per
division),
making
them
especially
useful
for
triggering
on
and
viewing
digital
signal
levels.
Auto
Setup
Pressing
the
AUTO
SETUP
button
automatically
sets
up
the
front-panel
controls
based
on
the
characteristics
of
the
applied
signal.
The
voltage
amplitude,
sweep
settings,
trigger
parameters,
vertical
and
horizontal
positioning,
and
trace
intensities
are
preset
to
produce
a
usable
waveform
display.
The
waveform
is
horizontally
centered
and
vertically
positioned
within
the
crt
display.
The
voltage
and
frequency
characteristics
of
the
Input
signal
must
be
within
the
limits
of
the
2247A
specifications
given
In
Section
6.
Auto-setup
action
for
each
front-panel
control
Is
shown
In
Appendix
A.
Min
Setup
MIN
SETUP
is
only
available
on
instruments
Serial
Numbered
B020100
or
above.
Pressing
and
holding
the
Auto-Setup
button
until
the
instrument
returns
to
normal
operation
initiates
the
MIN
SETUP
function.
This
automatically
sets
up the
front-panel
controls
but
leaves
many
of
the
controls
unchanged
from
what
the
user
has
set.
MIN
SETUP
action
for
each
front-panel
control
is
shown
in
Appendix
A.
MENU
SYSTEM
OPERATION
This
subsection
provides
operating
details
of
the
measurement
menus,
service
menus,
and
Store/Recall
Setup
menus.
2247A
Operators
3-5
