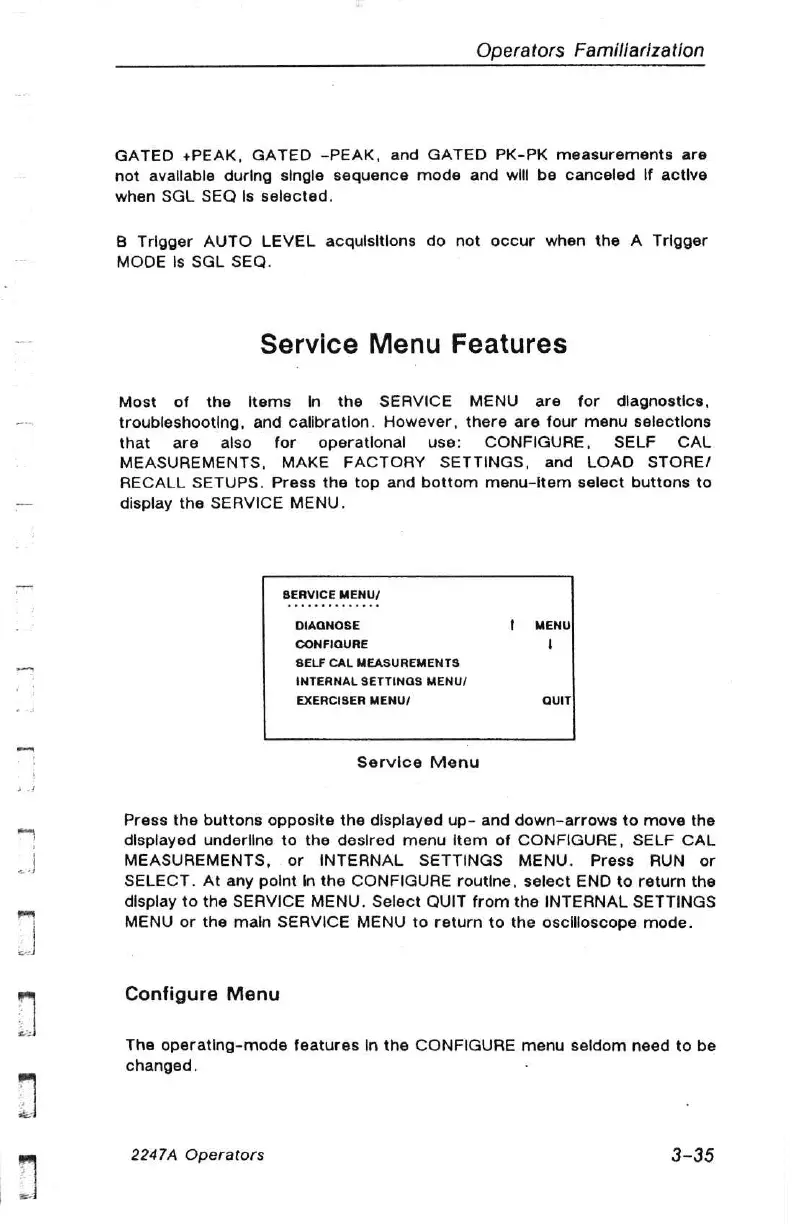

Operators Familiarization
GATED +PEAK, GATED -PEAK, and GATED PK-PK measurements are
not avallable during single sequence mode and will be canceled If active
when SGL SEQ Is selected.
B Trigger AUTO LEVEL acquisitions do not occur when the A Trigger
MOOE Is SGL SEQ.
Service Menu Features
Most of the Items in the SERVICE MENU are for dlagnostics,
troubleshooting, and calibration. However, there are four menu selectlons
that are also for operational use: CONFIGURE, SELF CAL
MEASUREMENTS, MAKE FACTORY SETTINGS, and LOAD STORE/
RECALL SETUPS. Press the top and bottom menu-item select buttons to
display the SERVICE MENU.
DIAGNOSE { MENU]
CONFIGURE 1
SELF CAL MEASUREMENTS
INTERNAL SETTINGS MENU/
EXERCISER MENU/ quit
Service Menu
Press the buttons opposite the displayed up- and down-arrows to move the
displayed underline to the desired menu Item of CONFIGURE, SELF CAL
MEASUREMENTS, or INTERNAL SETTINGS MENU. Press RUN or
SELECT. At any point In the CONFIGURE routine, select END to return the
display to the SERVICE MENU. Select QUIT from the INTERNAL SETTINGS
MENU or the main SERVICE MENU to return to the oscilloscope mode.
Configure Menu
The operating-mode features In the CONFIGURE menu seldom need to be
changed. :
2247A Operators 3-35
