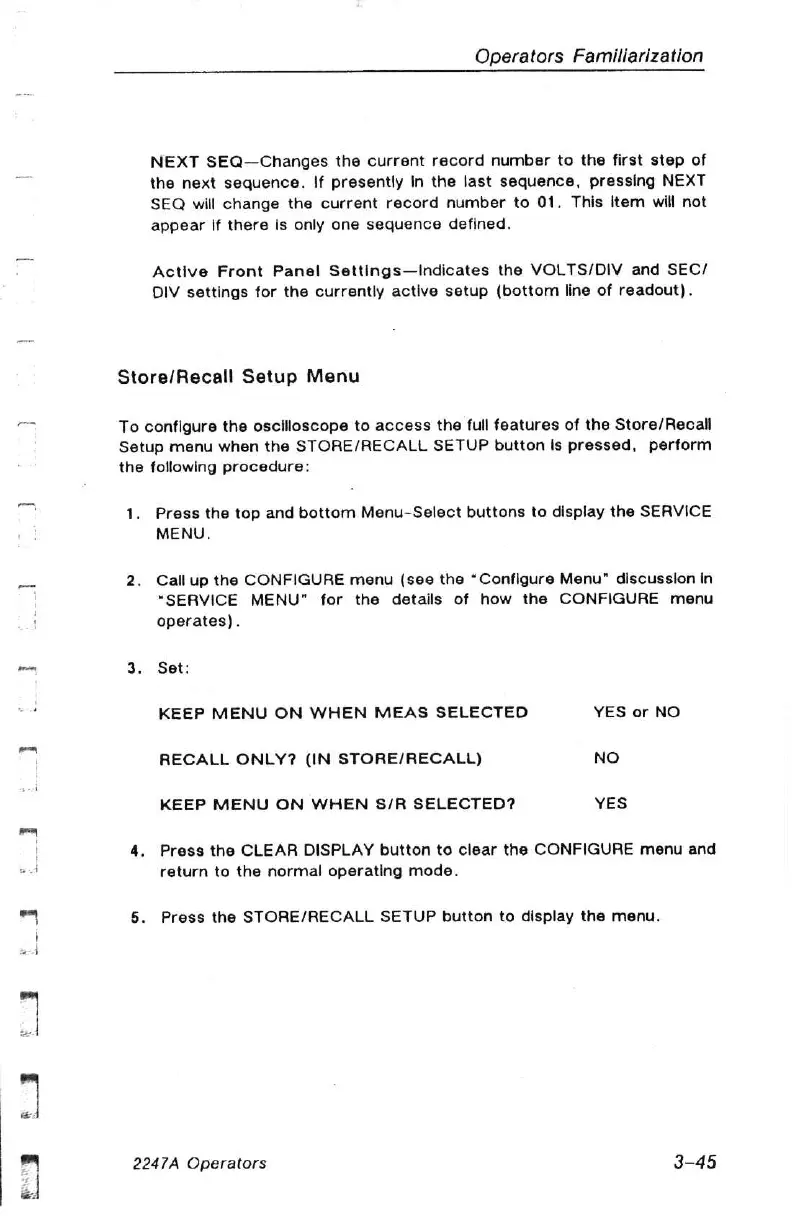

Operators Familiarization
NEXT SEQ—Changes the current record number to the first step of
the next sequence. If presently In the last sequence, pressing NEXT
SEQ will change the current record number to 01. This item will not
appear If there is only one sequence defined.
Active Front Panel Settings—Indicates the VOLTS/DIV and SEC/
DIV settings for the currently active setup (bottom line of readout).
Store/Recall Setup Menu
To configure the oscilloscope to access the full features of the Store/Recall
Setup menu when the STORE/RECALL SETUP button Is pressed, perform
the following procedure:
1. Press the top and bottom Menu-Select buttons to display the SERVICE
MENU.
2. Call up the CONFIGURE menu (see the “Configure Menu” discussion in
“SERVICE MENU” for the details of how the CONFIGURE menu
operates).
3. Set:
KEEP MENU ON WHEN MEAS SELECTED YES or NO
RECALL ONLY? (IN STORE/RECALL) NO
KEEP MENU ON WHEN S/R SELECTED? YES
4. Press the CLEAR DISPLAY button to clear the CONFIGURE menu and
return to the normal operating mode.
5. Press the STORE/RECALL SETUP button to display the menu.
2247A Operators 3-45
