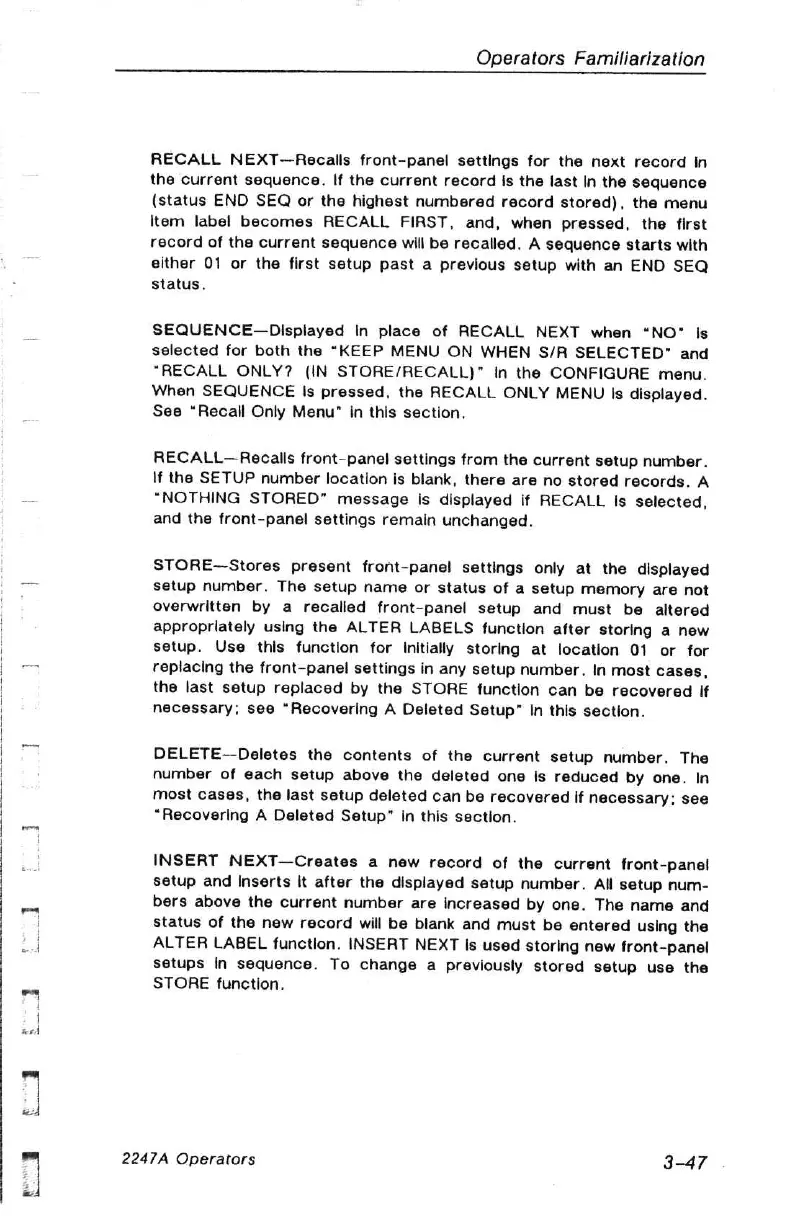

Operators Familiarization
RECALL NEXT—Recalls front-panel settings for the next record in
the current sequence. If the current record Is the last In the sequence
(status END SEQ or the highest numbered record stored), the menu
Item label becomes RECALL FIRST, and, when pressed, the first
record of the current sequence will be recalled. A sequence starts with
either
01
or
the
first
setup
past
a
previous
setup
with
an
END
SEQ
status.
SEQUENCE—Displayed In place of RECALL NEXT when “NO” Is
selected for both the “KEEP MENU ON WHEN S/R SELECTED" and
“RECALL
ONLY?
(IN
STORE/RECALL)”
in
the
CONFIGURE
menu.
When SEQUENCE Is pressed, the RECALL ONLY MENU Is displayed.
See “Recall Only Menu” in this section.
RECALL—Recalls
front-panel
settings
from
the
current
setup
number.
If
the
SETUP
number
location
is
blank,
there
are
no
stored
records.
A
“NOTHING
STORED”
message
is
displayed
if
RECALL
Is
selected,
and
the
front-panel
settings
remain
unchanged.
STORE-—Stores
present
front-panel
settings
only
at
the
displayed
setup
number.
The
setup
name
or
status
of
a
setup
memory
are
not
overwritten
by
a
recalled
front-panel
setup
and
must
be
altered
appropriately
using
the
ALTER
LABELS
function
after
storing
a
new
setup.
Use
this
function
for
initially
storing
at
location
01
or
for
replacing
the
front-panel
settings
in
any
setup
number.
In
most
cases,
the
last
setup
replaced
by
the
STORE
function
can
be
recovered
If
necessary;
see
“Recovering
A
Deleted
Setup”
In
this
section.
DELETE—Deletes
the
contents
of
the
current
setup
number,
The
number
of
each
setup
above
the
deleted
one
is
reduced
by
one.
In
most
cases,
the
last
setup
deleted
can
be
recovered
If
necessary;
see
“Recovering
A
Deleted
Setup”
in
this
section.
INSERT
NEXT—Creates
a
new
record
of
the
current
front-panel
setup
and
Inserts
It
after
the
displayed
setup
number.
All
setup
num-
bers
above
the
current
number
are
increased
by
one.
The
name
and
status
of
the
new
record
will
be
blank
and
must
be
entered
using
the
ALTER
LABEL
function.
INSERT
NEXT
Is
used
storing
new
front-panel
setups
In
sequence.
To
change
a
previously
stored
setup
use
the
STORE
function.
