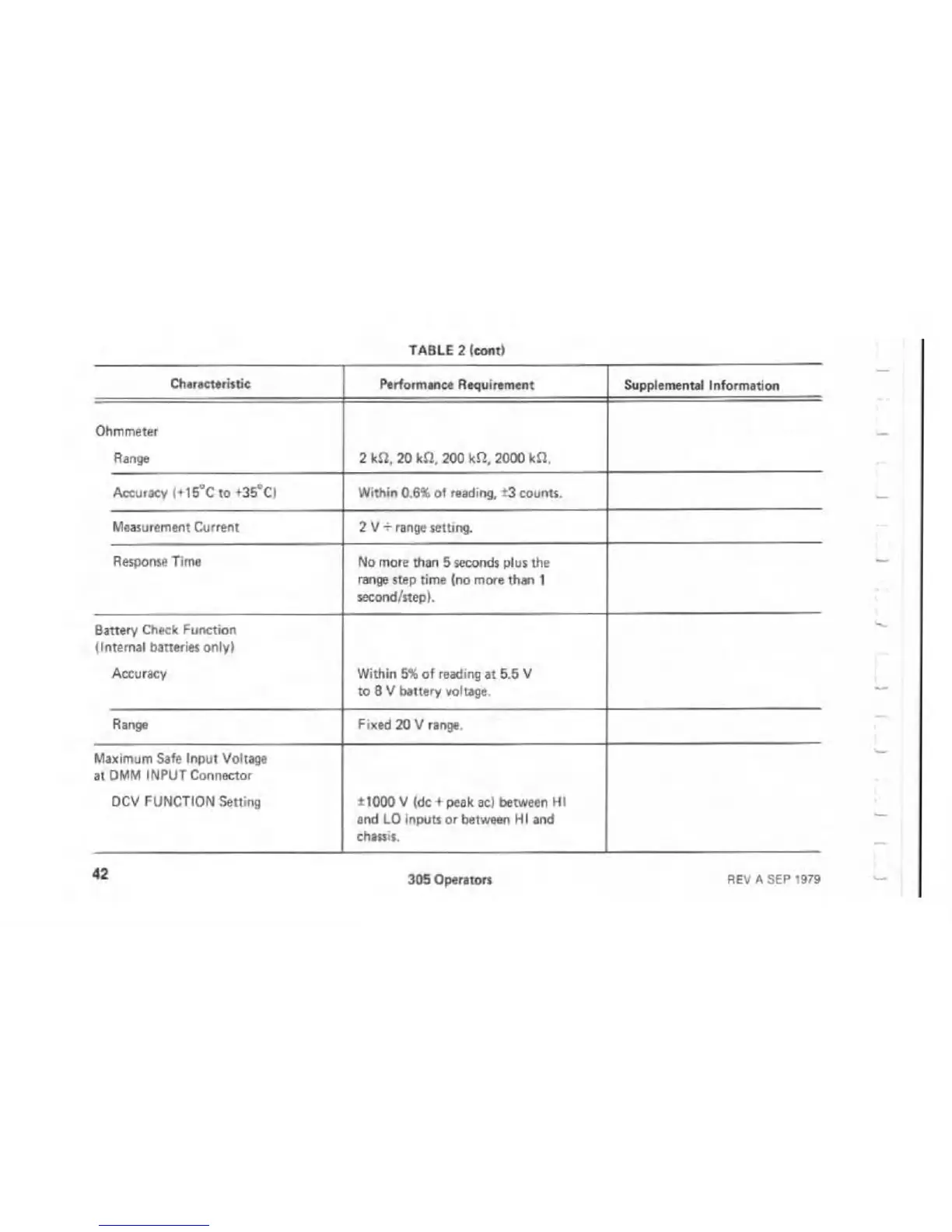

TABLE 2 (coin)
Characteristic
Performance Requirement
Supplemental Information
Ohmmeter
Range
2 kH, 20 kft, 200 k fi. 2000 kU.
Accuracy (+15°C to +35°CI Within 0.6% of reading, ±3 counts.
Measurement Current 2 V -r range setting.
Response Time
No more than 5 seconds plus the
range step time (no more than 1
second/step).
Battery Check Function
(Internal batteries only)
Accuracy
Within 5% of reading at 5.5 V
to 8 V battery voltage.
Range
Fixed 20 V range.
Maximum Safe Input Voltage
at DMM INPUT Connector
DCV FUNCTION Setting
±1000 V (dc + peak ac) between HI
and LO inputs or between HI and
chassis.
42
305 Operators
REV A SEP 1979
