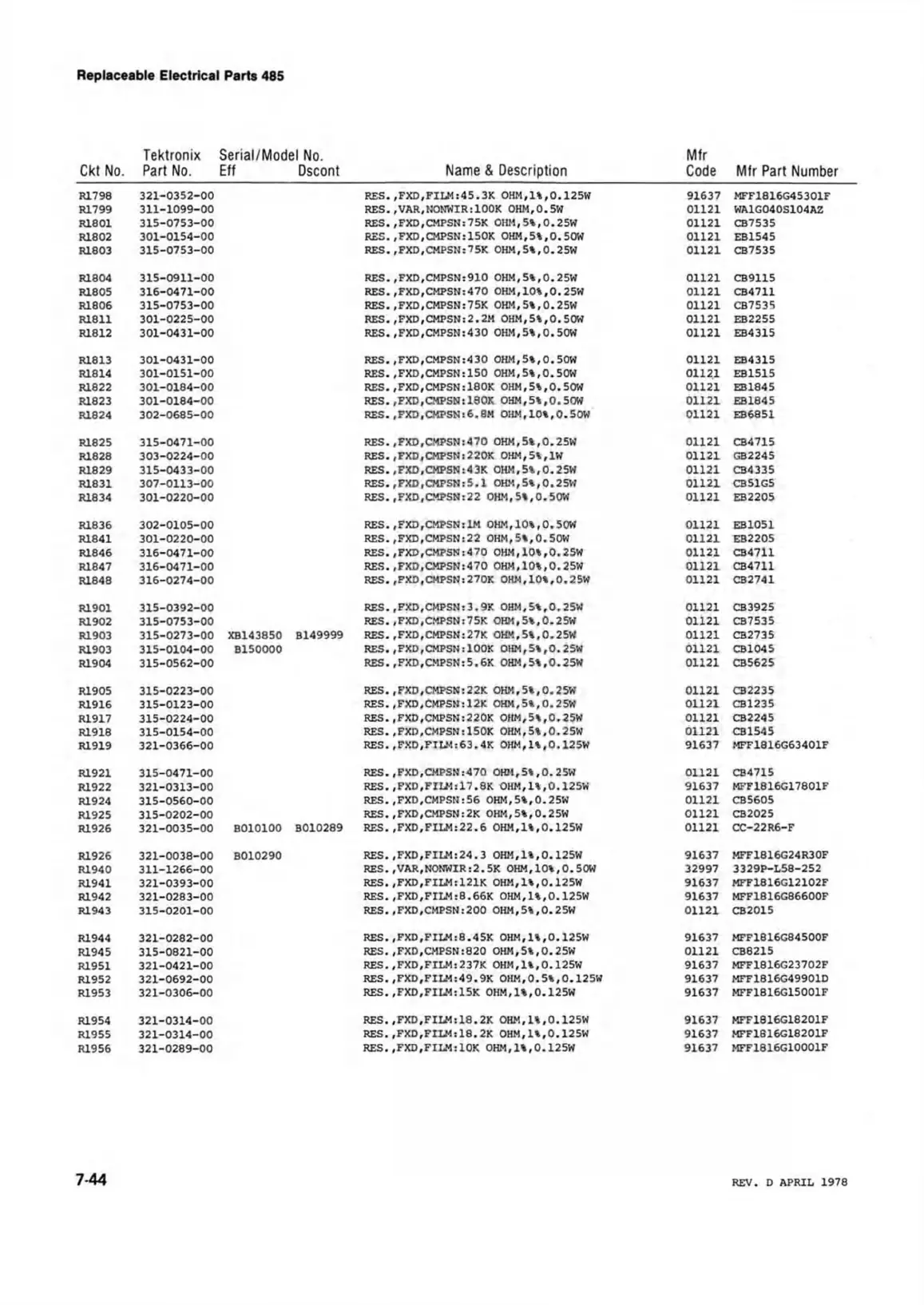

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont Name & Description
Mfr
Code Mfr Part Number
R1798
321-0352-00
RES.,FXD,FILM:45.3K OHM,1%,0.125W
91637
MFF1816G45301F
R1799
311-1099-00
RES. ,VAR,NONWIR:100K OHM,0.5W
01121
WA1G040S104AZ
R1801
315-0753-00
RES. ,FXD,CMPSN:75K OHM,5%,0.25W
01121
CB7535
R1802
301-0154-00 RES.,FXD,CMPSN:150K OHM,5%,0.50W 01121 EB1545
R1803
315-0753-00
RES.,FXD,CMPSN:75K OHM,5%,0.25W
01121 CB7535
R1304 315-0911-00
RES.,FXD,CMPSN:910 OHM,S%,0.25W
01121 CB9115
R1805 316-0471-00 RES.,FXD,CMPSN:470 OHM,10%,0.25W 01121 CB4711
R1806
315-0753-00
RES.,FXD,CMPSN:75K OHM,5%,0.25W
01121
CB7535
R1811 301-0225-00
RES.,FXD,CMPSN:2.2M OHM,5%,0.SOW
01121 EB2255
R1812 301-0431-00
RES.,FXD,CMPSN:430 OHM,5%,0.SOW 01121 EB4315
R1813 301-0431-00
RES.,FXD,CMPSN:430 OHM,5%,0.50W 01121
EB4315
R1814 301-0151-00 RES.,FXD,CMPSN:150 OHM,5%,0.SOW 01121 EB1515
R1822 301-0184-00 RES.,FXD,CMPSN:180K OHM,5%,0.SOW 01121 EB1845
R1823
301-0184-00
RES.,FXD,CMPSN:180K OHM,5%,0.50W 01121 EB1845
R1824
302-0685-00
RES.,FXD,CMPSN:6.8M OHM,10%,0.50W
01121 EB6851
R1825
315-0471-00
RES.,FXD,CMPSN:470 OHM,S%,0.25W
01121 CB4715
R1828 303-0224-00
RES.,FXD,CMPSN:220K 0HM,5%,1W
01121 GB2245
R1829 315-0433-00
RES.,FXD,CMPSN:43K 0HM,5%,0.25W
01121 CB4335
R1831 307-0113-00
RES.,FXD,CMPSN:5.1 OHM,5%,0.25W
01121 CB51G5
R1834 301-0220-00
RES.,FXD,CMPSN:22 OHM,5%,0.50W 01121
EB2205
R1836 302-0105-00
RES.,FXD,CMPSN:1M OHM,10%,0.50W
01121 EB1051
R1841 301-0220-00
RES.,FXD,CMPSN:22 OHM,5%,0.50W
01121
EB2205
R1846
316-0471-00
RES.,FXD,CMPSN:470 OHM,10%,0.25W
01121 CB4711
R1847
316-0471-00
RES.,FXD,CMPSN:470 OHM,10%,0.25W 01121
CB4711
R1848
316-0274-00
RES.,FXD,CMPSN:270K OHM,10%,0.25W 01121 CB2741
R1901 315-0392-00
RES.,FXD,CMPSN:3.9K OHM,5%,0.25W
01121 CB3925
R1902 315-0753-00
RES.,FXD,CMPSN:75K 0HM,5%,0.25W
01121 CB7535
R1903 315-0273-00 XB143850
B149999 RES.,FXD,CMPSN:27K OHM,5%,0.25W
01121 CB2735
R1903
315-0104-00 B150000
RES.,FXD,CMPSN:100K 0HM,5%,0.25W 01121 CB1045
R1904 315-0562-00
RES.,FXD,CMPSN:5.6K OHM,5%,0.25W 01121
CB5625
R1905 315-0223-00
RES.,FXD,CMPSN:22K OHM,5%,0.25W
01121 CB2235
R1916 315-0123-00
RES.,FXD,CMPSN:12K OHM,5%,0.25W
01121 CB1235
R1917
315-0224-00
RES.,FXD,CMPSN:220K OHM,5%,0.25W 01121
CB2245
R1918
315-0154-00
RES.,FXD,CMPSN:150K OHM,5%,0.25W
01121 CB1545
R1919
321-0366-00
RES.,FXD,FILM:63.4K OHM,1%,0.125W 91637 MFF1816G63401F
R1921
315-0471-00
RES., FXD, CMPSN: 4 70 OHM,5%,0.25W
01121 CB4715
R1922 321-0313-00
RES.,FX0,FILM:17.8K OHM,1%,0.125W
91637
MFF1816G17801F
R1924
315-0560-00
RES.,FXD,CMPSN:56 OHM,5%,0.25W
01121 CB5605
R1925
315-0202-00
RES.,FXD,CMPSN:2K OHM,5%,0.25W 01121 CB2025
R1926 321-0035-00
B010100
8010289
RES.,FXD,FILM:22.6 OHM,1%,0.125W 01121 CC-22R6-F
R1926 321-0038-00 B010290
RES.,FXD,FILM:24.3 OHM,1%,0.125W 91637
MFF1816G24R30F
R1940
311-1266-00
RES.,VAR,NONWIR:2.5K OHM,10%,0.50W 32997
3329P-L58-252
R1941 321-0393-00
RES.,FXD,FILM:121K OHM,1%,0.125W 91637
MFF1816G12102F
R1942
321-0283-00
RES.,FXD,FILM:8.66K OHM,1%,0.125W
91637
MFF1816G86600F
R1943 315-0201-00
RES.,FXD,CMPSN1200 0HM,5%,0.25W 01121 CB2015
R1944 321-0282-00
RES.,FXD,FILM:8.45K 0HM,1%,0.125W
91637 MFF1816G84500F
R1945
315-0821-00
RES.,FXD,CMPSN:820 OHM,S%,0.25W
01121 CB8215
R1951
321-0421-00
RES.,FXD,FILM:237K OHM,1%,0.125W
91637
MFF1816G23702F
R19S2
321-0692-00
RES.,FXD,FILM:49.9K OHM,0.5%,0.125W 91637 MFF1816G49901D
R1953 321-0306-00
RES.,FXD,FIU4:15K OHM,1%,0.125W 91637
MFF1816G15001F
R1954 321-0314-00
RES.,FXD,FIIM:18.2K OHM,1%,0.125W 91637
MFF1816G18201F
R1955
321-0314-00
RES.,FXD,FILM:18.2K OHM,1%,0.125W 91637
MFF1816G18201F
R1956 321-0289-00
RES.,FXD,FILM:10K OHM,1%,0.125W 91637
MFF1816G10001F
7-44 REV. D A P RIL 1978
