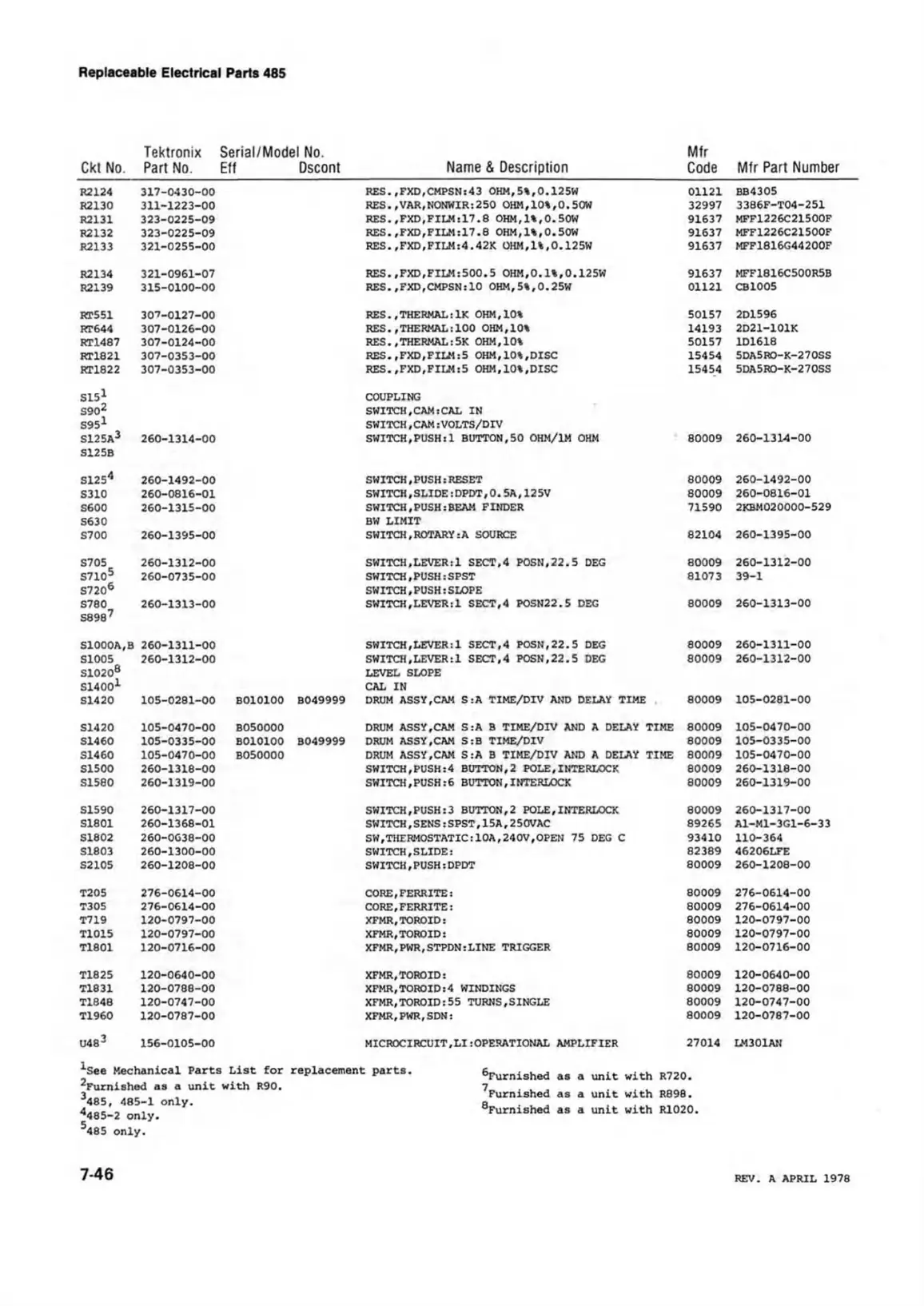

Tektronix 485 User Manual

Replaceable Electrical Parts 48S
Tektronix Serial/Model No. Mfr
Ckt No.
Part No. Eff
Dscont
Name & Description
Code
Mfr Part Number
R2124 317-0430-00
RES.,FXD,CMPSN:43 OHM,5%,0.125W
01121
BB430S
R2130
311-1223-00
RES. ,VAR,NONWIR:250 OHM,10%,0.50W
32997
3386F-T04-251
R2131 323-0225-09
RES.,FXD,FILM:17.8 OHM,1%,0.50W
91637
MFF1226C21500F
R2132 323-0225-09
RES.,FXD,FILM:17.8 OHM,1%,0.50W
91637
MFF1226C21500F
R2133 321-0255-00
RES.,FXD,FILM:4.42K OHM,1%,0.125W
91637
MFF1816G44200F
R2134
321-0961-07
RES.,FXD,FILM:500.5 OHM,0.1%,0.125W
91637
MFF1816C500R5B
R2139
315-0100-00
RES. ,FXD,CMPSN:10 OHM,5»,0.25W
01121
CB1005
RT551
307-0127-00
RES..THERMAL:IK OHM,10% 50157
2D1596
RT644
307-0126-00
RES..THERMAL:100 OHM,10%
14193
2D21-101K
RT1487
307-0124-00
RES. ,THERMAL:5K OHM,10% 50157
1D1618
RT1821 307-0353-00
RES.,FXD,FXLM:5 OHM,10%,DISC
15454
5DA5RO-K-270SS
RT1822 307-0353-00
RES.,FXD,FILM:5 OHM,10%,DISC
15454
5DA5RO-K-270SS
S151
COUPLING
S902
SWITCH,CAM:CAL IN
S951
SWITCH, CAM: VOLTS/DIV
S125A3
260-1314-00
SWITCH,PUSH:1 BUTTON,50 OHM/1M OHM 80009
260-1314-00
S125B
S1254
260-1492-00
SWITCH,PUSH:RESET 80009
260-1492-00
S310 260-0816-01
SWITCH,SLIDE:DPDT,0.5A,125V
80009 260-0816-01
seoo 260-1315-00
SWITCH,PUSH:BEAM FINDER
71590
2KBM020000-529
S630
BW LIMIT
S700 260-1395-00
SWITCH,ROTARY:A SOURCE
82104
260-1395-00
S705
260-1312-00
SWITCH,LEVER:1 SECT,4 POSN.22.5 DEG
80009
260-1312-00
S7105 260-0735-00
SWITCH,PUSH:SPST 81073
39-1
S7206
SWITCH,PUSH:SLOPE
S780 260-1313-00
SWITCH,LEVER:1 SECT,4 POSN22.5 DEG
80009
260-1313-00
S898
S1000A.B
260-1311-00
SWITCH,LEVER:1 SECT,4 POSN.22.5 DEG 80009 260-1311-00
S1005 260-1312-00
SWITCH,LEVER:1 SECT,4 POSN.22.5 DEG 80009 260-1312-00
S10208
LEVEL SLOPE
S14001
CAL IN
S1420
105-0281-00
B010100 B049999
DRUM ASSY,CAM S:A TIME/DIV AND DELAY TIME 80009 105-0281-00
S1420 105-0470-00 B050000
DRUM ASSY,CAM S:A B TIME/DIV AND A DELAY TIME 80009 105-0470-00
S1460
105-0335-00 B010100
B049999
DRUM ASSY,CAM S:B TIME/DIV
80009
105-0335-00
S1460
105-0470-00
B050000
DRUM ASSY,CAM S :A B TIME/DIV AND A DELAY TIME 80009
105-0470-00
S1500
260-1318-00
SWITCH,PUSH:4 BUTTON,2 POLE,INTERLOCK
80009 260-1318-00
S1580 260-1319-00 SWITCH,PUSH:6 BUTTON,INTERLOCK
80009
260-1319-00
S1590 260-1317-00
SWITCH,PUSH:3 BUTTON,2 POLE,INTERLOCK
80009 260-1317-00
S1801
260-1368-01 SWITCH, SENS: SPST, 15A, 250VAC
89265 A1-M1-3G1-6-33
S1802
260-0638-00 SW,THERMOSTATIC:10A,240V,OPEN 75 DEG C 93410 110-364
S1803 260-1300-00 SWITCH,SLIDE:
82389 46206LFE
S2105
260-1208-00
SWITCH,PUSH:DPDT
80009
260-1208-00
T205 276-0614-00 CORE, FERRITE: 80009 276-0614-00
T305
276-0614-00
CORE,FERRITE:
80009 276-0614-00
T719 120-0797-00 XFMR,TOROID:
80009 120-0797-00
T101S 120-0797-00
XFMR,TOROID:
80009
120-0797-00
T1801 120-0716-00
XFMR, PWR, STPDN: LINE TRIGGER
80009 120-0716-00
T1825 120-0640-00
XFMR, TOROID: 80009
120-0640-00
T1831 120-0788-00
XFMR,TOROID:4 WINDINGS 80009
120-0788-00
T1848 120-0747-00
XFMR,TOROID:55 TURNS,SINGLE 80009 120-0747-00
T1960 120-0787-00
XFMR, PWR, SDN.
80009
120-0787-00
U483 156-0105-00
MICROCIRCUIT,LI OPERATIONAL AMPLIFIER
27014
LM301AN
^See Mechanical Parts List for replacement parts.
^Furnished as a unit with R90.
3485, 485-1 only.
4485-2 only.
5485 only.
^Furnished as a unit with R720.
^Furnished as a unit with R898.
^Furnished as a unit with R1020
7-46
REV. A APRIL 1978
