Tektronix 485

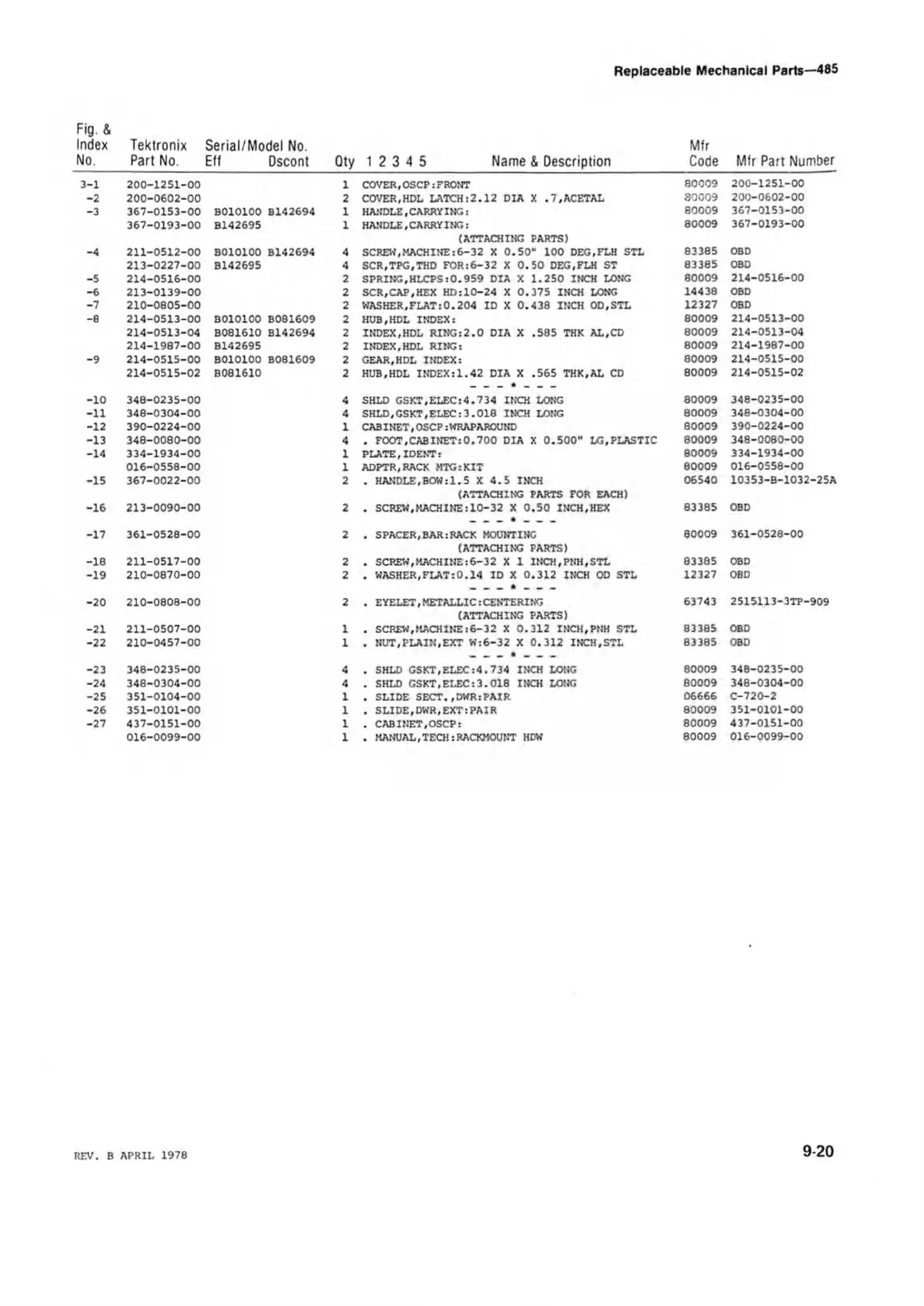

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Etf Dscont
Qty 1 2 3 4 5 Name & Description
Mfr
Code
3-1
200-1251-00 l
COVER,OSCP:FRONT
80009
-2
200-0602-00 2
COVER,HDL LATCH:2.12 DIA X .7,ACETAL
30009
-3
367-0153-00 B010100
B142694
1
HANDLE,CARRYING:
80009
367-0193-00 B142695
1
HANDLE,CARRYING:
80009
(ATTACHING PARTS)
-4
211-0512-00 B010100
B142694 4 SCREW,MACHINE:6-32 X 0.50" 100 DEG.FLH STL
83385
213-0227-00 B142695 4
SCR,TPG,THD FOR:6-32 X 0.50 DEG.FLH ST
83385
-5
214-0516-00
2 SPRING,HLCPS:0.959 DIA X 1.250 INCH LONG
80009
-6
213-0139-00 2
SCR,CAP,HEX HD: 10-24 X 0.375 INCH LONG
14438
-7
210-0805-00 2 WASHER,FLAT:0.204 ID X 0.438 INCH OD.STL
12327
-8
214-0513-00 B010100
B081609 2 HUB,HDL INDEX:
80009
214-0513-04
3081610 B142694 2 INDEX,HDL RING:2.0 DIA X .585 THK AL,CD
80009
214-1987-00
B142695 2 INDEX,HDL RING:
80009
-9 214-0515-00 B010100 B081609
2 GEAR,HDL INDEX:
80009
214-0515-02 B081610
2 HUB,HDL INDEX: 1.42 DIA X .565 THK.AL CD
80009
-10 348-0235-00 4 SHLD GSKT,ELEC:4.734 INCH LONG
80009
-11
348-0304-00
4 SHLD,GSKT,ELEC:3•018 INCH LONG
80009
-12 390-0224-00
1
CABINET,OSCP:WRAPAROUND 80009
-13
348-0080-00
4 . FOOT,CABINET:0.700 DIA X 0.500" LG,PLASTIC
80009
-14 334-1934-00
1
PLATE,IDENT:
80009
016-0558-00
1
ADPTR,RACK MTG:KIT
80009
-15
367-0022-00
2 . HANDLE,BOW:1.5 X 4.5 INCH
06540
(ATTACHING PARTS FOR EACH)
-16
213-0090-00 2 . SCREW,MACHINE: 10-32 X 0.50 INCH,HEX
83385
-17 361-0528-00 2 . SPACER, BAR .-RACK MOUNTING
80009
(ATTACHING PARTS)
-18
211-0517-00
2 . SCREW,MACHINE:6-32 X 1 INCH,PNH,STL
83385
-19
210-0870-00
2
. WASHER,FLAT:0.14 ID X 0.312 INCH OD STL
12327
-20
210-0808-00 2 . EYELET,METALLIC:CENTERING
63743
(ATTACHING PARTS)
-21
211-0507-00
1
. SCREW,MACHINE:6-32 X 0.312 INCH,PNH STL 83385
-22
210-0457-00
1
. NUT,PLAIN,EXT W:6-32 X 0.312 INCH,STL
83385
-23
348-0235-00 4 . SHLD GSKT,ELEC:4.734 INCH LONG
80009
-24 348-0304-00
4
. SHLD GSKT,ELEC:3.018 INCH LONG
80009
-25 351-0104-00 i
. SLIDE SECT.,DWR:PAIR
06666
-26
351-0101-00
i
. SLIDE,DWR,EXT:PAIR
80009
-27 437-0151-00 i
. CABINET,OSCP:
80009
016-0099-00
i
. MANUAL,TECH:RACKMOUNT HDW
80009
REV. B APRIL 1978
Mfr Part Number
200-1251-00
200-0802-00
367-0153-00
367-0193-00
OBD
OBD
214-0516-00
OBD
OBD
214-0513-00
214-0513-04
214-1987-00
214-0515-00
214-0515-02
348-0235-00
348-0304-00
390-0224-00
348-0080-00
334-1934-00
016-0558-00
10353-B-1032-25A
OBD
361-0528-00
OBD
OBD
2515113-3TP-909
OBD
OBD
348-0235-00
348-0304-00
C-720-2
351-0101-00
437-0151-00
016-0099-00
9-20
