Tektronix 485 User Manual

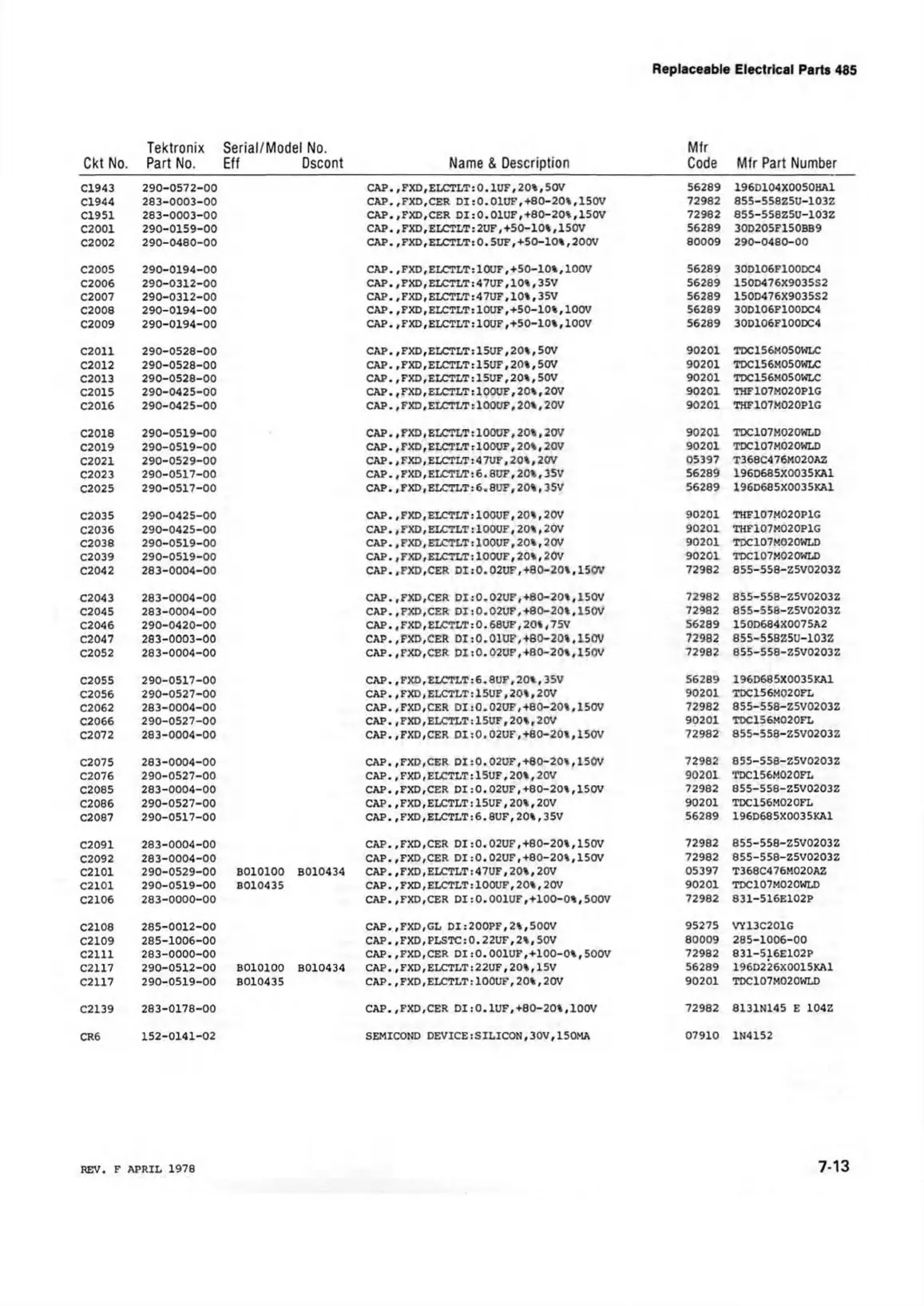

Replaceable Electrical Parts 485
C kt No.
T e k tro n ix
Part No.
S eria l/M o d e l No.
Eft Dscont Nam e & D e s c ription
M fr
Code M fr Part Num ber
C1943 290-0572-00
CAP.,FXD,ELCTLT:0.1UF,20%,50V
56289
196D104X0050HA1
C1944
283-0003-00
CAP.,FXD,CER DI:0.01UF,+80-20%,150V 72982 855-55825U-1032
C1951 283-0003-00
CAP.,FXD,CER DI:0.01UF,+80-20%,150V 72982 855-55825U-1032
C2001 290-0159-00
CAP.,FXD,ELCTLT: 2UF,+50-10%,150V 56289 30D205F150BB9
C2002 290-0480-00
CAP.,FXD,ELCTLT:0.5UF,+50-10%,200V 80009 290-0480-00
C2005
290-0194-00
CAP.,FXD,ELCTLT:10UF,+50-10%,100V 56289 30D106F100DC4
C2006
290-0312-00
CAP.,FXD,ELCTLT:47UF,10%,35V
56289
150D476X9035S2
C2007 290-0312-00
CAP.,FXD,ELCTLT:47UF,10%,35V
56289
150D476X9035S2
C2008
290-0194-00
CAP.,FXD,ELCTLT:10UF,+50-10%,100V 56289
30D106F100DC4
C2009 290-0194-00
CAP.,FXD,ELCTLT:10UF,+50-10%,100V
56289
30D106F100DC4
C2011 290-0528-00
CAP.,FXD,ELCTLT:15UF,20%,50V
90201
TDC156M050WLC
C2012 290-0528-00
CAP. ,FXD,ELCTLT: 15UF,20%,50V
90201 TDC156M050WLC
C2013 290-0528-00
CAP.,FXD,ELCTLT:15UF,20%,50V
90201 TDC156M050WLC
C2015
290-0425-00
CAP.,FXD,ELCTLT:100UF,20%,20V 90201 THF107M02 0P1G
C2016 290-0425-00
CAP.,FXD,ELCTLT:100UF,20%,20V 90201
THF107M020P1G
C2018 290-0519-00
CAP.,FXD,ELCTLT:100UF,20%,20V
90201
TDC107M020WLD
C2019
290-0519-00
CAP.,FXD,ELCTLT:100UF,20%,20V
90201 TDC107M020WLD
C2021 290-0529-00
CAP. ,FXD,ELCTLT:47UF,20%,20V
05397 T368C476M020A2
C2023
290-0517-00
CAP.,FXD,ELCTLT:6.8UF,20%,35V
56289 196D685X0035KA1
C2025
290-0517-00
CAP.,FXD,ELCTLT:6.8UF,20%,35V 56289
196D685X0035KA1
C2035 290-0425-00
CAP.,FXD,ELCTLT:100UF,20%,20V 90201
THF107M020P1G
C2036 290-0425-00
CAP.,FXD,ELCTLT:100UF,20%,20V 90201 THF107M020P1G
C2038
290-0519-00
CAP.,FXD,ELCTLT:100UF,20%,20V
90201 TDC107M020WLD
C2039 290-0519-00
CAP.,FXD,ELCTLT:100UF,20%,20V 90201
TDC107M020WLD
C2042
283-0004-00 CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-25V02032
C2043 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982
855-558-25V02032
C2045 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982
855-558-25V02032
C2046 290-0420-00
CAP.,FXD,ELCTLT:0.68UF,20%,75V 56289
150D684X0075A2
C2047
283-0003-00
CAP.,FXD,CER DI:0.01UF,+80-20%,150V 72982
855-55825U-1032
C2052
283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V 72982 855-558-25V02032
C2055 290-0517-00
CAP.,FXD,ELCTLT:6.8UF,20%,35V 56289
196D685X0035KA1
C2056
290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V
90201 TDC156M020FL
C2062 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-25V02032
C2066 290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V 90201
TDC156M020FL
C2072 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-25V02032
C2075
283-0004-00
CAP.,FXD,CER DI:0.020F,+80-20%,150V
72982 855-558-25V02032
C2076
290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
C2085
283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-25V02032
C2086
290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V
90201 TDC156M020FL
C2087 290-0517-00
CAP.,FXD,ELCTLT:6.8UF,20%,35V 56289
196D685X0035KA1
C2091
283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982
855-558-Z5V02032
C2092 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982
855-558-Z5V0203Z
C2101
290-0529-00 B010100
B010434
CAP.,FXD,ELCTLT:47UF,20%,20V
05397
T368C476M020A2
C2101
290-0519-00 B010435
CAP.,FXD,ELCTLT:100UF,20%,20V 90201 TDC107M020WLD
C2106
283-0000-00
CAP.,FXD,CER DI:0.001UF,+100-0%,500V
72982
831-516E102P
C2108
285-0012-00
CAP.,FXD,GL DI :200PF,2%,500V
95275
VY13C201G
C2109
285-1006-00
CAP.,FXD,PLSTC:0.22UF,2%,50V
80009 285-1006-00
C2111 283-0000-00
CAP.,FXD,CER DI:0.001UF,+100-0%,500V
72982 831-516E102P
C2117 290-0512-00 B010100 B010434
CAP.,FXD,ELCTLT:22UF,20%,15V 56289
196D226X0015KA1
C2117 290-0519-00 B010435
CAP.,FXD,ELCTLT:100UF,20%,20V 90201
TDC107M020WLD
C2139
283-0178-00
CAP.,FXD,CER DI:0.1UF,+80-20%,100V 72982 8131N145 E 1042
CR6
152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA
07910 1N4152
REV. F AP R IL 1978
7-13
