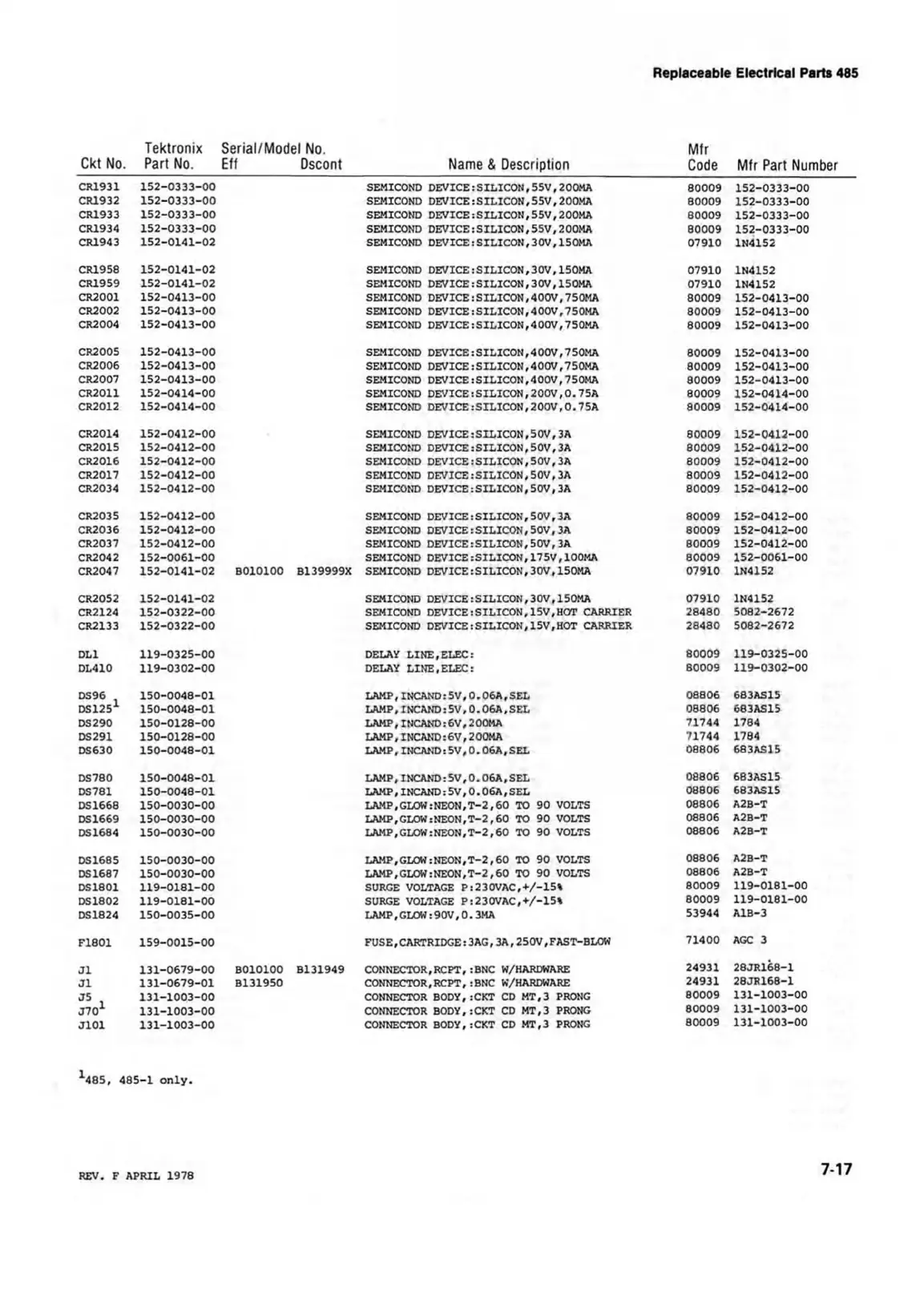

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code
Mfr Part Number
CR1931 152-0333-00
SEMICOND DEVICE:SILICON,55V,200MA
80009 152-0333-00
CR1932
152-0333-00 SEMICOND DEVICE:SILICON,55V,200MA
80009
152-0333-00
CR1933 152-0333-00
SEMICOND DEVICE:SILICON,55V,200MA
80009 152-0333-00
CR1934
152-0333-00 SEMICOND DEVICE:SILICON,55V,200MA
80009
152-0333-00
CR1943
152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA
07910
1N4152
CR1958 152-0141-02 SEMICOND DEVICE:SILICON,30V, 150MA
07910 1N4152
CR1959 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA
07910 1N4152
CR2001
152-0413-00
SEMICOND DEVICE:SILICON,400V,750MA
80009 152-0413-00
CR2002 152-0413-00
SEMICOND DEVICE:SILICON,400V,750MA
80009 152-0413-00
CR2004 152-0413-00
SEMICOND DEVICE:SILICON,400V,7S0MA
80009
152-0413-00
CR2005
152-0413-00
SEMICOND DEVICE:SILICON,400V,7SOMA
80009
152-0413-00
CR2006
152-0413-00 SEMICOND DEVICE:SILICON,400V,7SOMA
80009 152-0413-00
CR2007
152-0413-00 SEMICOND DEVICE: SILICON, 400V, 750MA
80009
152-0413-00
CR2011 152-0414-00 SEMICOND DEVICE:SILICON,200V,0.75A
80009 152-0414-00
CR2012
152-0414-00 SEMICOND DEVICE:SILICON,200V,0.75A
80009
152-0414-00
CR2014
152-0412-00 SEMICOND DEVICE :SILICON,50V, 3A
80009 152-0412-00
CR2015
152-0412-00 SEMICOND DEVICE:SILICON,50V,3A
80009 152-0412-00
CR2016
152-0412-00
SEMICOND DEVICE:SILICON,SOV,3A
80009 152-0412-00
CR2017
152-0412-00
SEMICOND DEVICE:SILICON,50V,3A
80009 152-0412-00
CR2034
152-0412-00
SEMICOND DEVICE:SILICON,50V, 3A
80009 152-0412-00
CR2035
152-0412-00 SEMICOND DEVICE:SILICON, 50V, 3A
80009 152-0412-00
CR2036
152-0412-00 SEMICOND DEVICE:SILICON,50V,3A
80009 152-0412-00
CR2037
152-0412-00
SEMICOND DEVICE:SILICON,50V,3A
80009
152-0412-00
CR2042 152-0061-00
SEMICOND DEVICE:SILICON,17 5V,100MA 80009 152-0061-00
CR2047
152-0141-02
B010100
B139999X
SEMICOND DEVICE:SILICON,30V, 150MA
07910
1N4152
CR2052
152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA
07910 1N4152
CR2124 152-0322-00
SEMICOND DEVICE: S ILICON , 15V, HOT CARRIER 28480 5082-2672
CR2133 152-0322-00
SEMICOND DEVICE : S ILICON ,15V, HOT CARRIER 28480
5082-2672
DL1 119-0325-00 DELAY LINE,ELEC:
80009 119-0325-00
DL410 119-0302-00 DELAY LINE,ELEC:
80009 119-0302-00
DS96
150-0048-01
LAMP, INCAND: 5V, 0.06A, SEL
08806 683AS15
DS1251
150-0048-01 LAMP, INCAND: 5V, 0.06A, SEL
08806 683AS15
DS290 150-0128-00
LAMP, INCAND: 6V , 200MA
71744 1784
DS291
150-0128-00
LAMP, INCAND: 6V , 2 OOMA
71744
1784
DS630
150-0048-01 LAMP, INCAND: 5V, 0.06A, SEL
08806
683AS15
DS780 150-0048-01 LAMP, INCAND: 5V, 0.06A, SEL
08806 683AS15
DS781
150-0048-01 LAMP , INCAND: 5V, 0.06A , SEL
08806
683AS15
DS1668 150-0030-00
LAMP,GLOW:NEON,T-2,60 TO 90 VOLTS
08806 A2B-T
DS1669 150-0030-00
LAMP,GLOW:NEON,T—2,60 TO 90 VOLTS
08806 A2B-T
DS1684 150-0030-00
LAMP, GLOW: NEON, T—2,60 TO 90 VOLTS
08806 A2B-T
DS1685 150-0030-00
LAMP,GLOW:NEON,T-2,60 TO 90 VOLTS
08806 A2B-T
DS1687 150-0030-00
LAMP,GLOW:NEON,T-2,60 TO 90 VOLTS
08806 A2B-T
DS1801
119-0181-00
SURGE VOLTAGE P:230VAC,+/-15»
80009
119-0181-00
DS1802
119-0181-00
SURGE VOLTAGE P:230VAC,+/-15%
80009 119-0181-00
DS1824 150-0035-00
LAMP,GLOW:90V,0.3MA
53944 A1B-3
F1801 159-0015-00
FUSE,CARTRIDGE:3AG,3A,250V,FAST-BLOW
71400 AGC 3
J1
131-0679-00
B010100 B131949 CONNECTOR, RCPT, :BNC W/HARDWARE
24931 28JR168-1
J1 131-0679-01
B131950 CONNECTOR,RCPT,:BNC W/HARDWARE
24931
28JR168-1
JS .
131-1003-00
CONNECTOR BODY,:CKT CD MT,3 PRONG
80009
131-1003-00
J70
131-1003-00
CONNECTOR BODY,:CKT CD MT,3 PRONG
80009
131-1003-00
J101
131-1003-00
CONNECTOR BODY,:CKT CD MT,3 PRONG
80009
131-1003-00
X485, 485-1 only.
REV. F A PRI L 1978
7-17
