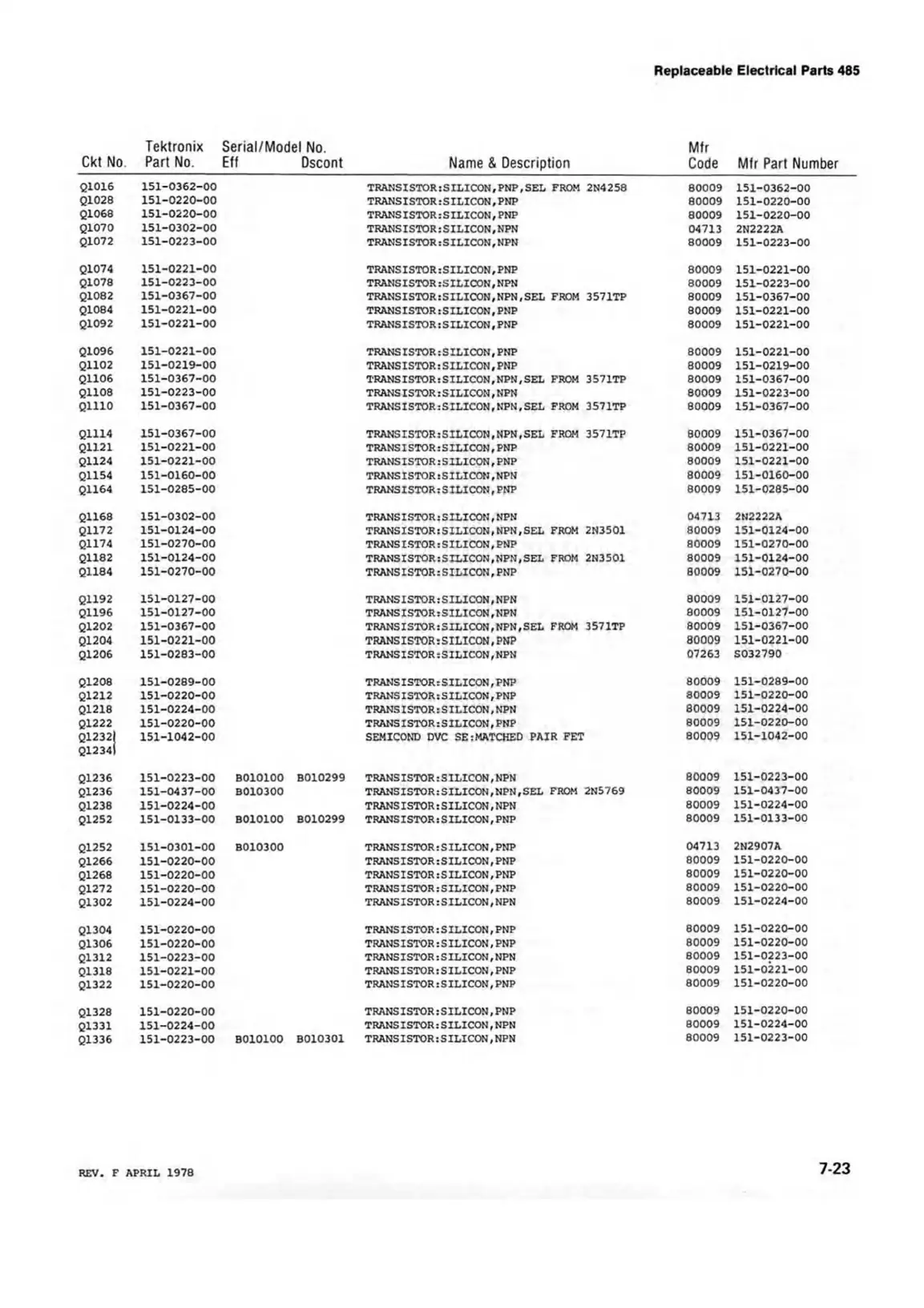

Replaceable Electrical Parts 485
Tektronix Serial/Model No. Mfr
Ckt No Part No.
Eff
Dscont
Name & Description
Code Mfr Part Number
Q1016
151-0362-00
TRANSISTOR:SILICON, PNP, SEL FROM 2N4258
80009 151-0362-00
Q1028
151-0220-00
TRANSISTOR:SILICON,PNP 80009
151-0220-00
Q1068
151-0220-00
TRANS ISTOR: SILICON, PNP
80009 151-0220-00
Q1070
151-0302-00
TRANSISTOR:SILICON,NPN
04713
2N2222A
Q1072
151-0223-00
TRANSISTOR:SILICON,NPN
80009
151-0223-00
Q1074 151-0221-00
TRANSISTOR:SILICON,PNP 80009 151-0221-00
Q1078 151-0223-00
TRANS ISTOR :S ILICON , NPN
80009 151-0223-00
Q1082 151-0367-00
TRANSISTOR:SILICON,NPN,SEL FROM 3571TP 80009
151-0367-00
Q1084 151-0221-00
TRANSISTOR:SILICON,PNP
80009 151-0221-00
Q1092 151-0221-00
TRANSISTOR:SILICON,PNP
80009 151-0221-00
Q1096 151-0221-00
TRANSISTOR:SILICON,PNP
80009
151-0221-00
Q1102 151-0219-00
TRANSISTOR:SILICON,PNP 80009 151-0219-00
Q1106 151-0367-00
TRANSISTOR:SILICON,NPN,SEL FROM 3571TP 80009
151-0367-00
Q1108 151-0223-00 TRANSISTOR:SILICON,NPN
80009 151-0223-00
QlllO 151-0367-00
TRANSISTOR:SILICON,NPN,SEL FROM 3571TP
80009 151-0367-00
Q1114
151-0367-00
TRANS ISTOR: SILICON, NPN, SEL FROM 3571TP 80009
151-0367-00
Q1121
151-0221-00
TRANSISTOR:SILICON,PNP 80009
151-0221-00
Q1124 151-0221-00
TRANSISTOR:SILICON,PNP
80009 151-0221-00
Q1154
151-0160-00
TRANSISTOR:SILICON,NPN 80009 151-0160-00
Q1164 151-0285-00
TRANSISTOR:SILICON,PNP
80009 151-0285-00
Q1168
151-0302-00
TRANSISTOR:SILICON,NPN 04713 2N2222A
Q U 7 2
151-0124-00
TRANSISTOR: SILICON, NPN, SEL FROM
2N3501 80009 151-0124-00
Q1174 151-0270-00
TRANSISTOR:SILICON,PNP
80009 151-0270-00
Q1182
151-0124-00 TRANSISTOR:SILICON,NPN,SEL FROM 2N3501 80009 151-0124-00
Q1184 151-0270-00
TRANSISTOR: S ILICON, PNP
80009
151-0270-00
Q1192 151-0127-00
TRANS I STOR: S ILICON, NPN
80009
151-0127-00
Q1196 151-0127-00
TRANS ISTOR: S ILICON, NPN
80009 151-0127-00
Q1202
151-0367-00
TRANS ISTOR: SILICON, NPN, SEL FROM
3571TP 80009
151-0367-00
Q1204
151-0221-00
TRANSISTOR: SILICON, PNP
80009
151-0221-00
Q1206 151-0283-00
TRANSISTOR:SILICON,NPN
07263
S032790
Q1208 151-0289-00
TRANSISTOR:SILICON,PNP
80009
151-0289-00
Q1212
151-0220-00
TRANSISTOR:SILICON,PNP
80009 151-0220-00
Q1218 151-0224-00 TRANSISTOR:SILICON,NPN
80009
151-0224-00
Q 12 22 151-0220-00
TRANSISTOR:SILICON,PNP
80009
151-0220-00
Q1232) 151-1042-00
SEMICOND DVC SE:MATCHED PAIR FET
80009 151-1042-00
Q1234I
Q1236 151-0223-00 B010100
B010299
TRANSISTOR:SILICON,NPN
80009
151-0223-00
Q1236 151-0437-00 B010300
TRANSISTOR:SILICON,NPN,SEL FROM
2NS769 80009
151-0437-00
Q1238
151-0224-00
TRANSISTOR:SILICON,NPN
80009 151-0224-00
Q1252 151-0133-00 B010100
B010299
TRANSISTOR: SILICON, PNP
80009
151-0133-00
Q1252
151-0301-00 B010300 TRANSISTOR:SILICON,PNP
04713
2N2907A
Q1266 151-0220-00
TRANSISTOR:SILICON,PNP
80009 151-0220-00
Q1268 151-0220-00
TRANSISTOR:SILICON,PNP
80009
151-0220-00
Q1272 151-0220-00
TRANSISTOR:SILICON,PNP
80009
151-0220-00
Q1302 151-0224-00
TRANSISTOR:SILICON,NPN
80009
151-0224-00
Q1304 151-0220-00
TRANSISTOR:SILICON,PNP
80009
151-0220-00
Q1306
151-0220-00
TRANSISTOR:SILICON,PNP
80009 151-0220-00
Q1312
151-0223-00
TRANSISTOR:SILICON,NPN
80009 151-0223-00
Q1318 151-0221-00
TRANSISTOR:SILICON,PNP
80009 151-0221-00
Q1322
151-0220-00
TRANS I STOR: S ILICON, PNP
80009
151-0220-00
Q1328
151-0220-00
TRANSISTOR:SILICON,PNP
80009
151-0220-00
Q1331
151-0224-00
TRANSISTOR:SILICON,NPN
80009
151-0224-00
Q1336
151-0223-00 B010100
B010301
TRANSISTOR:SILICON,NPN
80009
151-0223-00
REV. F A P R IL 1978
