Theory of operation

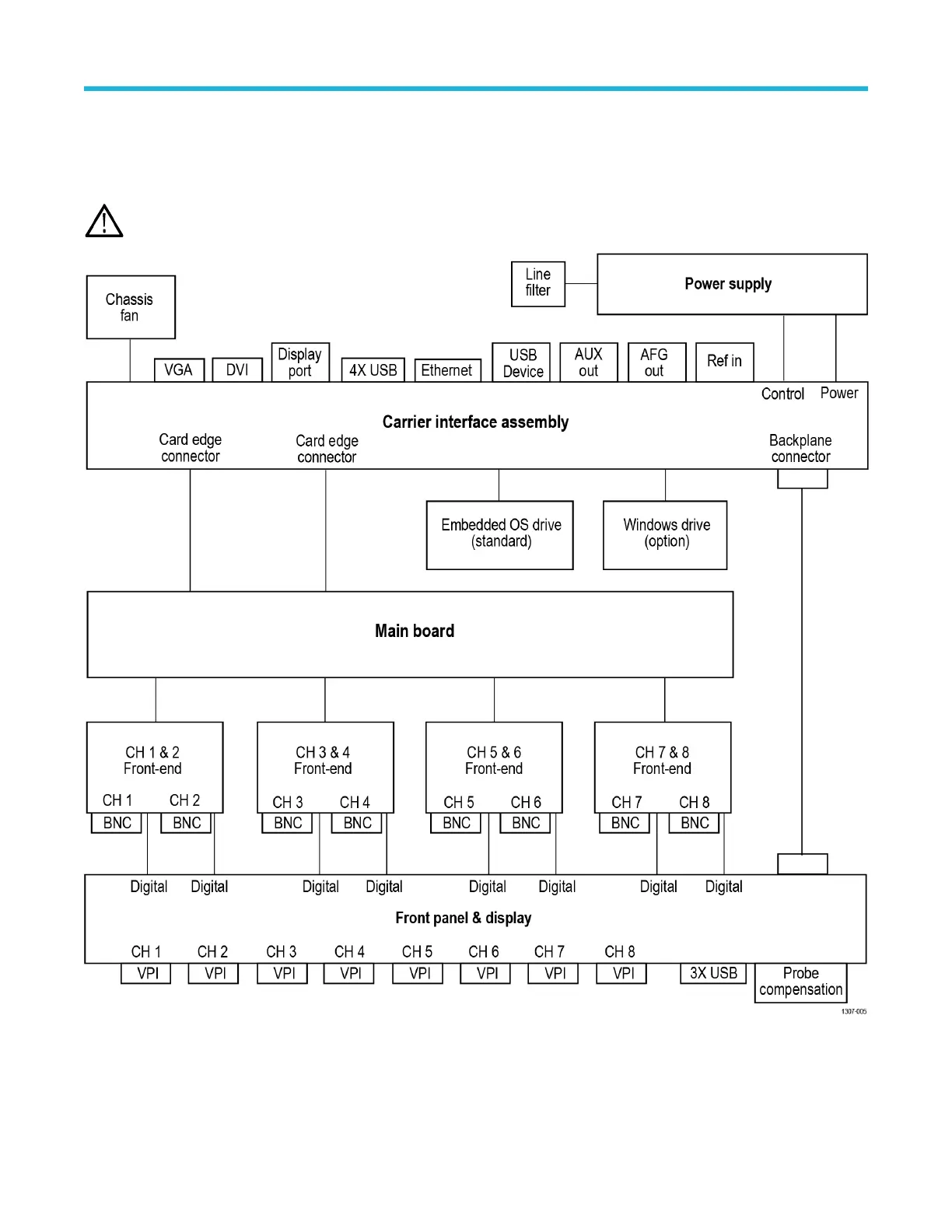

Block diagram
This chapter describes the electrical operation of the oscilloscope to the module level. The block diagram shows the oscilloscope module
interconnections.
Note: A removable Embedded OS drive comes standard on instruments with a serial number of B020000 and above or C040000
and above.
Theory of operation
5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 12
