Carrier interface board and rear chassis

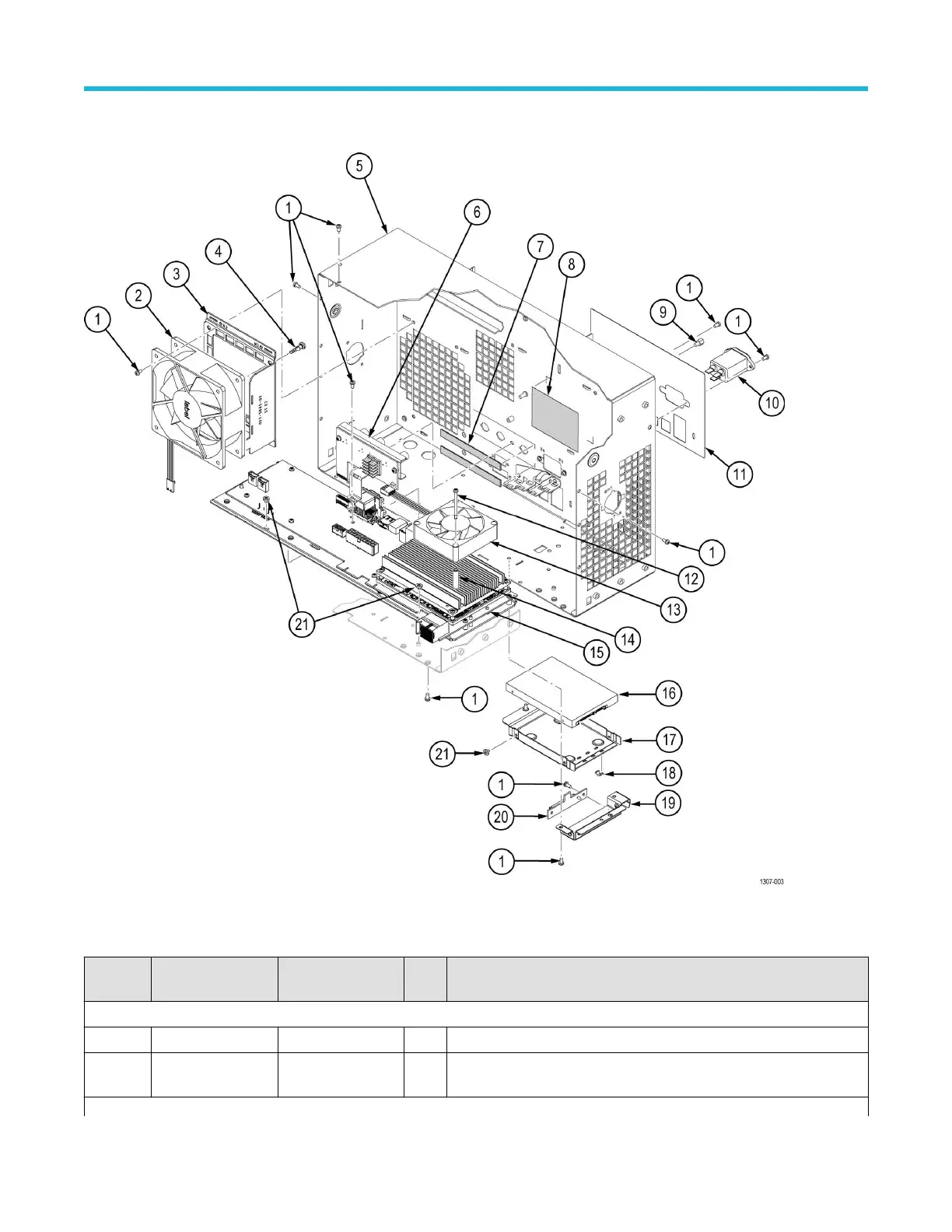

Figure 4: Carrier interface board and rear chassis exploded view
Table 7: Carrier interface board and rear chassis
Index
number
Tektronix part
number
Serial no. effective Qty Name & description
Figure 4 on page
39
-1 211-1584-XX 20 SCREW, MACHINE, M3 X 0.5 X 6MM PAN HEAD, TORX T10
-2 119-8641-XX 1 FAN ASSEMBLY,119864200 W / TERMINATION, SAFETY
CONTROLLED
-3 407-5865-XX 1 BRKT, 120MM X 38MM FAN, SAFETY CONTROLLED
-4 348-2082-XX 4 GROMMET, FAN MOUNT, NOISE DAMPING
Table continued…
Replaceable parts
5 Series Mixed Signal Oscilloscope MSO54, MSO56, MSO58 Service Manual 39
