Tektronix AFG3011

Operating basics
Arbitrary Waveform Edit
Example 2
The following e
xample shows how to edit a waveform by data point. In this
example, you can add a noise spike to the sine waveform.

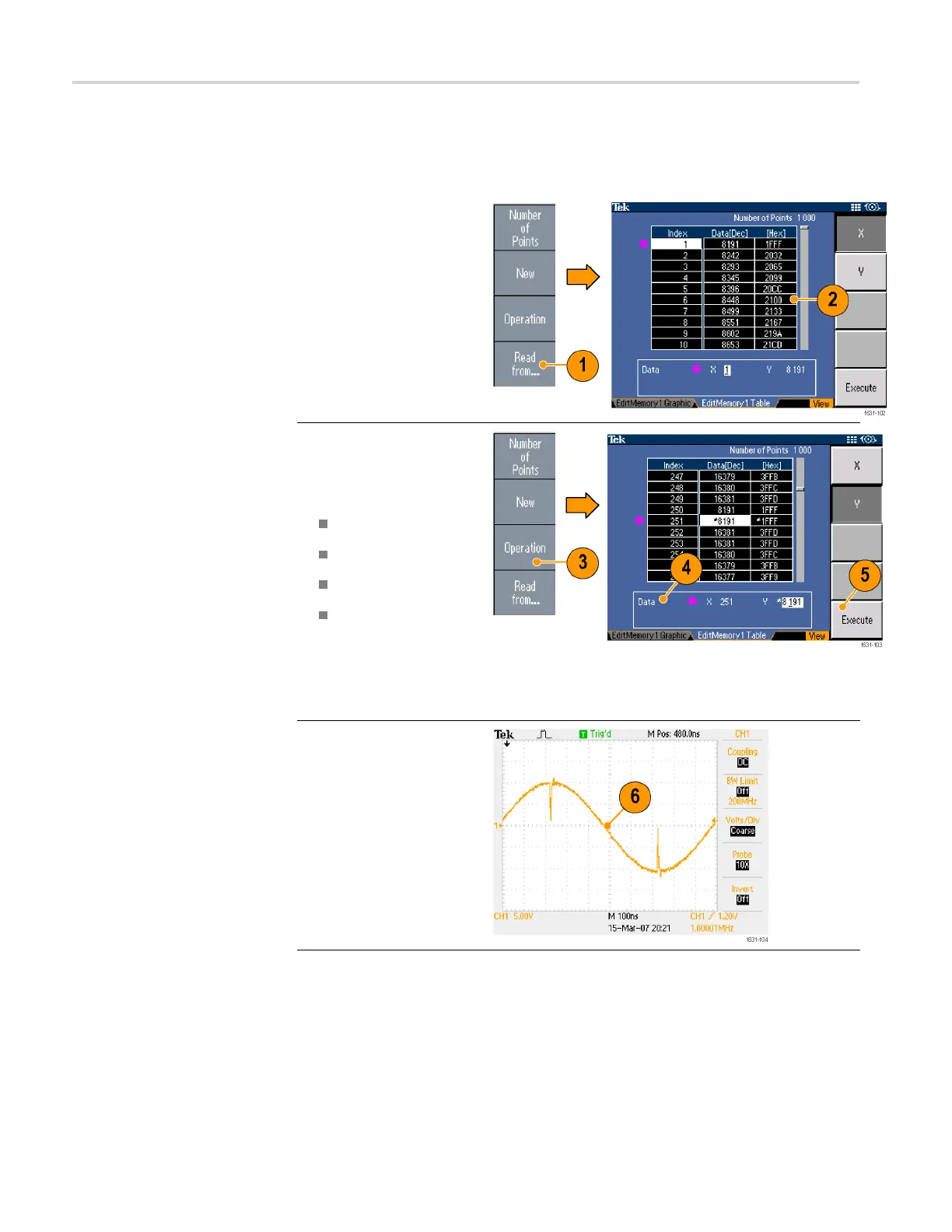

1. Push Read from... and
select User1.
2. Push the front-panel
View button to change
the screen to Table
display.
3. Push Operation and
select Data.
4. Perform the following
data point edit:
X: 250, Y: 8191
X: 251, Y: 8191
X: 750, Y: 8191
X: 751, Y: 8191
5. After each data edit,
push Execute to
implement the edit
operation. Save this
waveform to User3.
6. This is an example of an
oscilloscope screen for
the U ser3 waveform.
