Acquire the Signal
To set up bus parameters:

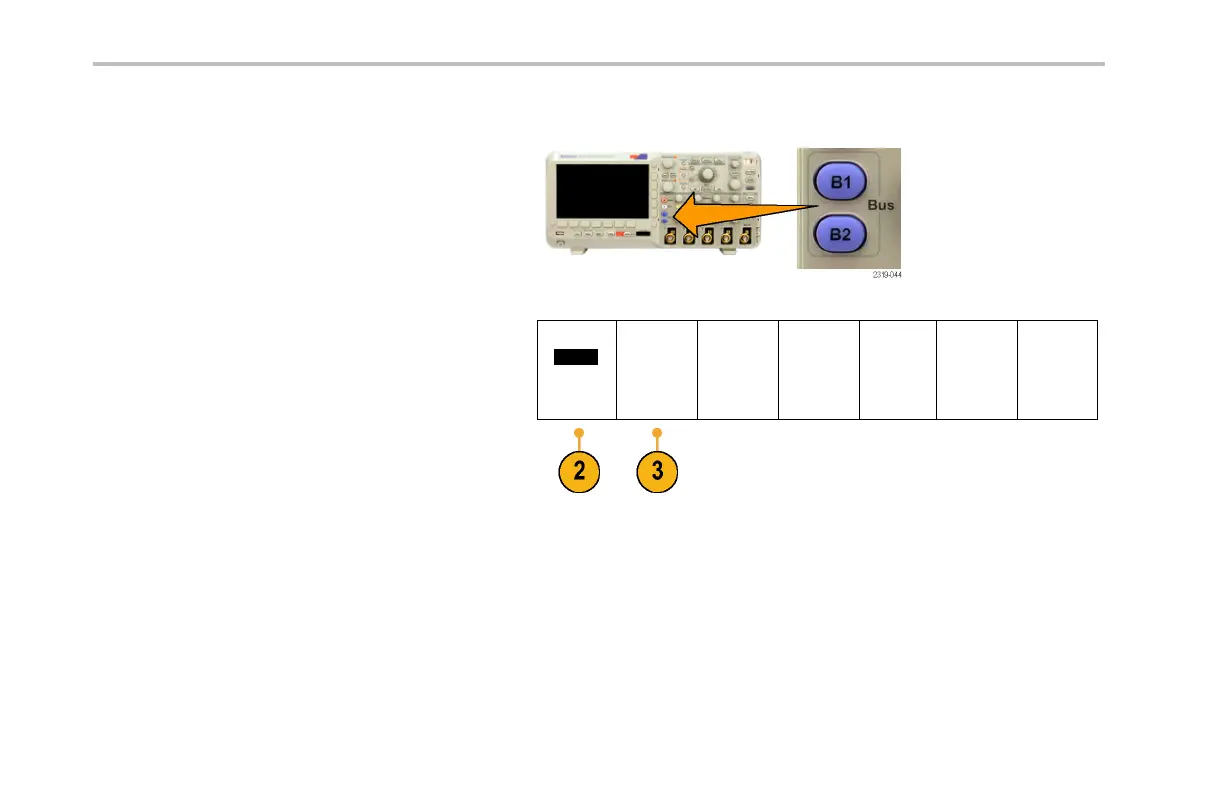

1. Push B1 or B2 to bring up t he lower-bezel bus
menu.
2. Push Bus. Turn multipurpose knob a to scroll
through the list of bus types and s elect the
desired bus: Parallel (MSO2000 series only),
I
2
C, SPI, CAN, RS-232, or LIN.
B1
Parallel
Define
Inputs
Thresholds B1 Label
Parallel
Bus Display Event Table
The actual menu item s shown will depend on
your model oscilloscope and the application
modules installed.
3. Push Define Inputs. The choices depend on
the selecte d bus.
94 DPO2000 and MSO2000 Series Oscilloscopes User Manual
