Trigger Setu p

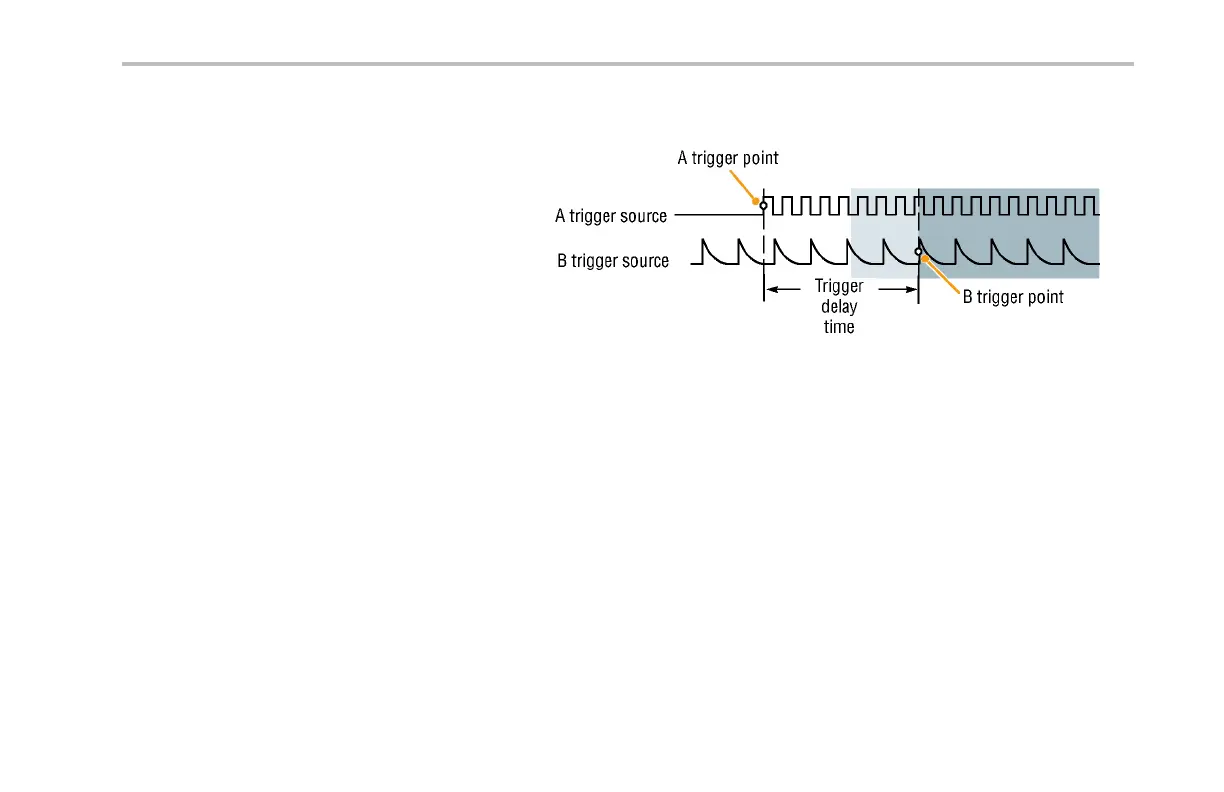

B Trigger After D elay Time
The A trigger arms the instrument. Posttrigger
acquisition starts on th e first B edge after the
trigger delay time.
DPO3000 Series Oscilloscopes User Manua l 133
