Display Waveform Data
Display Waveform Data
This section contains concepts and p rocedu res for displaying the acquired waveform.
Adding and Removing a Waveform

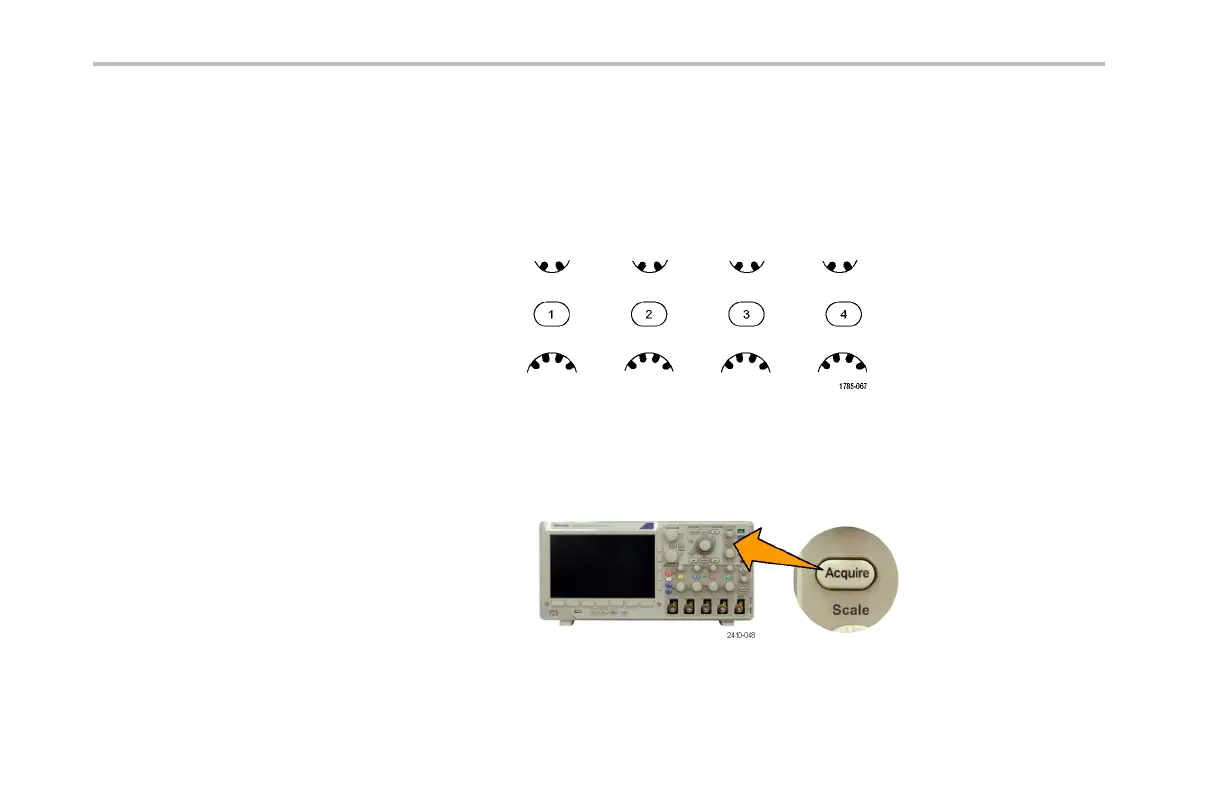

1. To add or remove a waveform from the
display, push the corresponding front-panel
channel b utton.
You can use the channel as a trigge r
source whe ther or not it is displayed.
Setting the Display Style and P ersistence
1. To set the display style, push Acquire.
136 DPO3000 Series Oscilloscopes User Ma nual
