Analyze Waveform Data
NOTE. Math waveforms are not available for use with serial buses.
Use the f ollowing procedure for executing simple (+, – , *, ÷ ) math ope rations on two wavefo rms:

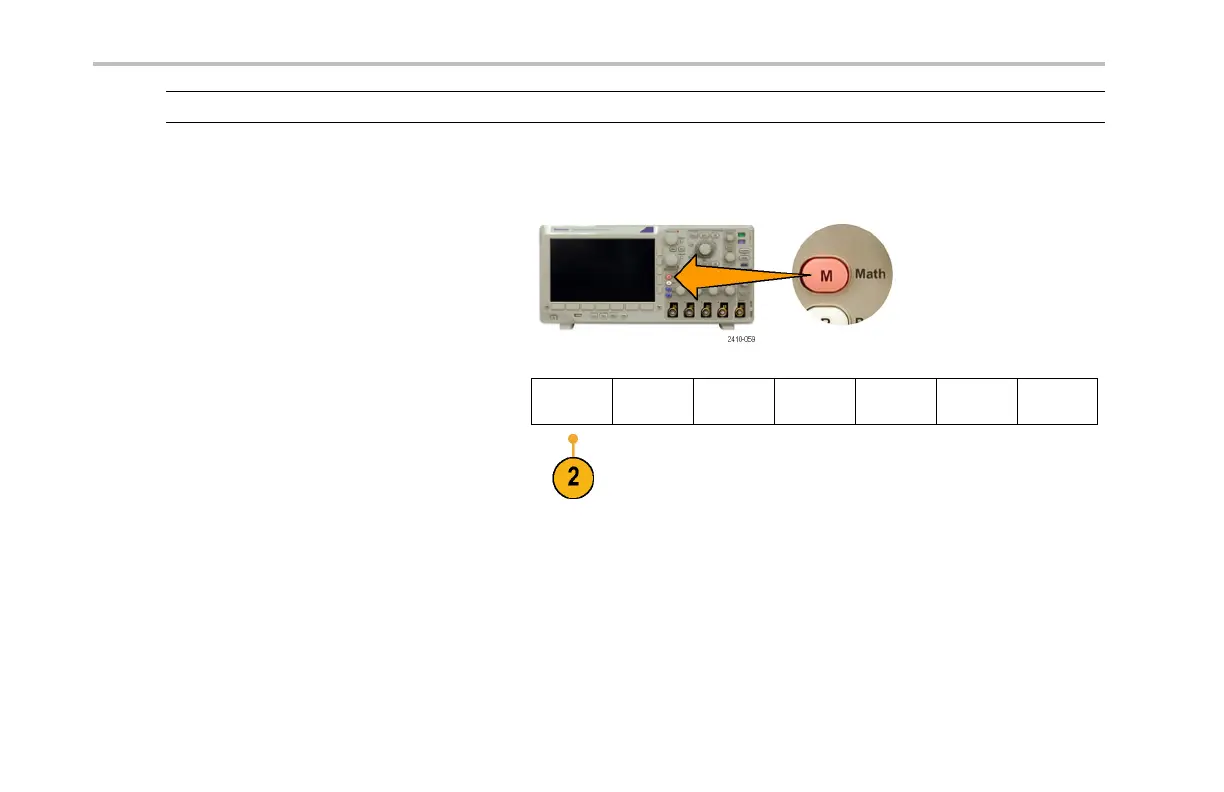

1. Push Math.
2. Push Dual Wfm Math.
Dual Wfm
Math
FFT Advanced
Math
(M) Label
3. On the side-bezel menu , set the sources
to either channel 1, 2, 3 , 4, or reference
waveforms R1, R2, R3,orR4. C hoose the +,
–, x,or÷ operators.
178 DPO3000 Series Oscilloscopes User Ma nual
