Analyze Waveform Data
4. Push Ed it Expression and use the
multipurpose knobs and the resulting
lower-bezel buttons to create an expression.
When done, push the side-bezel me nu OK
Accept butto n.

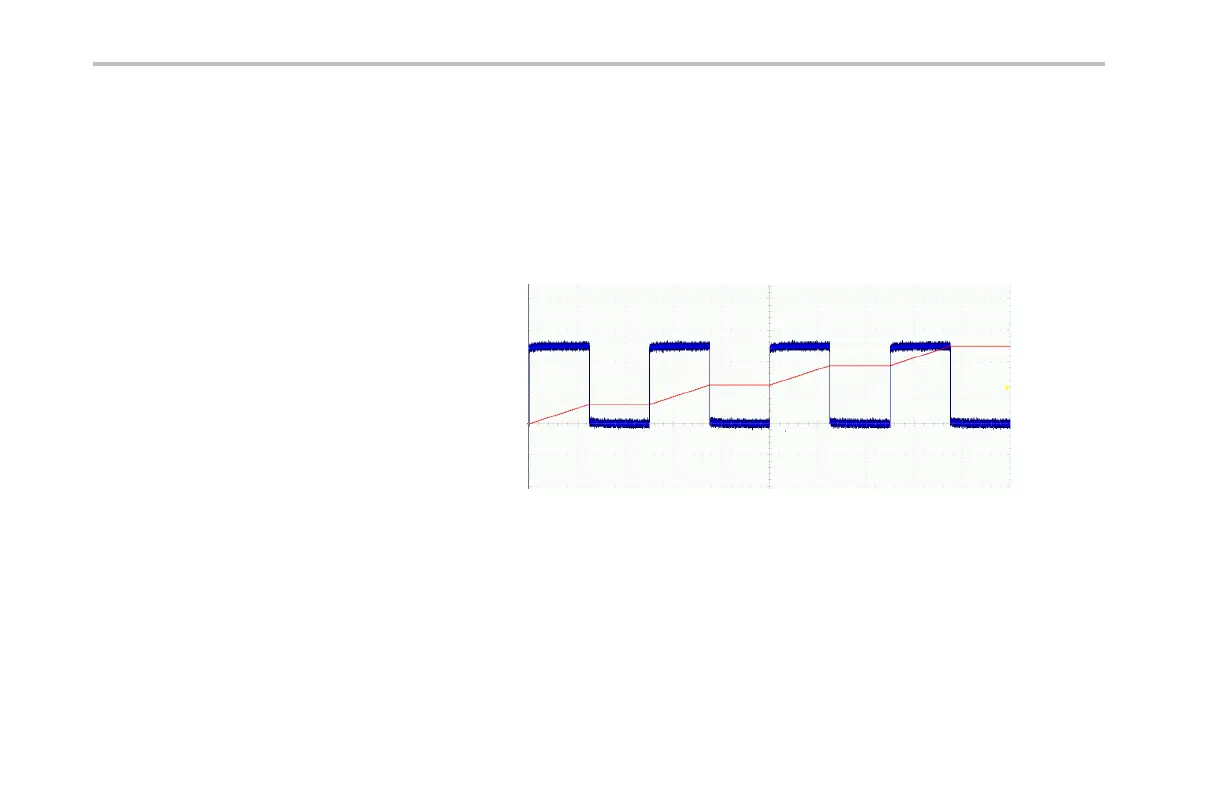

For example, to use Edit Expression to take the integral of a square wave:
1. Push the lower-bezel Clear butto n.
2. Turn multipurpose knob a to select In tg(.
3. Push Enter Selection.
4. Turn multipurpose knob a to select
channel 1.
5. Push Enter Selection.
6. Turn multipu rpose knob a to select ).
7. Push OK Accept.
186 DPO3000 Series Oscilloscopes User Ma nual
