Analyze Waveform Data

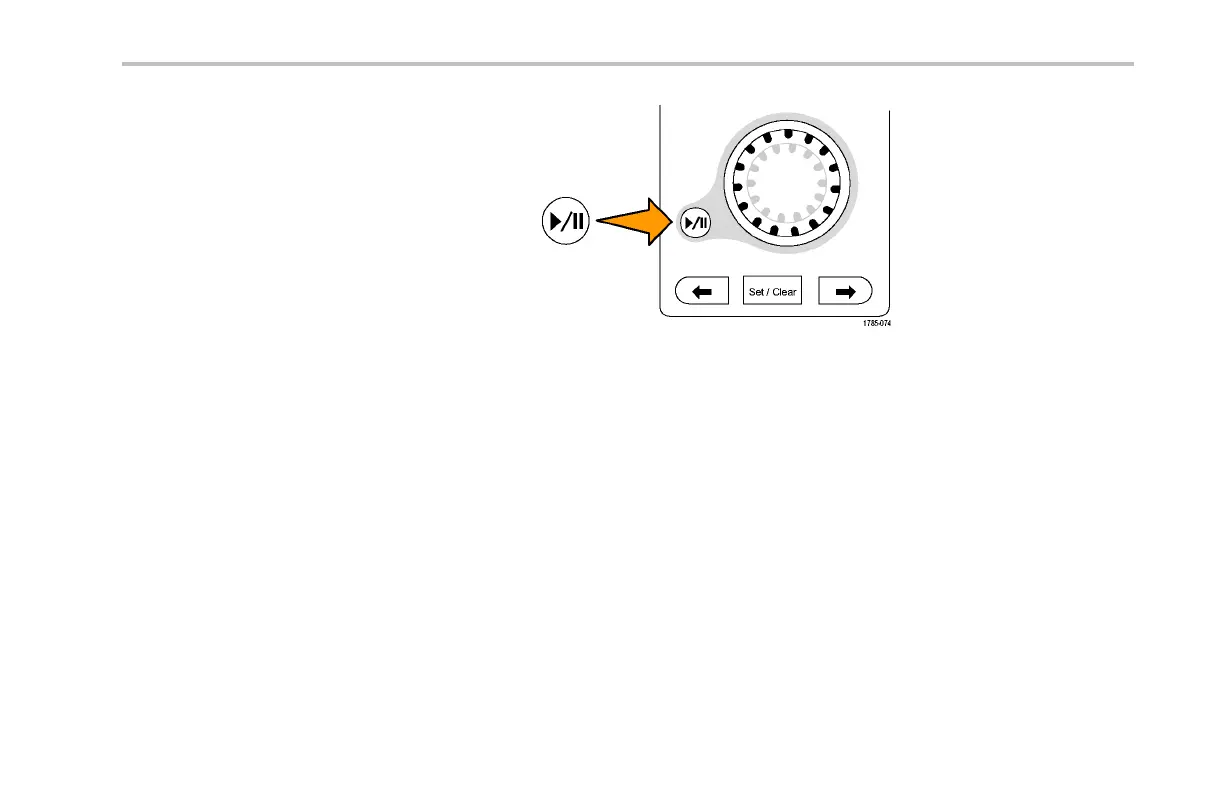

1. Enable the play-pause mode by pushing
the play-pause button.
2. Adjust the p lay speed by turning the pan
(outer) knob further. T he further you turn
it, the faster it goes.
3. Change the play direction by reversing
the direction that you are turning the pan
knob.
4. During play, up to a point, the more you
turn the r ing, the faster the waveform
accelerates. If you rotate the ring as far
as it can go, the play speed does not
change, but the zoom box quickly moves
in that direction. Use this maximum
rotation feature to replay a portion of the
waveform that you just saw and want to
see again.
DPO3000 Series Oscilloscopes User Manua l 193
