Application Examples

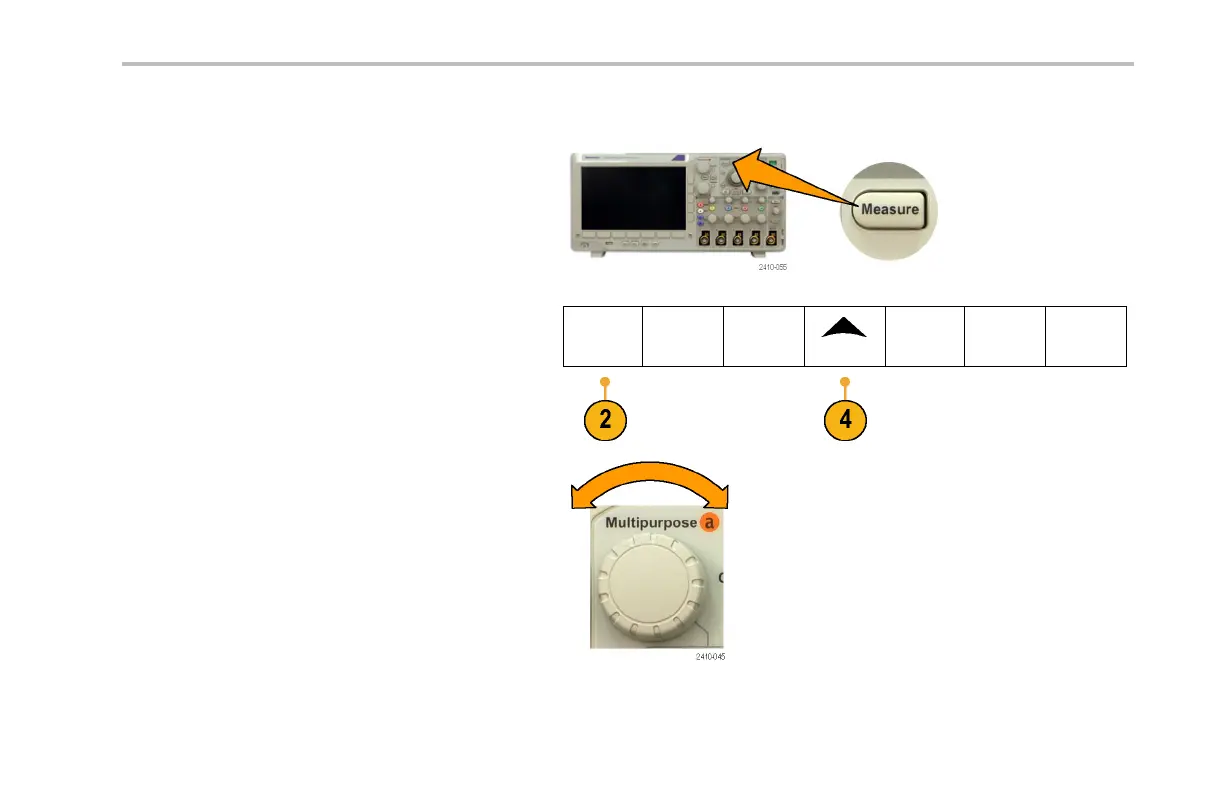

To select the Rise Time measurement:
1. Push Measure.
2. Push Add Measurement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
More
Bring
Cursors On
Screen
Configure
Cursors
3. Turn multipurpose knob a to select the Rise
Time measurement. If needed, press Source
from the side menu and turn mu ltipurpose knob
b to select the channel from which you want to
measure. Push OK Add Measurement from
the side men u.
