Application Examples

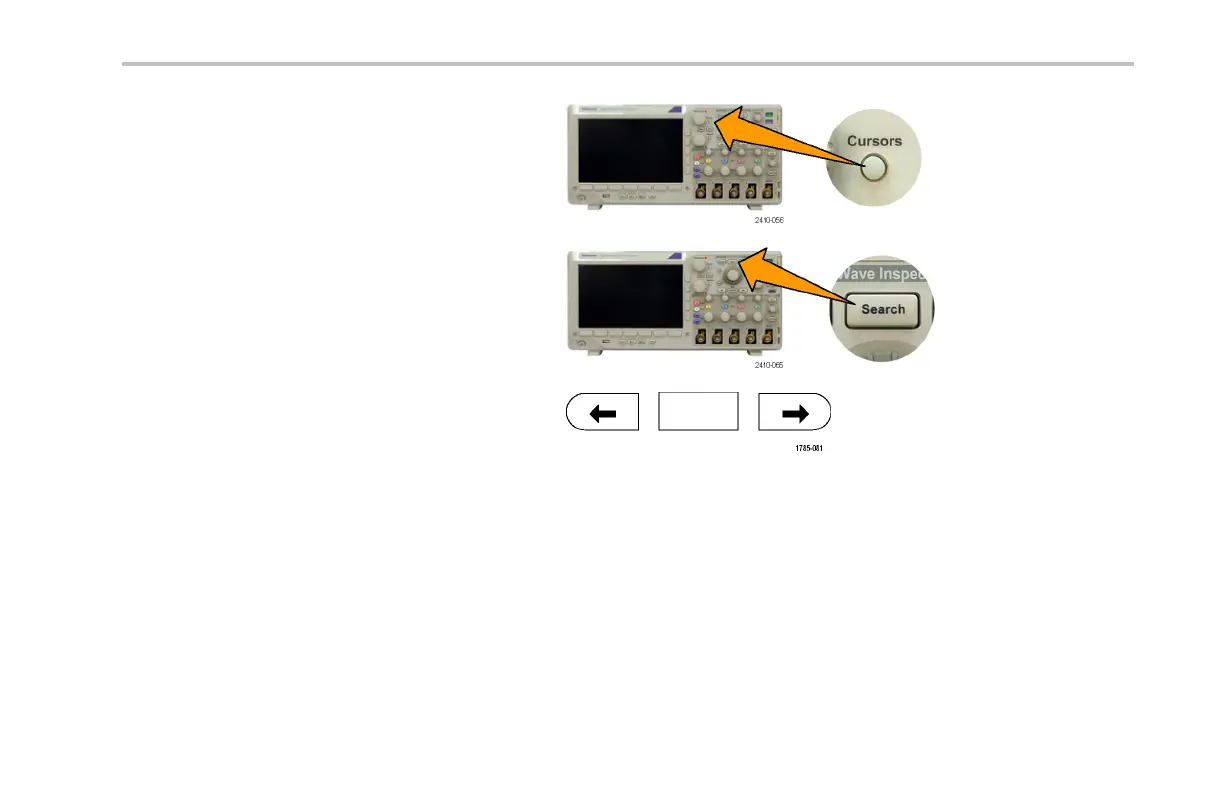

7. Analyze the physical layer. For example, you
can use the cursors for manual measurements.
(See page 171, Taking Manual Measurements
with Cursors.) You can also use t he automated
measurements. (See page 155, Tak in g
Automatic Measurements.)
8. Push Search.SetSearch Marks to On. Enter
a search type, source, and other parameters
as relevant on the lower-bezel menu and
associated side-bezel menus. (See page 189,
Using Wave Inspector to Manag e Long Record
Length Waveforms.)
9. Jump ahead to the next search point by
pushing the right arrow key. Push it again and
again until you see all the events. Jump back
with the left arrow key. D o you have all the
packets that you expected to have? If not, at
least you have narrowed your search down to
the last packet sent.
DPO3000 Series Oscilloscopes User Manua l 267
