Installation

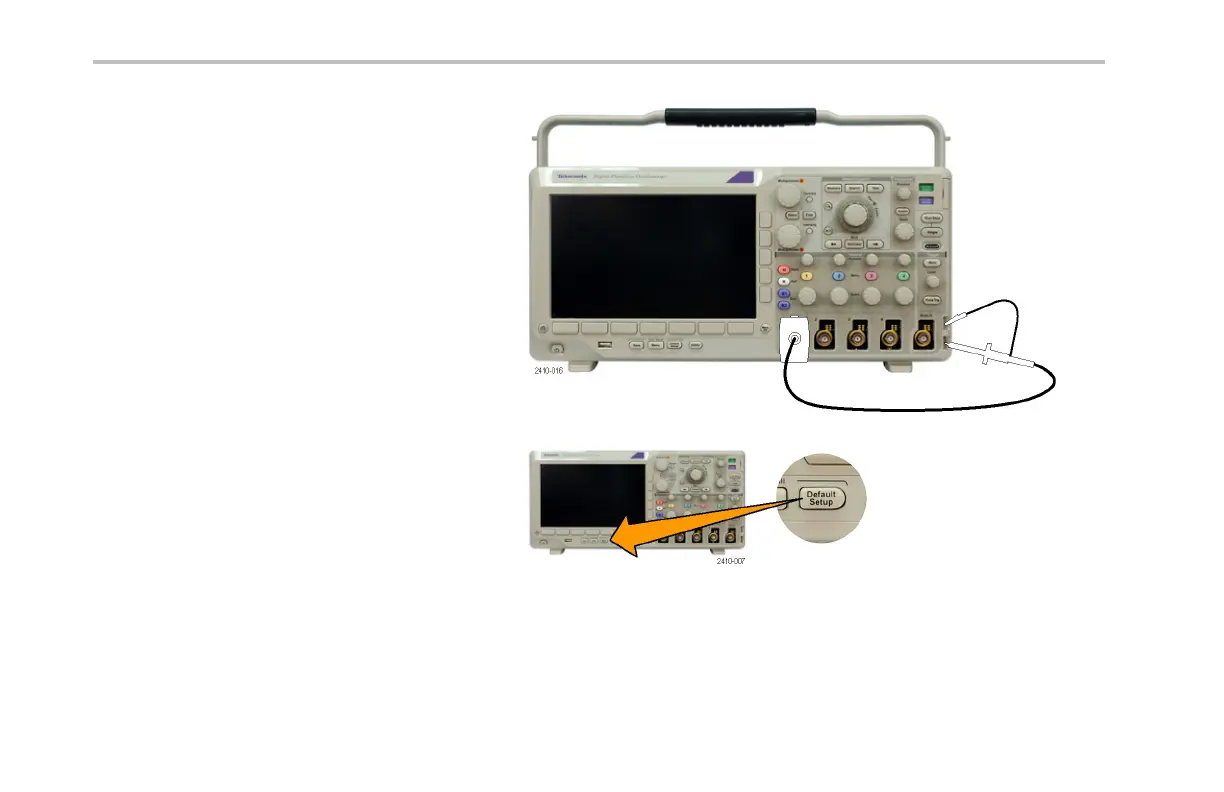

3. Connect the P6139A probe tip and
reference lead to the PROBE COMP
connectors on the oscilloscope.
4. Push Default Setup.
20 DPO3000 Series Oscilloscopes User Ma nual
