Tektronix DPO3034 User Manual

Acquire the Signal

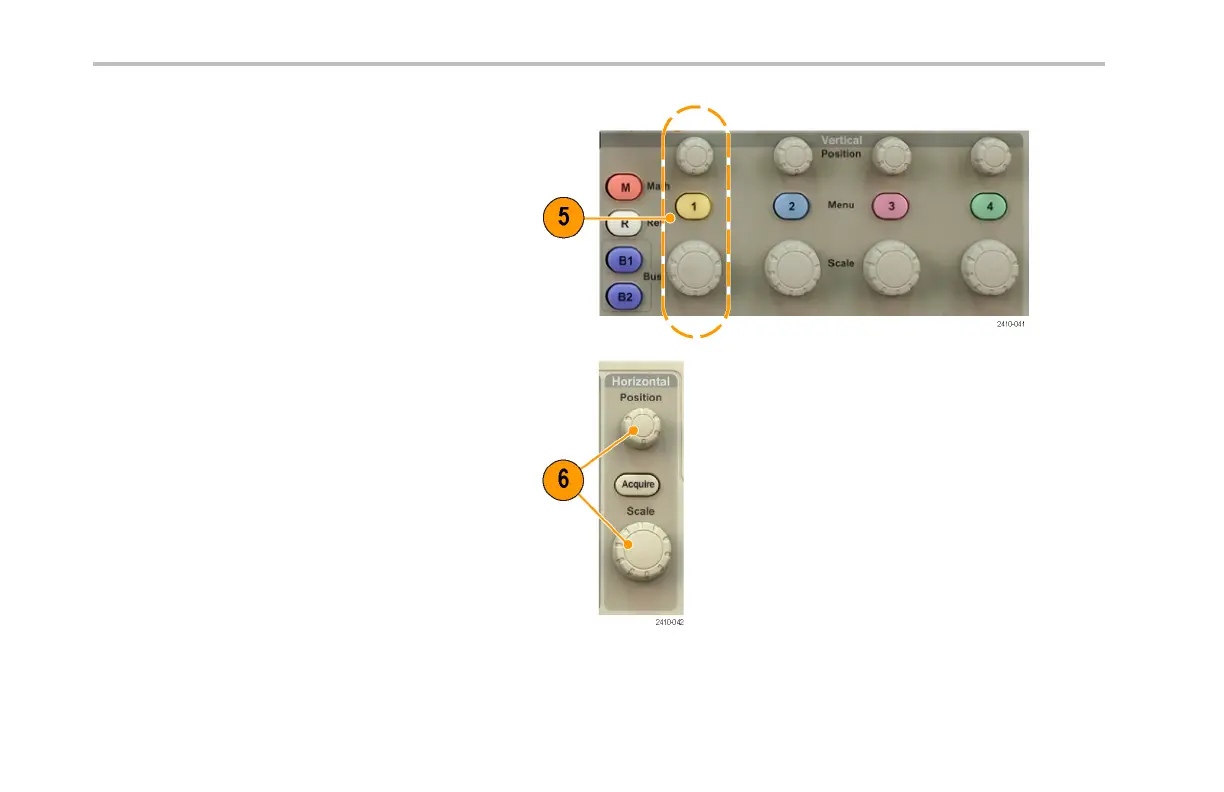

5. Push the desired channel button. Then
adjust the vertical position and scale.
6. Adjust the horizontal position and scale.
The horizontal position determines the
number of pretrigger and posttrigger
samples.
The horizontal scale determines the size
of the acquisition window relative to the
waveform. You can sca le the window to
contain a waveform edge, a cycle, several
cycles, or thousands of cycles.
78 DPO3000 Series Oscilloscopes User Ma nual
