Pinpoint trigge
rs

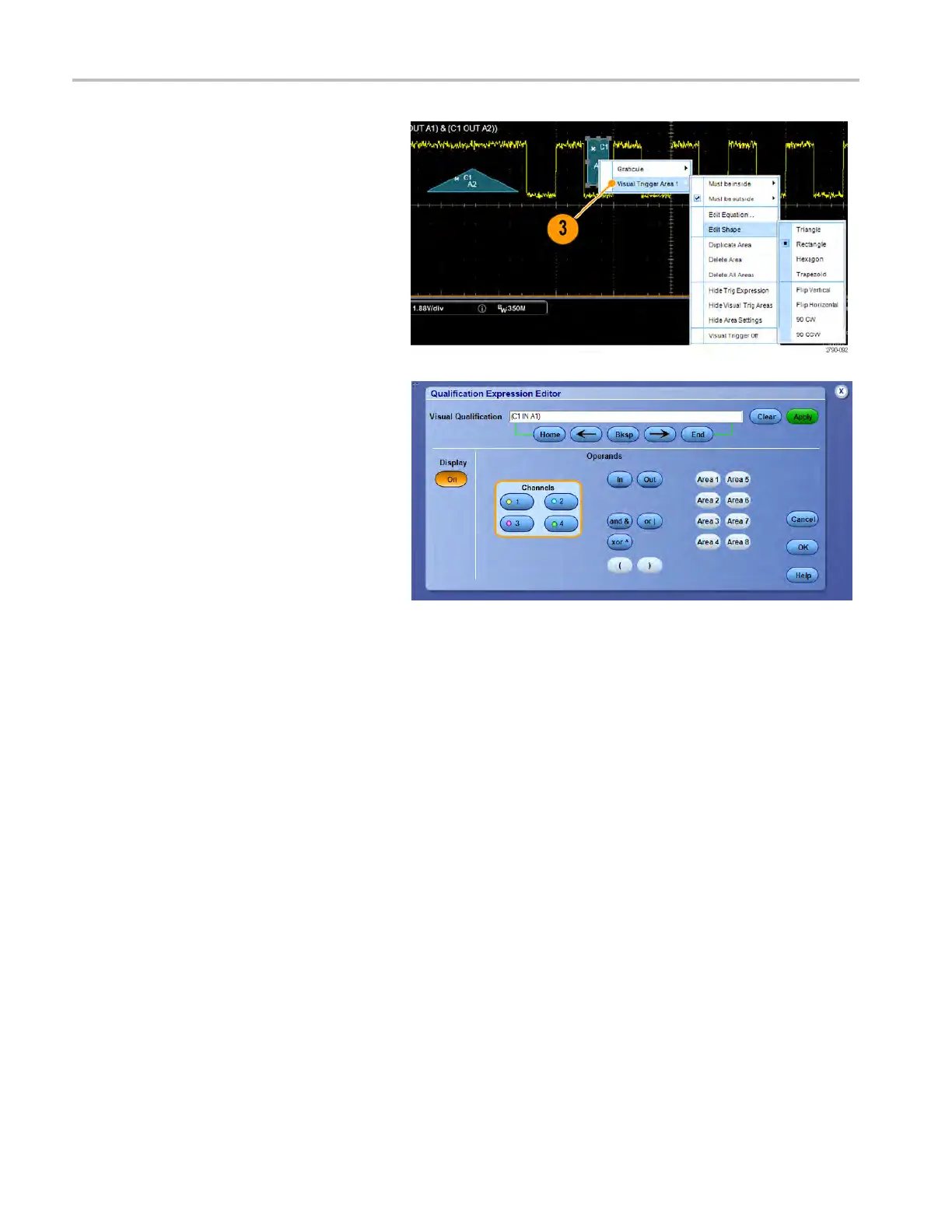

3. Right click in t
he visual trigger area
and select Visual Trigger Area from the
menu.
Use the visual
trigger menus to edit the
trigger area and set conditions for the visual
trigger.
Refer to onli
ne help for detailed information
about creating and editing visual triggers.
4. From the Trig menu, select Visual Trigger
Setup, then double click the Visual
Trigger eq
uation.
Refer to online help for detailed information
about using the Qualification Expression
Editor.
82 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
