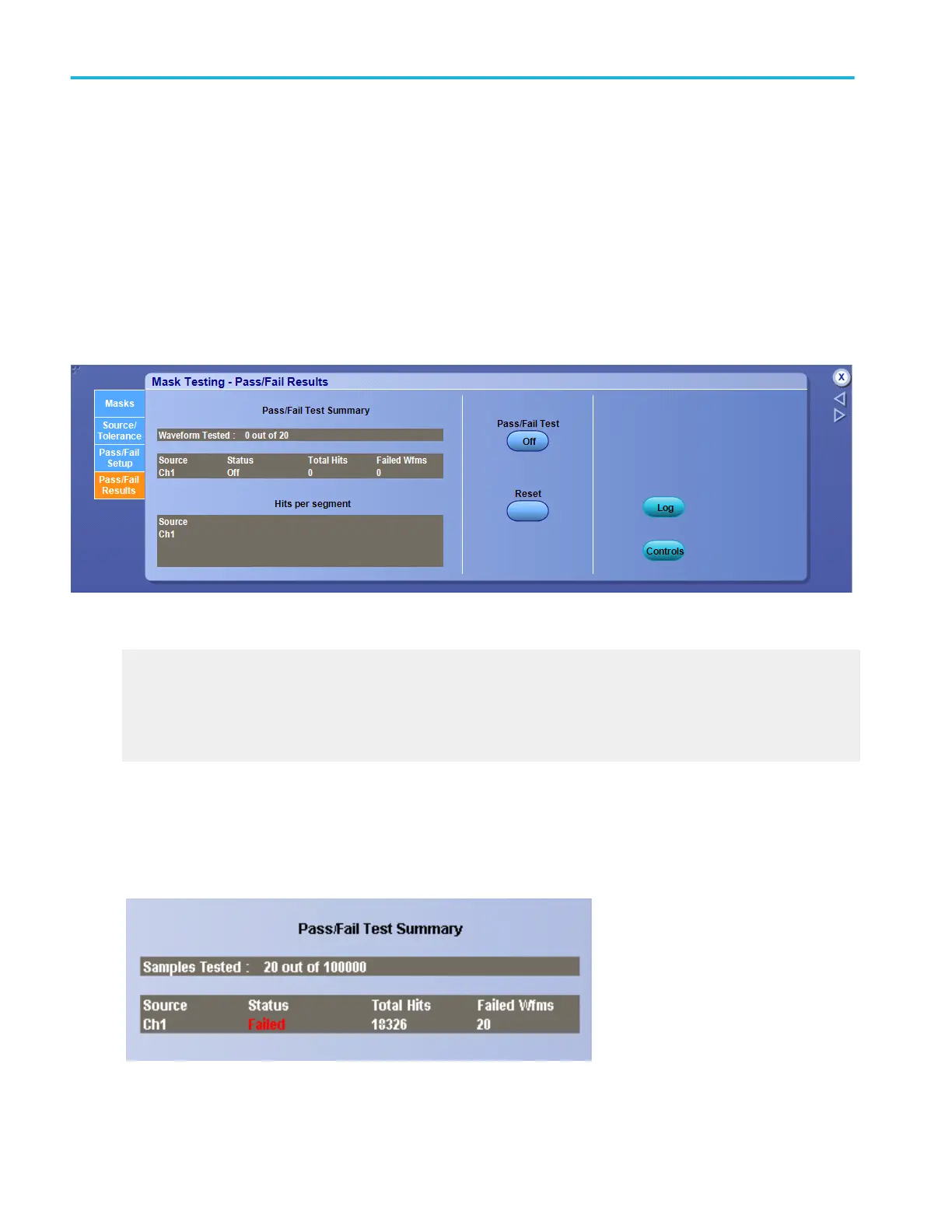

Overview. Use this control window to view real time test results, start the test, reset the test at the beginning, activate the
waveform failure log file, and open the Mask Test Controls control window.
For information on the controls, click the buttons.
■
Test Summary
■
Hits Per Segment
■
Pass / Fail Test
■
Controls
What do you want to do next?
Learn about test summary.
Learn about hits per segment.
Learn about the Mask Test Controls window.
Go to the Test Setup control window.
View the mask test summary
From the Mask menu, select Pass/Fail Results.
Overview. Use this window to view real time test results.
To use. The Pass/Fail Test Summary is a read only field.
Mask testing setups
234 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
