Tektronix DPO5104B

Set up a CAN bus trigger
NOTE. The Bus Trigger Control Window for CAN Serial option is available only on instruments with option SR-AUTO.
From the Trigger menu, select Bus setup.

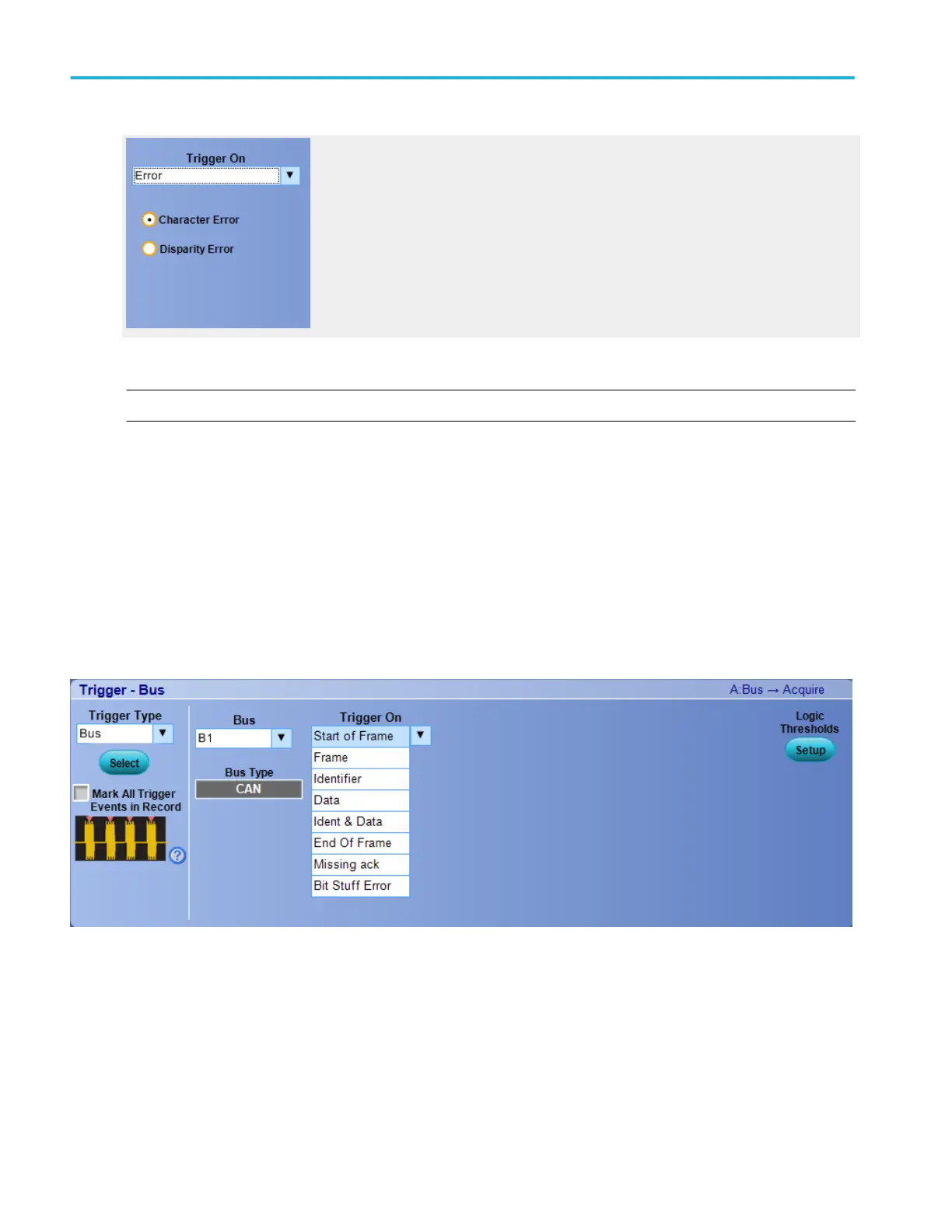

Overview. Use the controls to set up the CAN Bus parameters.
To use. For information on the controls, click the buttons.
■
Trigger Type
■
Mark All Trigger Events
■
Bus
■
Logic Thresholds
Trigger setups
398 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
