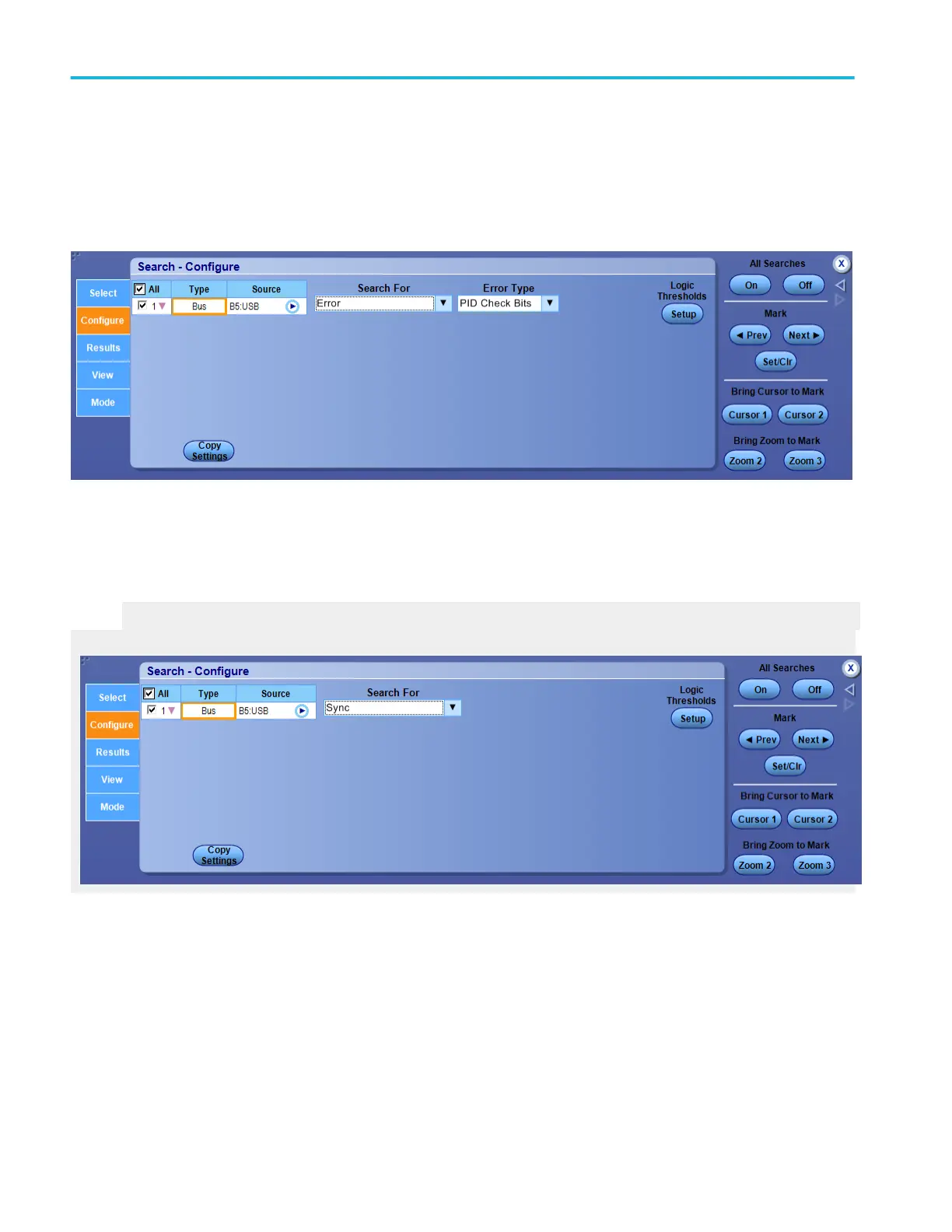

For some Search For selections, you must set additional fields to define other parameters such as for a Error.

In this example, you need to set an Error Type. Optionally, you can also set the component threshold levels through the

Logic Thresholds Setup button.

Click the Search For selections Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet,

Handshake Packet, Special Packet, or Error to view their parameters.

What do you want to do next?

Learn about bus setups.

Search for sync

Analyzing waveforms
