Tektronix DPO5104B

To use. Select the A->B Seq tab to use the A Event (main) trigger with the B Event trigger to capture complex data.
For information on the controls, click the buttons.
■
Trigger Summary
■
A Only
■
A -> B Trig after Time
■
A -> B Trig on nth Event
■
Horizontal Delay Mode
■
A -> B Seq (Delay)
■
Counter Measurements

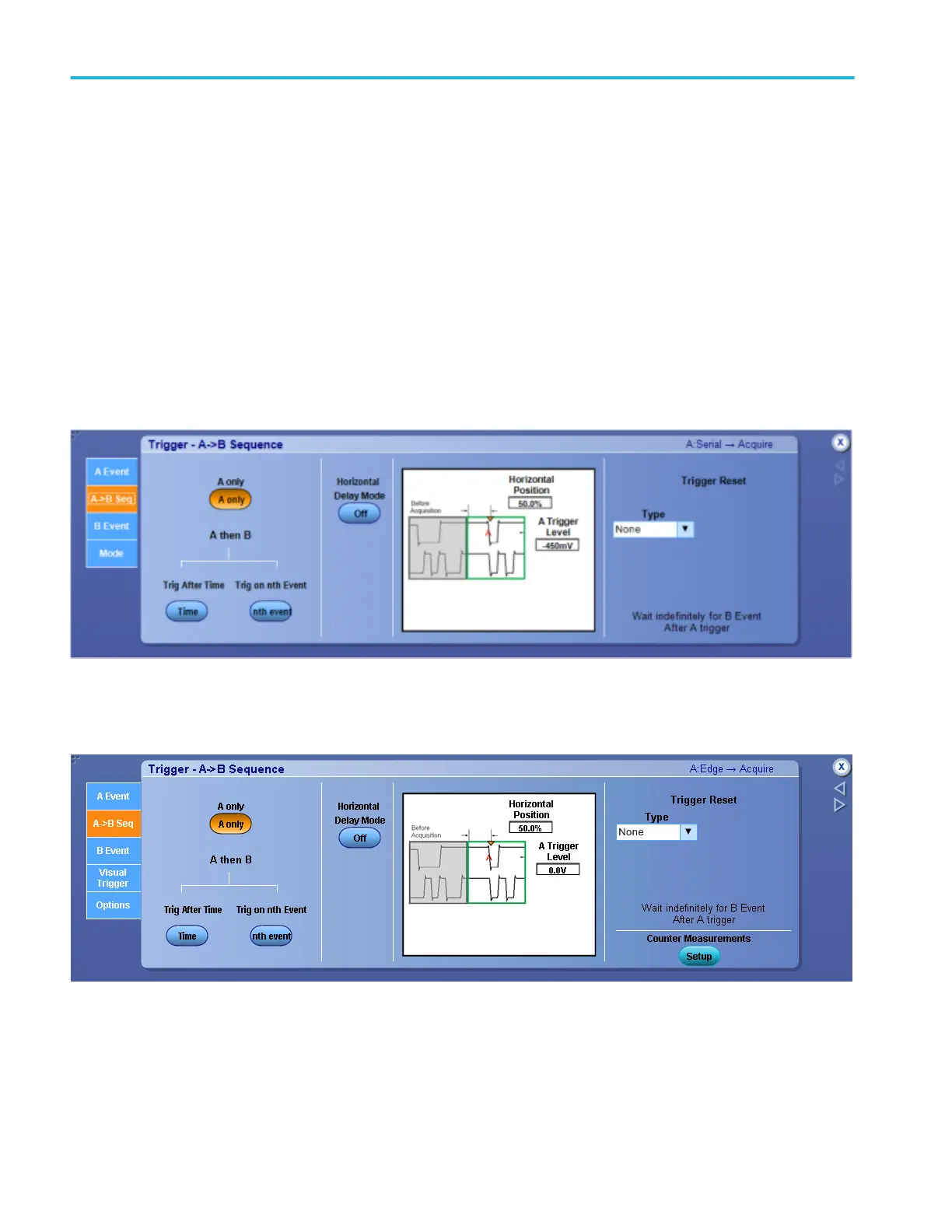

The following screen appears on DPO70000SX Series instruments:
The following screen appears on MSO/DPO5000B Series instruments:
Trigger setups
442 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
