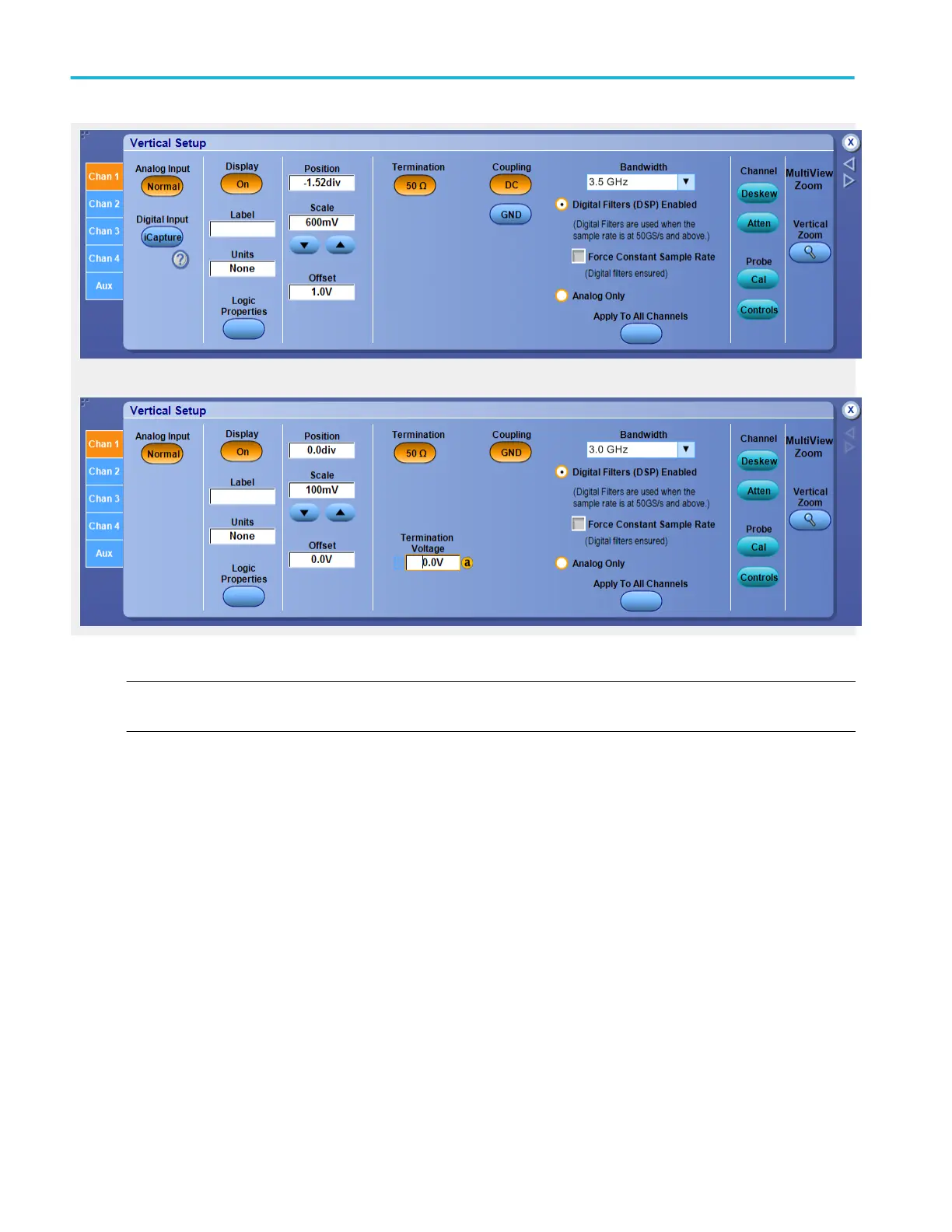

The following screen shows the Termination Voltage control that appears on MSO/DPO70000DX/SX Series instruments:

For information on the Vertical Setup controls, click the links.

NOTE. iCapture is available only on MSO70000C/DX Series instruments and DPO70000DX instruments with option MSOU

installed. Termination Voltage is available only on MSO/DPO70000DX/SX Series instruments.

■

Input Setup

■

iCapture Setup

■

Viewing the Analog Characteristics of a Digital Signal

■

Logic Properties

■

Display & Label

■

Position & Scale

■

Offset

■

Termination

■

Termination Voltage

■

Coupling

■

Bandwidth

■

Probes

■

Vert Zoom

■

Aux Tab

Vertical setups

480 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
