Low. 0% (lowest) voltage reference value calculated. See High Low
Using the min-max measurement technique:
Low = Min
Maximum. Amplitude (voltage) measurement. The maximum voltage. Typically the most positive peak voltage.
Examine all Waveform[ ] samples from Start to End inclusive, and set Max equal to the greatest magnitude Waveform[ ] value
found.

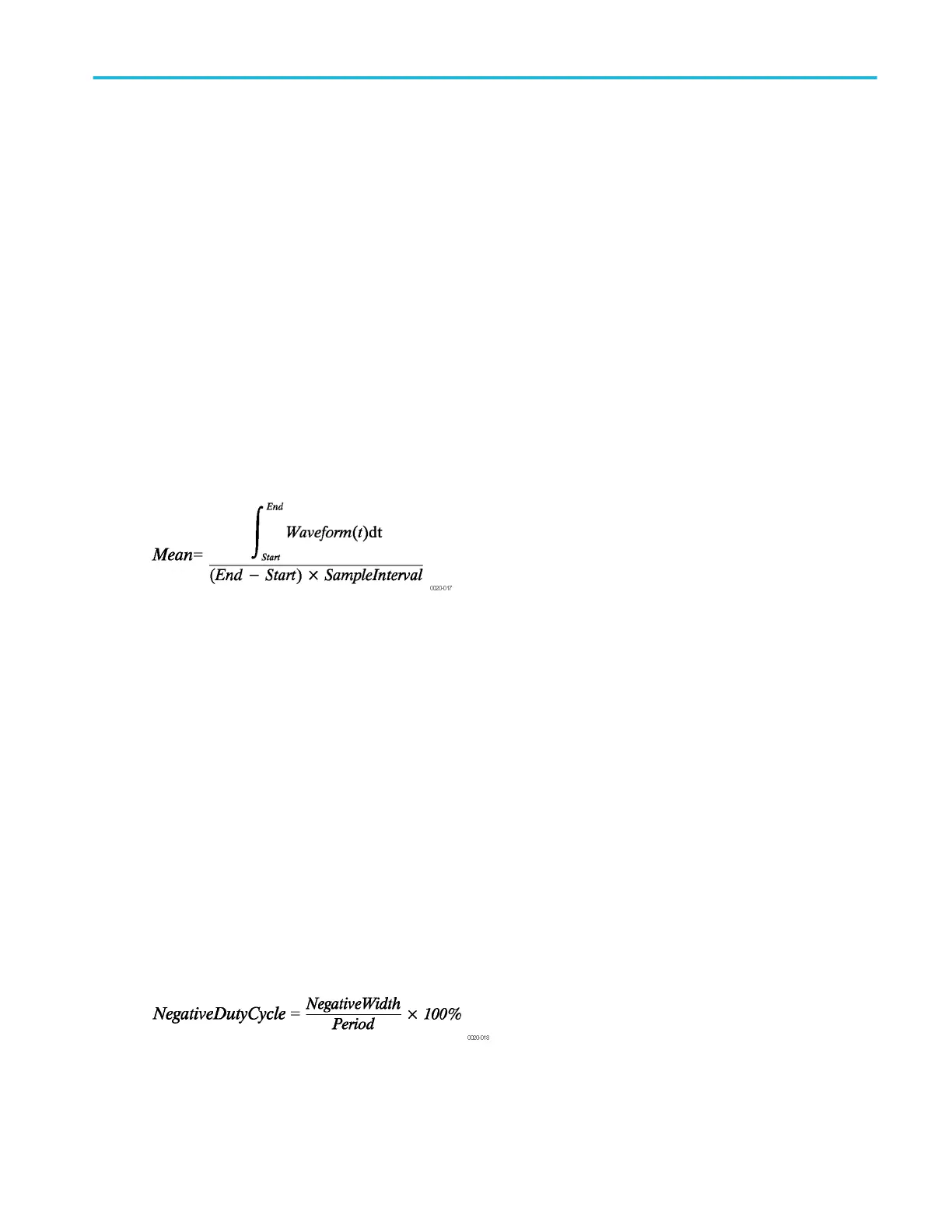

Mean. The arithmetic mean for one waveform. Remember that one waveform is not necessarily equal to one cycle. For cyclical
data you may prefer to use the cycle mean rather than the arithmetic mean.
If Start = End then return the (interpolated) value at Start.
Otherwise,
Details of the integration algorithm are given later. Integration Algorithm
Mean dBm. The normalized mean. If the waveform source is from an optical probe, this can give average optical power.
Mean dBm = 10.0 (log10(Mean / 0.001))
Minimum. Amplitude (voltage) measurement. The minimum amplitude. Typically the most negative peak voltage.
Examine all Waveform[ ] samples from Start to End inclusive, and set Min equal to the smallest magnitude Waveform[ ] value
found.
Negative duty cycle. Timing measurement. The ratio of the negative pulse width to the signal period expressed as a
percentage.
NegativeWidth is defined in Negative Width, below.
If Period = 0 or undefined then return an error.
Oscilloscope reference
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 693
