Application Exa
mples

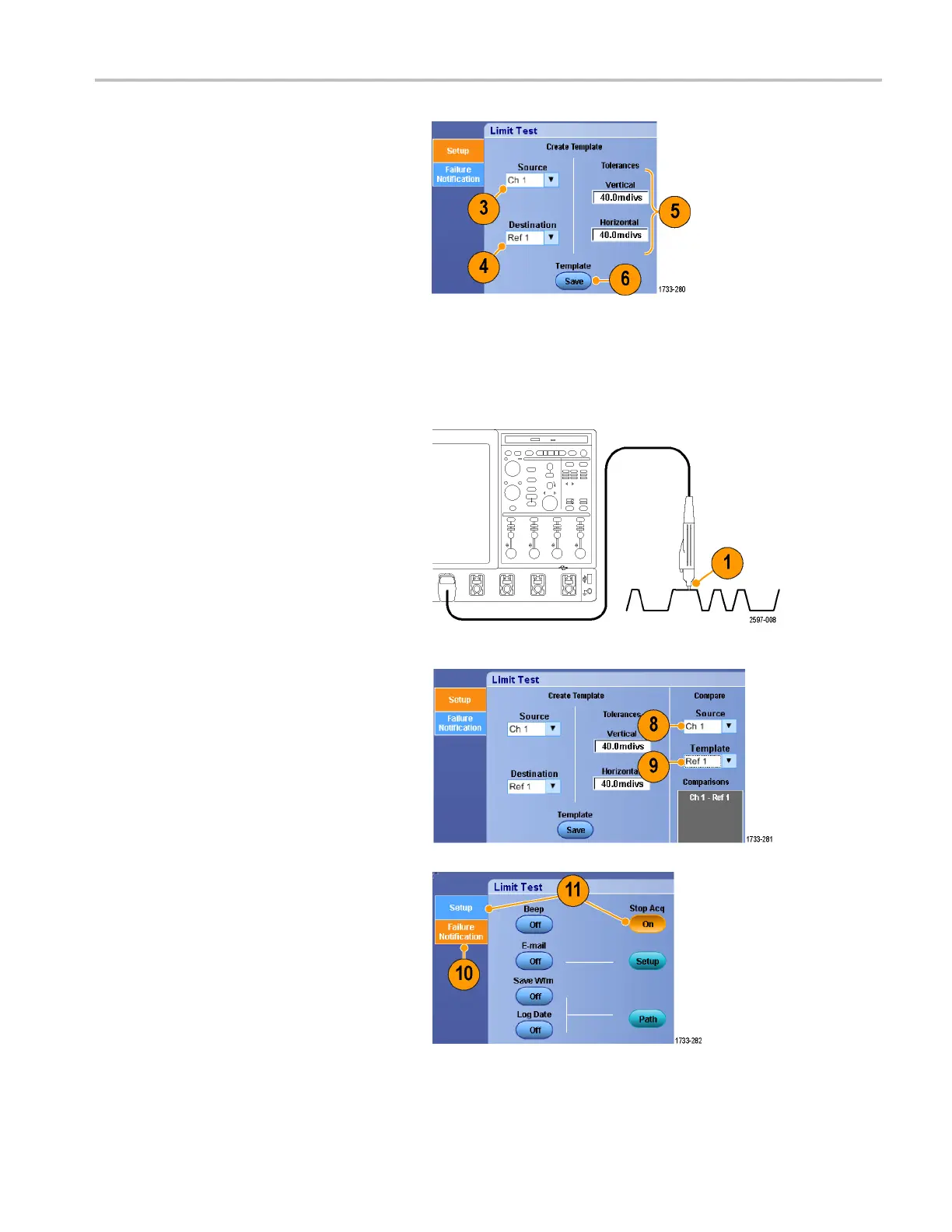

3. From the Source list, select the
channel with the known good reference
waveform.
4. From the Desti
nation list, select where
you want to store the template.
5. Specify how much the DUT can deviate
from the template by entering Vertical
and Horizont
al tolerances.
6. Click Save.
You have created a template
that is a snapshot of the known good
reference with the specified tolerances
built into
it. Notice that the template is
automatically activated after you click
Save.
7. Move your probe from the reference
product t
o the DUT.
≥4GHzmo
dels
8. Select
the source channel that is
connected to the DUT.
9. Select the template that you saved in
step 4.
10. Click Failure Notification to s et up the
Fail
ure Notification.
11. For
this example, click Stop Acq On, and
then click Setup to return to the setup
control window.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 135
