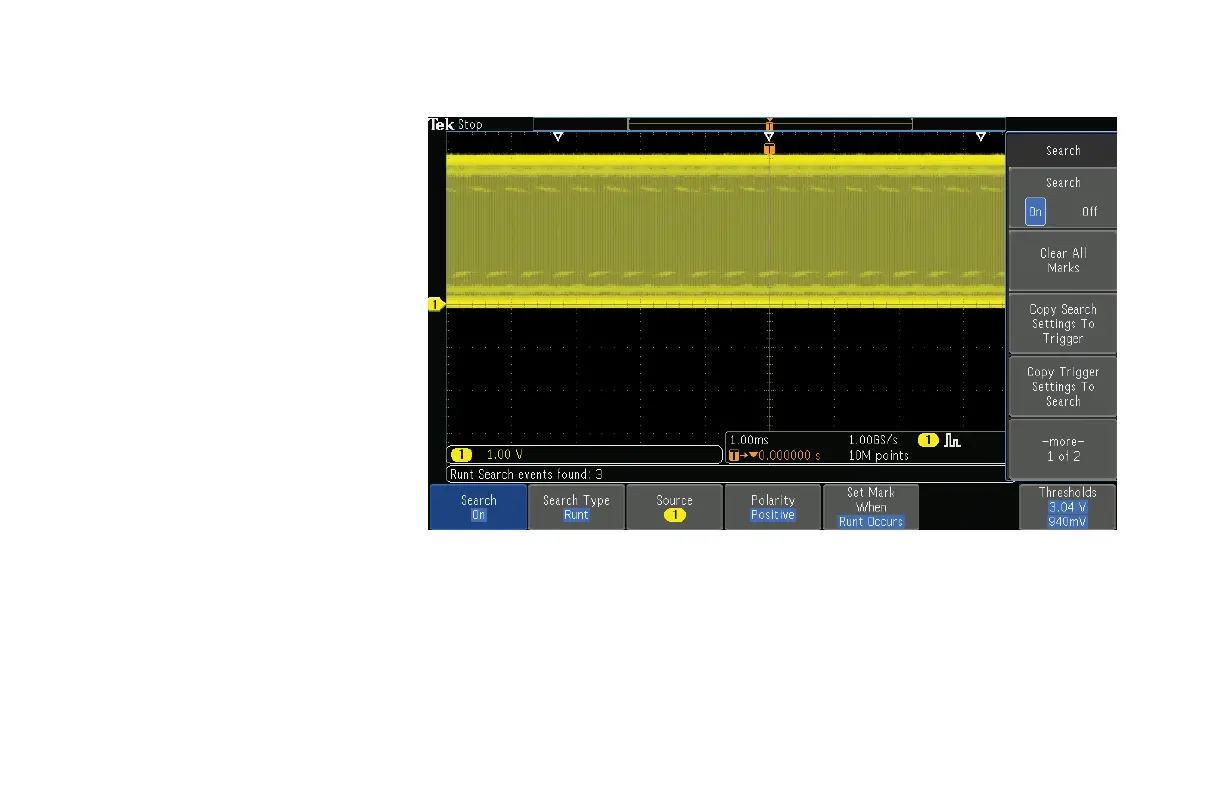

Now all runts in the acquisition that meet
this trigger specification are marked with
a hollow white triangle at the top of the
display. Notice the number of search
events shown in the lower left corner is
three.
13. Press the Menu Off button to remove the
menus.
Figure 10.
www.tektronix.com/mdo300018
MDO3000 Series Oscilloscope
Demonstration Guide
