23. Press the lower-bezel Direction button.
24. Select the side-bezel Write button.
25. Press Single to make an acquisition.
26. Press Menu Off.

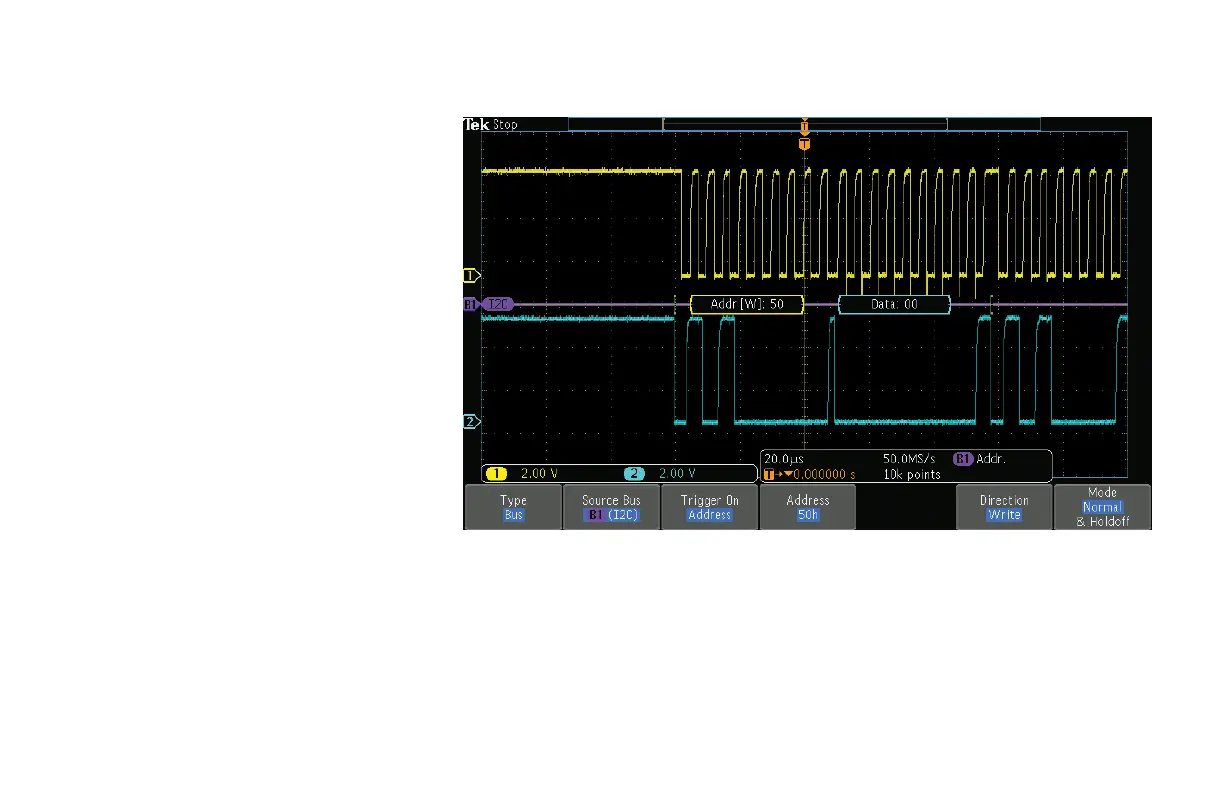

Notice that the oscilloscope now
triggers on address 50.
Figure 18.
