9. Press the Thresholds lower-bezel button
and adjust High to approximately 2.00 V
using Multipurpose a, adjust Low to
about 1.00 V using Multipurpose b.
10. Press the Mode lower-bezel button.
Press the Normal side-bezel button.
11. Press Single to take one acquisition.
12. Press the AFG front panel button to open
the AFG menu.
13. Under Waveform Sine lower-bezel
button, use Multipurpose a to select
Arbitrary.
14. Press the Waveform Edit lower-bezel
button.
15. Press the Load Waveform lower-bezel
button.
16. Press the OK Load button to copy the
acquired waveform on Channel 2 into the
arbitrary edit memory.

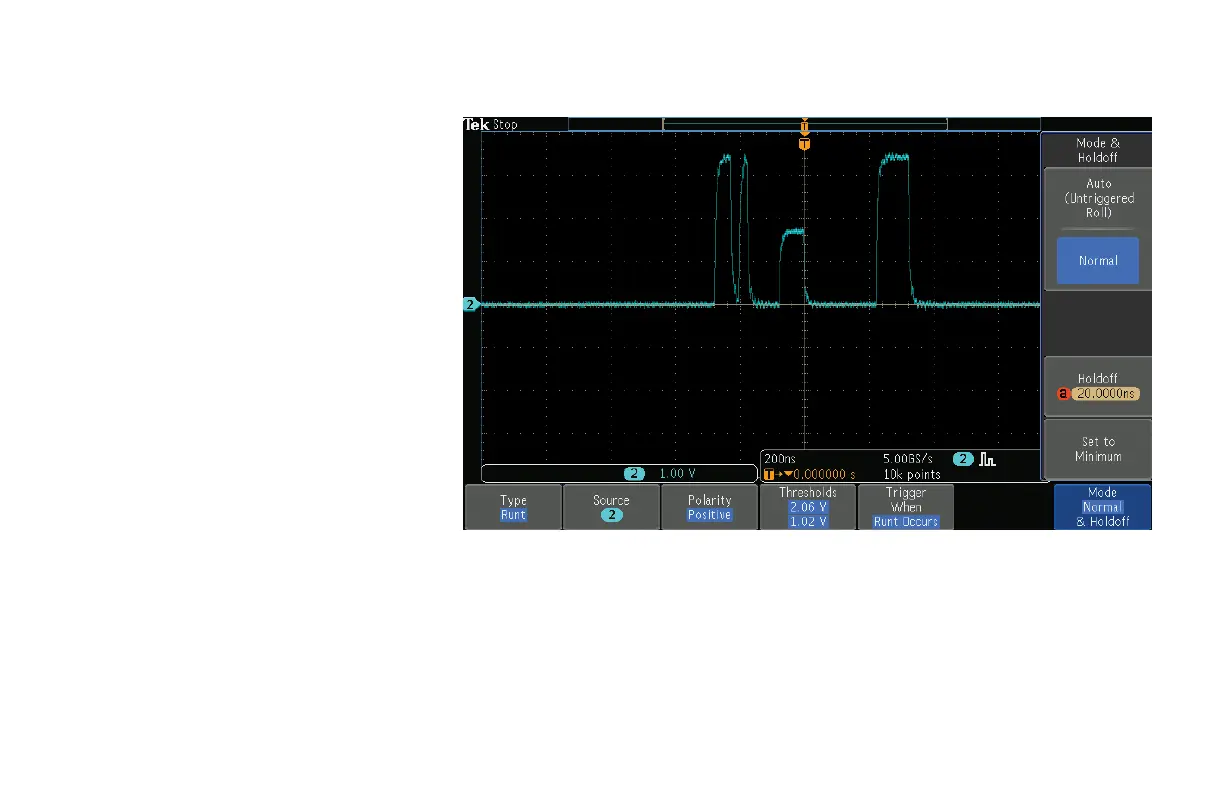

Figure 30.
