Power-On and Power-Off Procedure

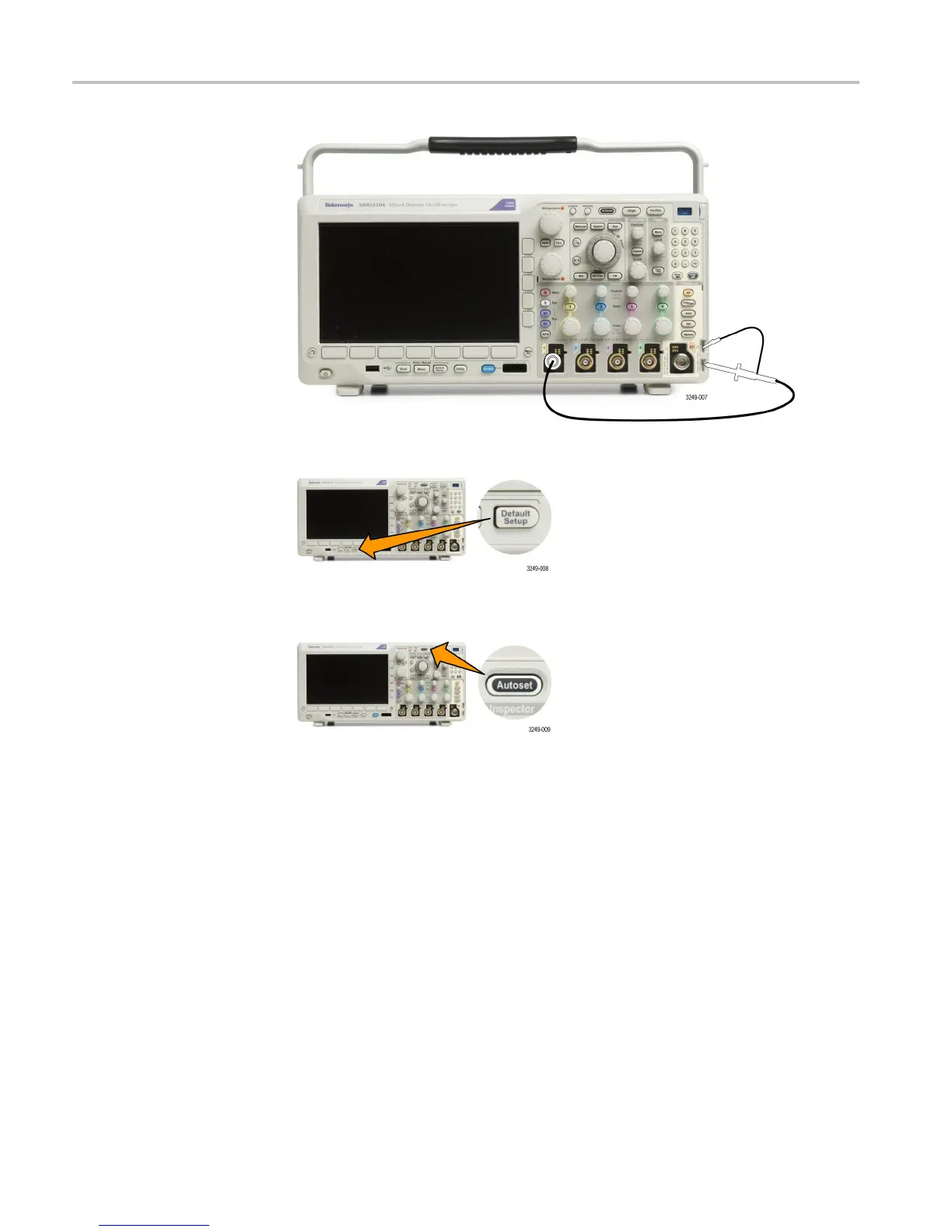

4. Push Default Setup.
5. Push Autoset. The screen should now display a square wave, approximately
5Vat1kHz.
If the signal appears but is misshapen, perform the procedures for
compensating the probe. (See page 24.)
If no signal appears, rerun the procedure. If this does not remedy the situation,
have the oscilloscope serviced by qualified service personnel.
Compensating a TPP0250, TPP0500B or TPP1000 Passive Vo ltage Probe
The MDO3000 Series oscilloscopes can automatically compensate TPP0250,
TPP0500B and TPP1000 probes. This eliminates the need for ma
nual probe
compensation, as is typically performed with other probes.
Each compensation generates values for a specific probe and channel combination.
If you want to use the probe on another channel and desire to compensate the
new probe-channel pair, you must run a new set of compensation steps for that
new combination.
24 MDO3000 Installation and Safety Instructions
