熟悉示波器

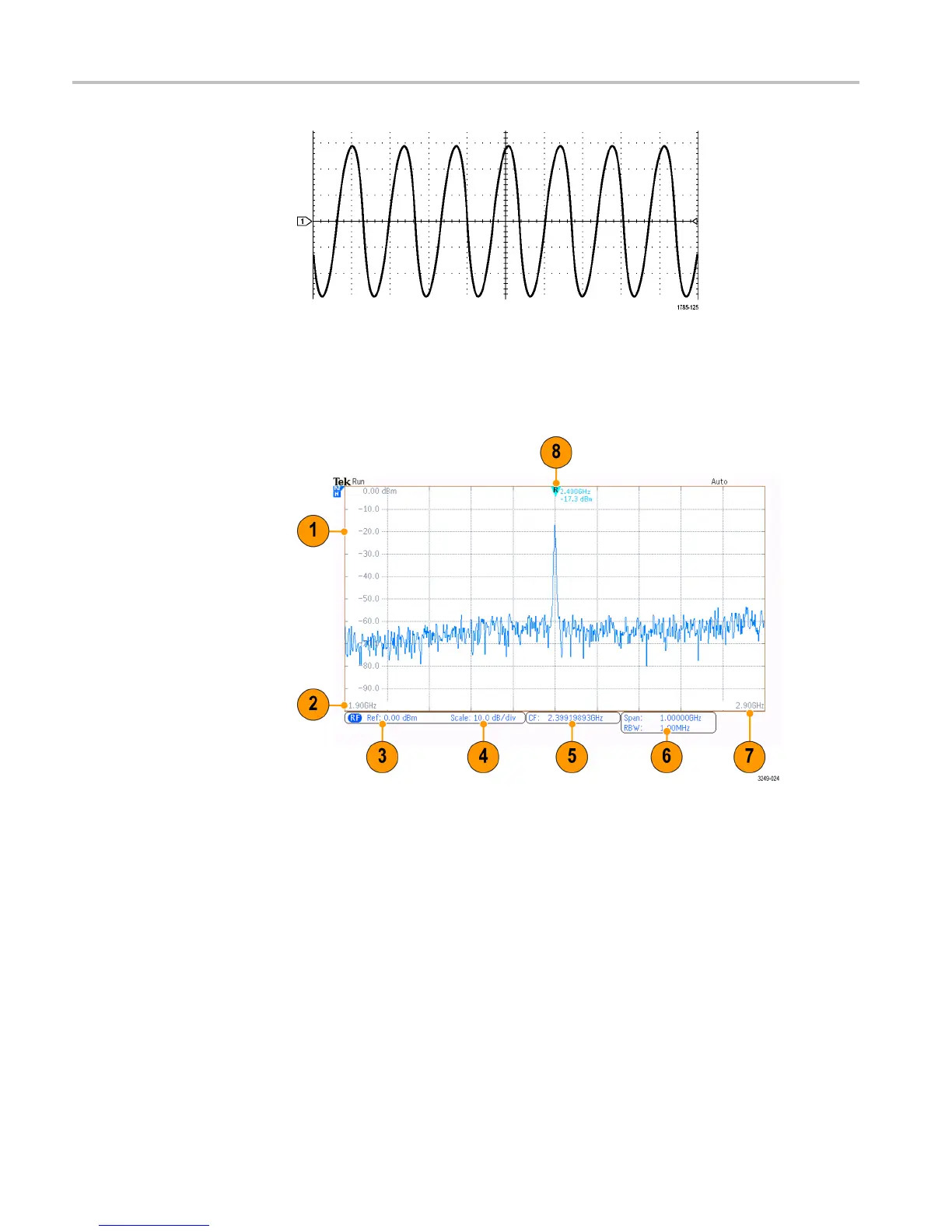

识别频域画面中的项
按下前面板 RF 按钮，即可激活频域画面。
1. 垂直网格标记
2. 初始频率
3. 参考电平
4. 垂直标
度
5. 中心频率
6. 频宽和分辨率带宽
7. 终止频率
8. 参考标记
130 MDO3000 Installation and Safety Instructions
