Trigger Setup
Choosing a Trigger Type

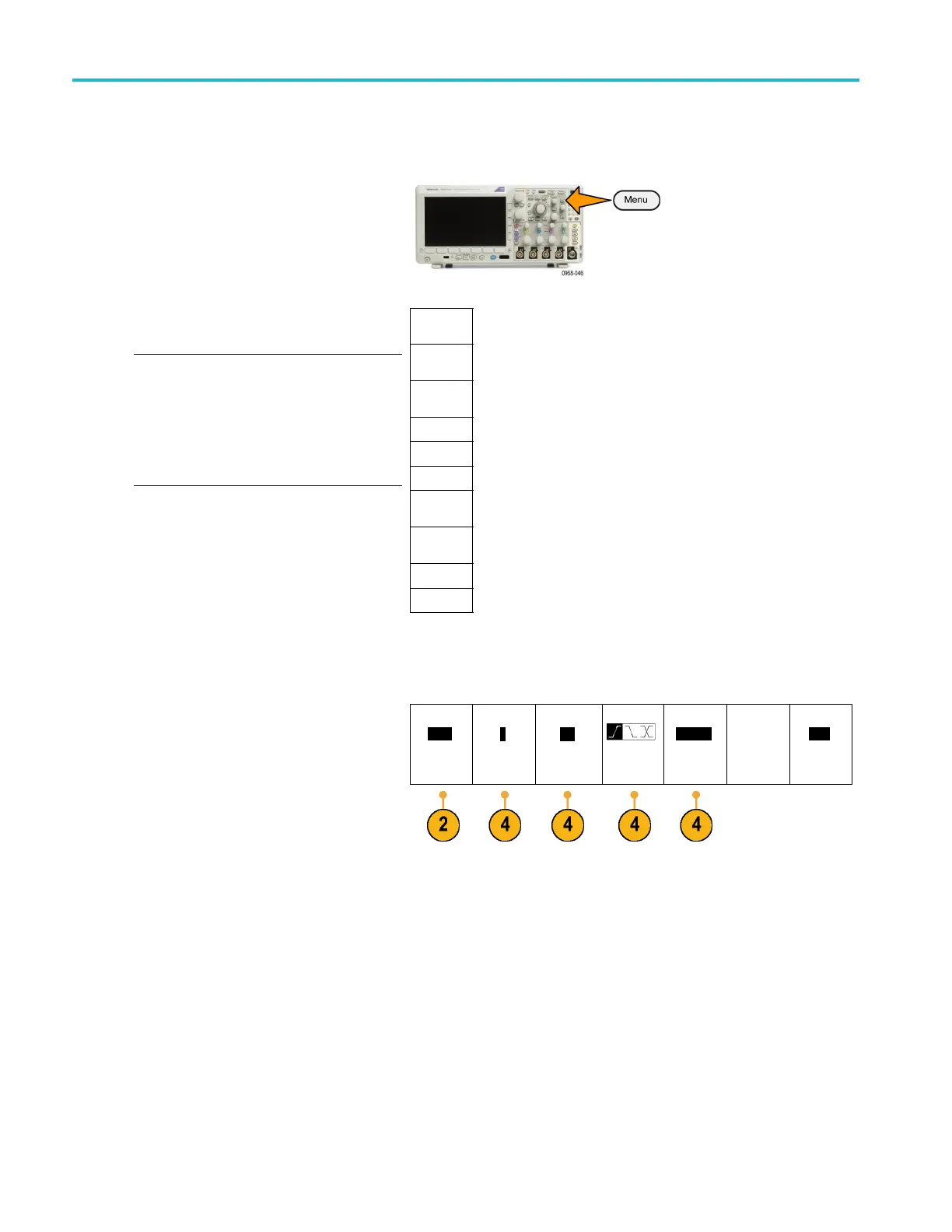

To select a trigger:
1. P ush Trigger Menu.
Trigger
Type
Sequence
(B Trigger)
Pulse
Width
Timeout
Runt
Logic
Setup &
Hold
Rise/Fall
Time
Video
2. Push Type tobringuptheTrigger Type
side menu.
NOTE. The bus trigger in the MDO3000
Series w orks on parallel buses even without
an application module. Using the bus trigger
on other buses requires use of a MDO3AERO,
MDO3AUDIO, MDO3AUTO, MDO3FLEX,
MDO3COMP, MDO3EMBD, or MDO3USB
application module.
Bus
3. Turn Multipurpose a to select the desired
trigger type.
4. Complete the trigger setup using the lower
menu controls displayed for the trigger
type. The c ontrols to set up the trigger vary
depending on the trigger type.
Type
Edge
Source
1
Coupling
DC
Slope
Level
100 mV
Mode
Auto
& Holdoff
92 MDO3000 Series Oscilloscopes User Manual
