Acquire the Sign
al
SettingUpaSerialorParallelBus
Your oscilloscope can decode and trigger on signal events or conditions that occur on:
Bus type With this hardware
Audio (I
2
S, Left Justified (LJ), Right
Justified (RJ), and TDM)
MDO3AUDIO application module
CAN, CAN FD, and LIN MDO3AUTO application module
FlexRay
MDO3FLEX application module
I
2
C and SPI MDO3EMBD application module
ARINC429 and MIL-STD-1553 MDO3AERO application module
Parallel
MDO3000 Series oscilloscope with the MDO3MSO option
RS-232, RS-422, RS-485, and
UART
MDO3COMP application module
USB 2.0 MDO3USB application module
NOTE. 1 GHz bandwidth models are required for high-speed (HS) USB.
(See page 14, Application Module Free Trial.)
Using Buses in Two Steps
To quickly use serial bus triggering:

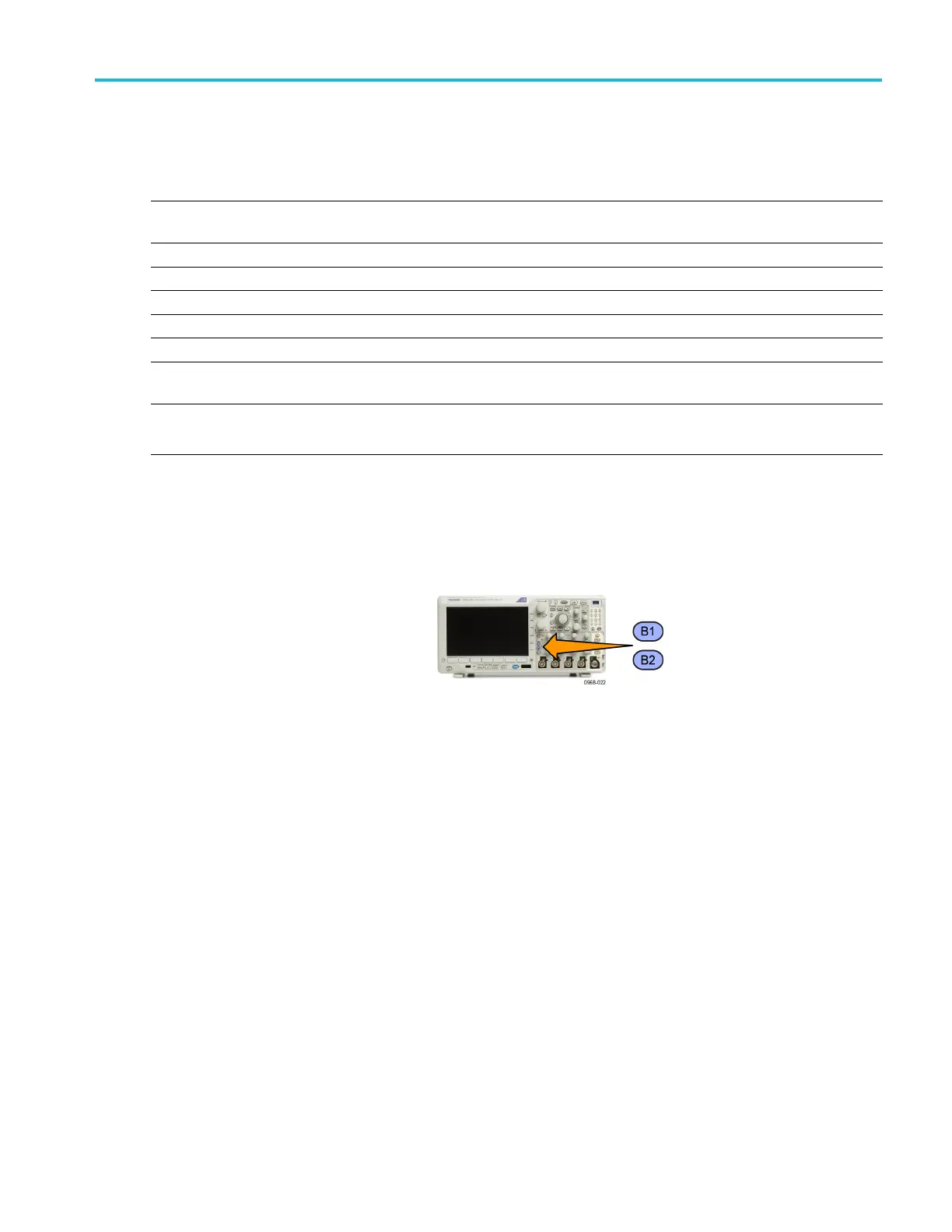

1. Push B1 or B2 and enter parameters of the
bus on which to trigger.
You can separately assign a different bus to
each of the B1 and B2 buttons.
MDO3000 Series Oscilloscopes User Manual 67
