Get Acquainted w
ith the Instrument
Get Acquainte
dwiththeInstrument

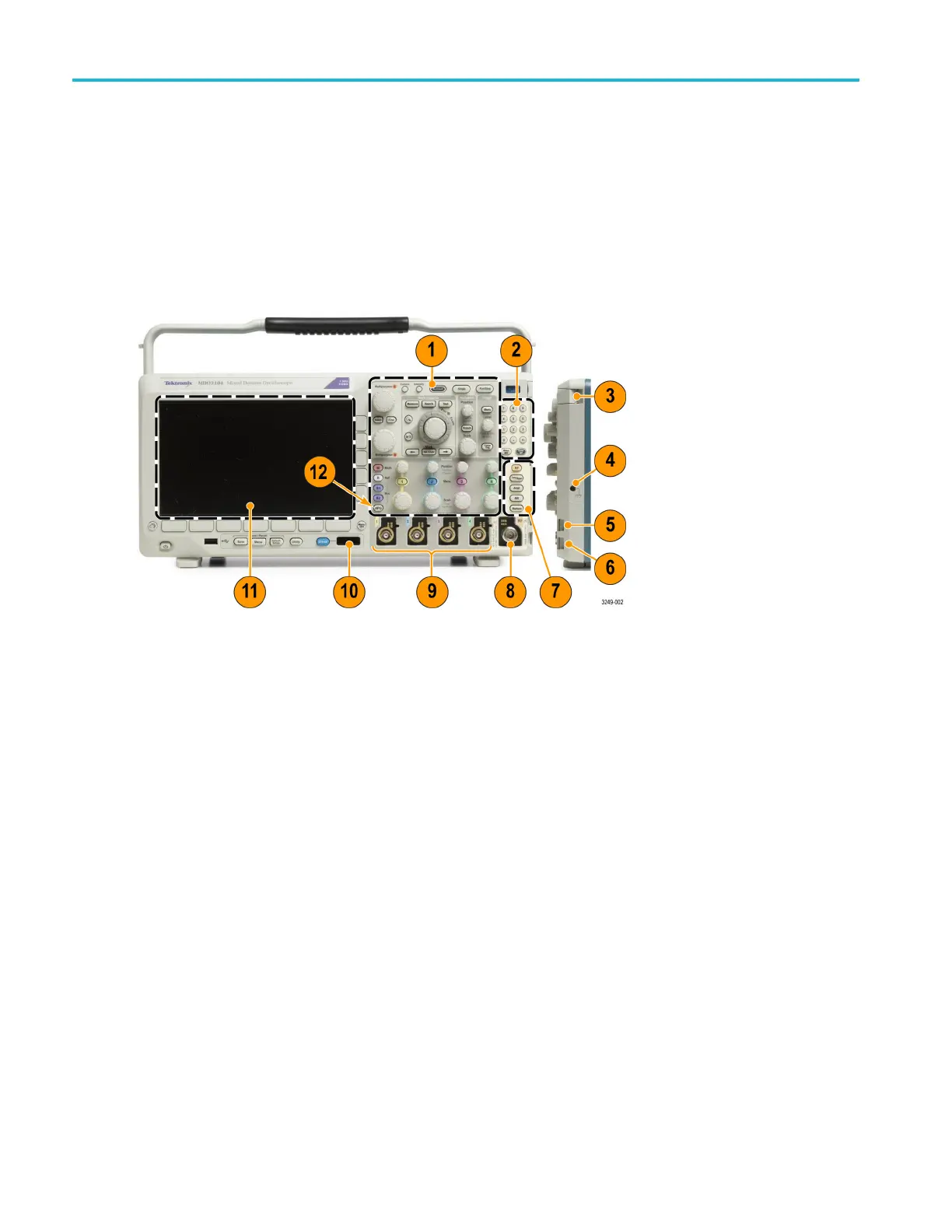

Front-Panel Menus, Controls, and Connectors
Overview
The front panel has buttons and controls for the functions that you use most often. Use the menu buttons to access
more specialized functions.
1. Traditional oscilloscope front panel controls
2. 10-digit keypad
3. Application module slots
4. Ground strap connector
5. Ground
6. PROBE COMP
7. Dedicated spectral analysis controls
8. Dedicated RF input with N-connector
9. Analog channel (1, 2, (3, 4)) inputs with TekVPI versatile probe interface
10. Digital channel input
11. Display: shows frequency or time domain
12. Arbitrary function generator (AFG) enable button
36 MDO3000 Series Oscilloscopes User Manual
