Get Acquainted w
ith the Instrument
14. Horizontal Position. Turn to adjust the trigger point location relative to the acquired waveforms. Push to center
when delay is on
. Push to set to 10% when delay is off.
15. Horizontal Sc
ale. Turn to adjust the horizontal scale (time/division).

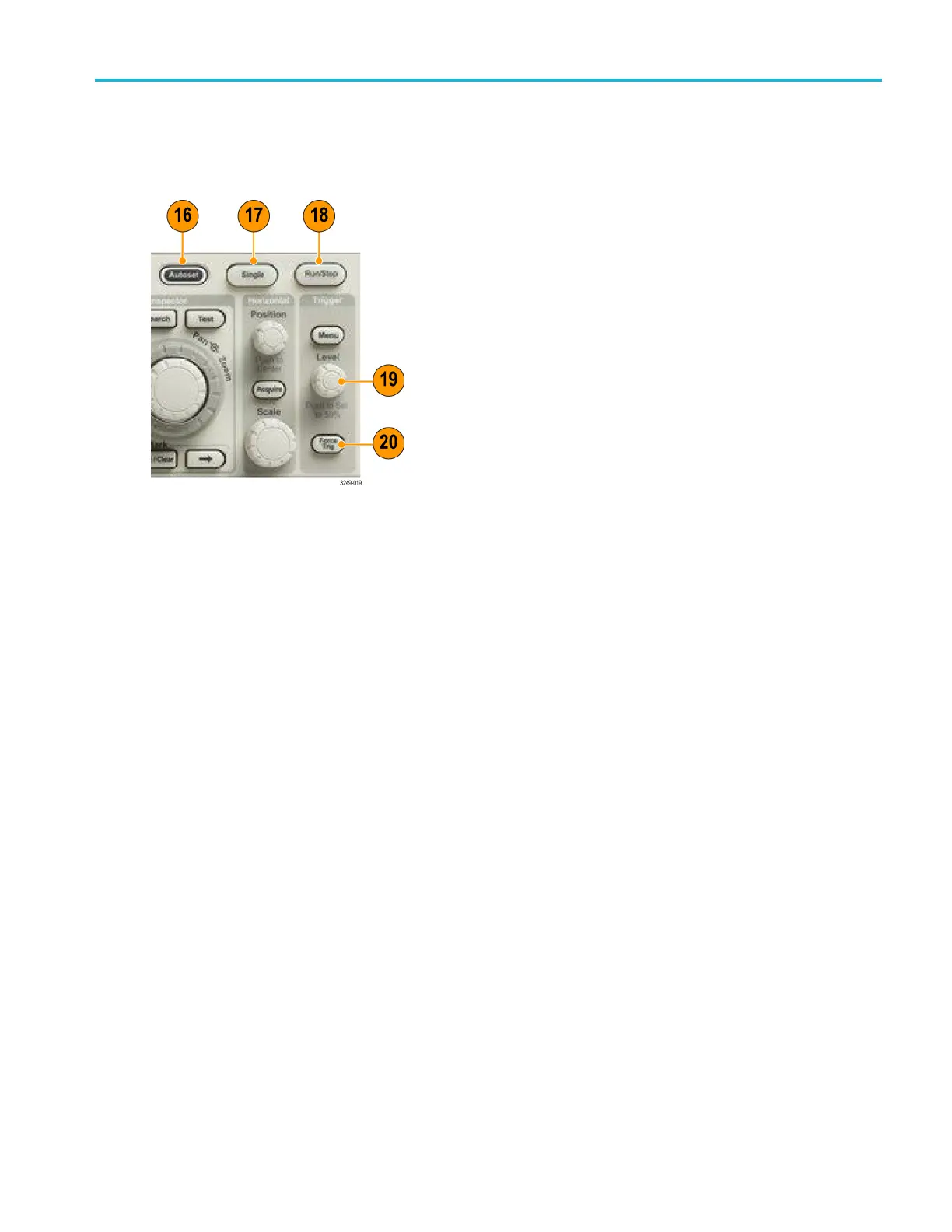

16. Autoset. Push to automatically set the vertical, horizontal, and trigger controls for a usable, stable display.
17. S ingle. Push to make a single sequence acquisition.
18. Run/Stop . Push to start or stop acquisitions.
19. Trigger Level. Turn to adjust the trigger level.
Push Level to Set 50%. Push the Trigger level knob to set the trigger level to the midpoint of the waveform.
20. Force Trig. Push to force an immediate trigger event.
MDO3000 Series Oscilloscopes User Manual 43
