Application Examples

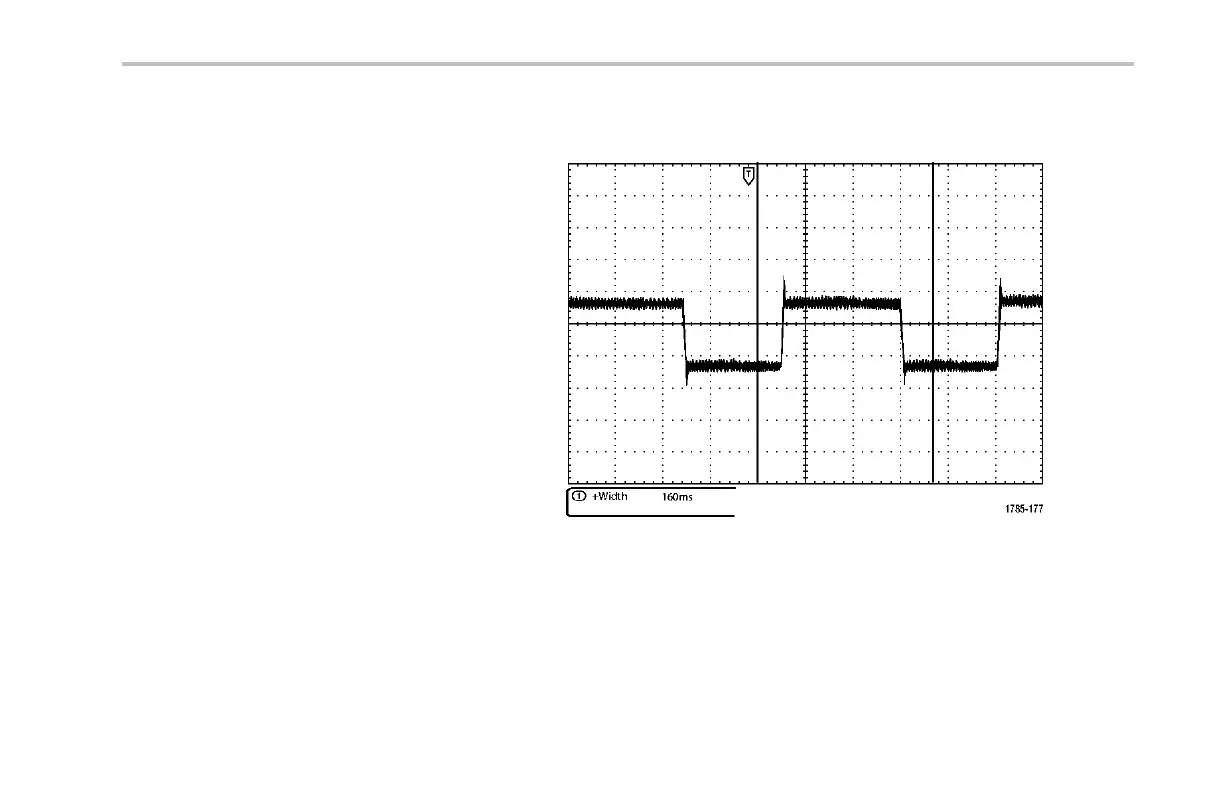

7. Place one cursor to the left and one cursor to
therightofthesecondpulse.
8. View the resulting width measurement
(160 ms) for the second pulse.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 281
