Get Acquainted with the Instrument
Using Other Controls

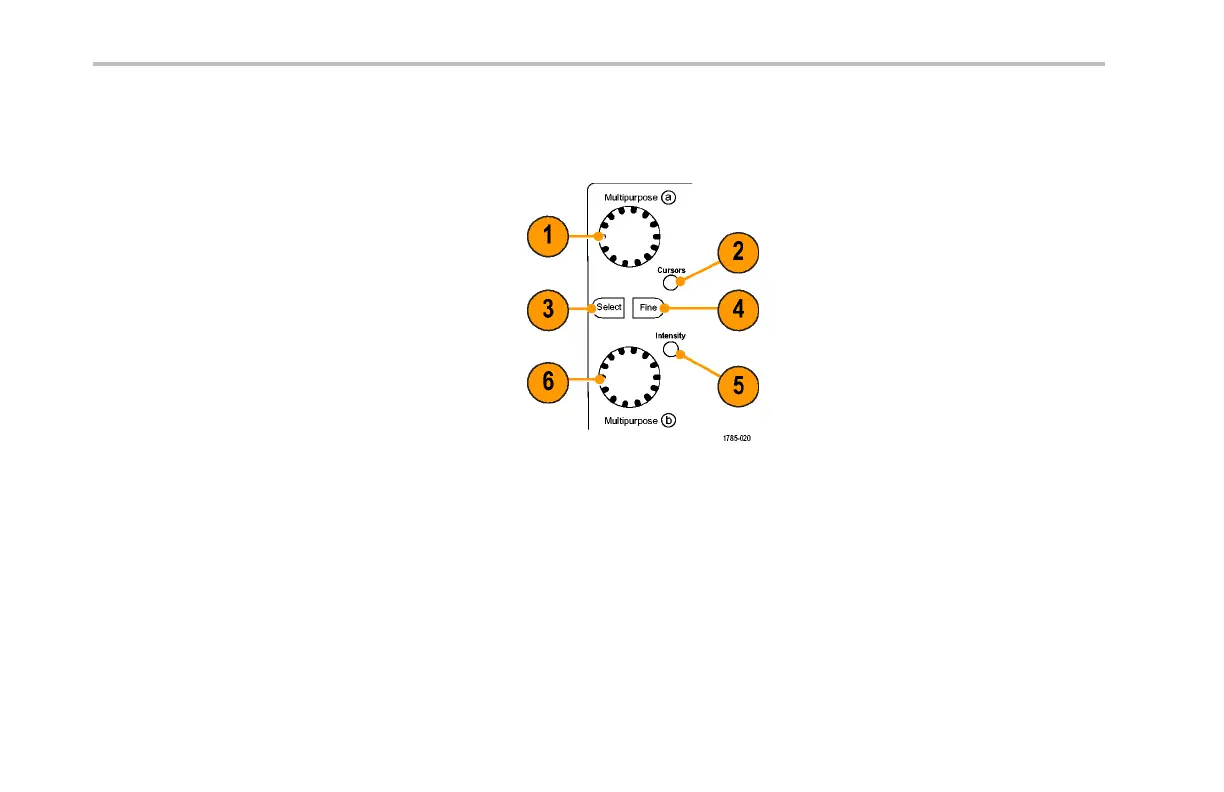

These buttons and k nobs control waveforms, cursors, and other data inp ut.
1. Turn the upper multipurpose knob a,
when activated, to move a cursor, to set
a numerical parameter value for a menu
item, or to select from a pop-out list of
choices. Push the Fine button to toggle
between coarse and fine adjustment.
Screen icons tell you when a or b are
active.
2. Cursors. Push once to activate the two
vertical curso rs. Push again to turn on the
two vertical and two horizontal cursors.
Push a gain to turn off all cursors.
When the cursors are on, you can turn
the multipurpose knobs to control their
position.
60 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
