Get Acquainted with the Instrument

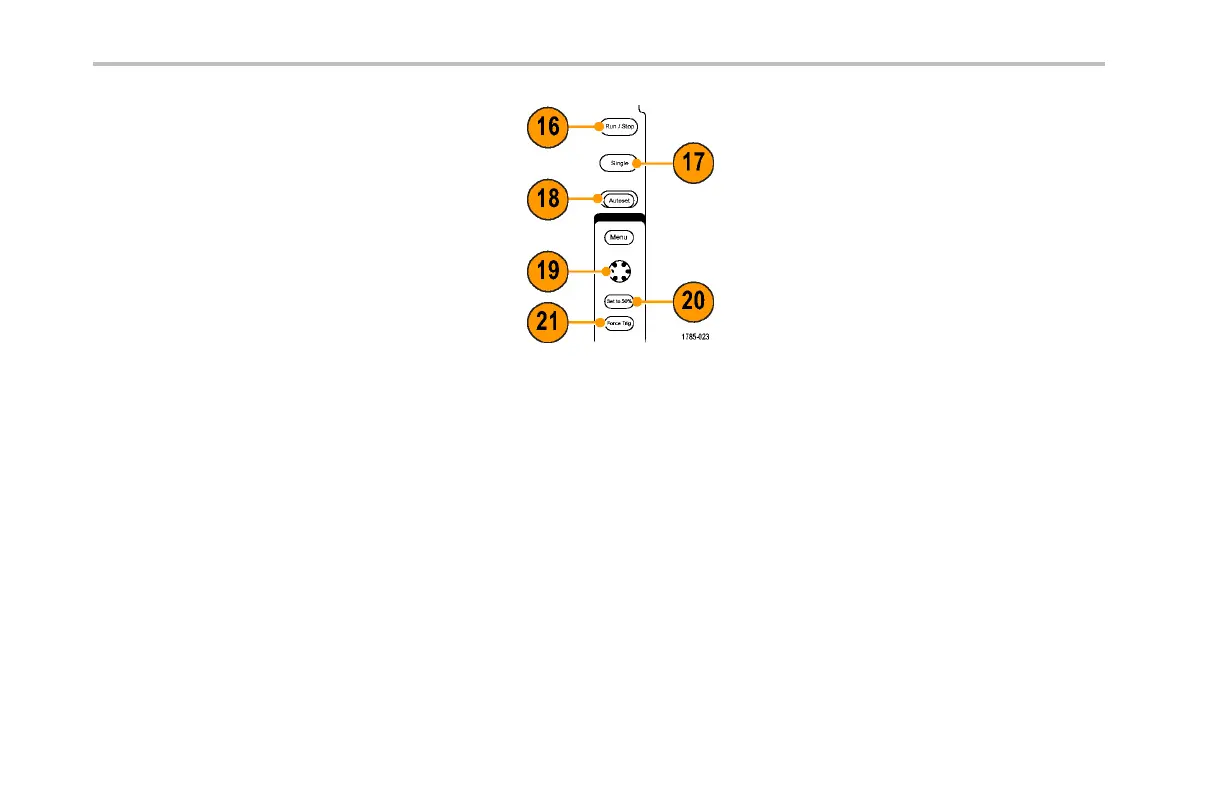

16. Run/S top. Pushtostartorstop
acquisitions.
17. Sin gle. Push to make a single acquisition.
18. Autoset. Push to automatically set the
vertical, horizontal, and trigger controls for
a usable, stable display.
19. Trigger Level. Turn to adjust the trigger
level.
20. Set to 50%. Push to set the trigger level to
the midpoint of the waveform.
21. Force Trig. P ush to force an immediate
trigger even t.
64 MSO4000 and DPO4000 S eries Oscilloscopes User Manual
