Positioning and Labeling Bus Signals
Positioning bus signals. Push the appropriate front-panel bus button and turn multipurpose knob a to adjust the vertical
position of the selected bus. (See page 54, Setting Up a S erial or Parallel Bus.)

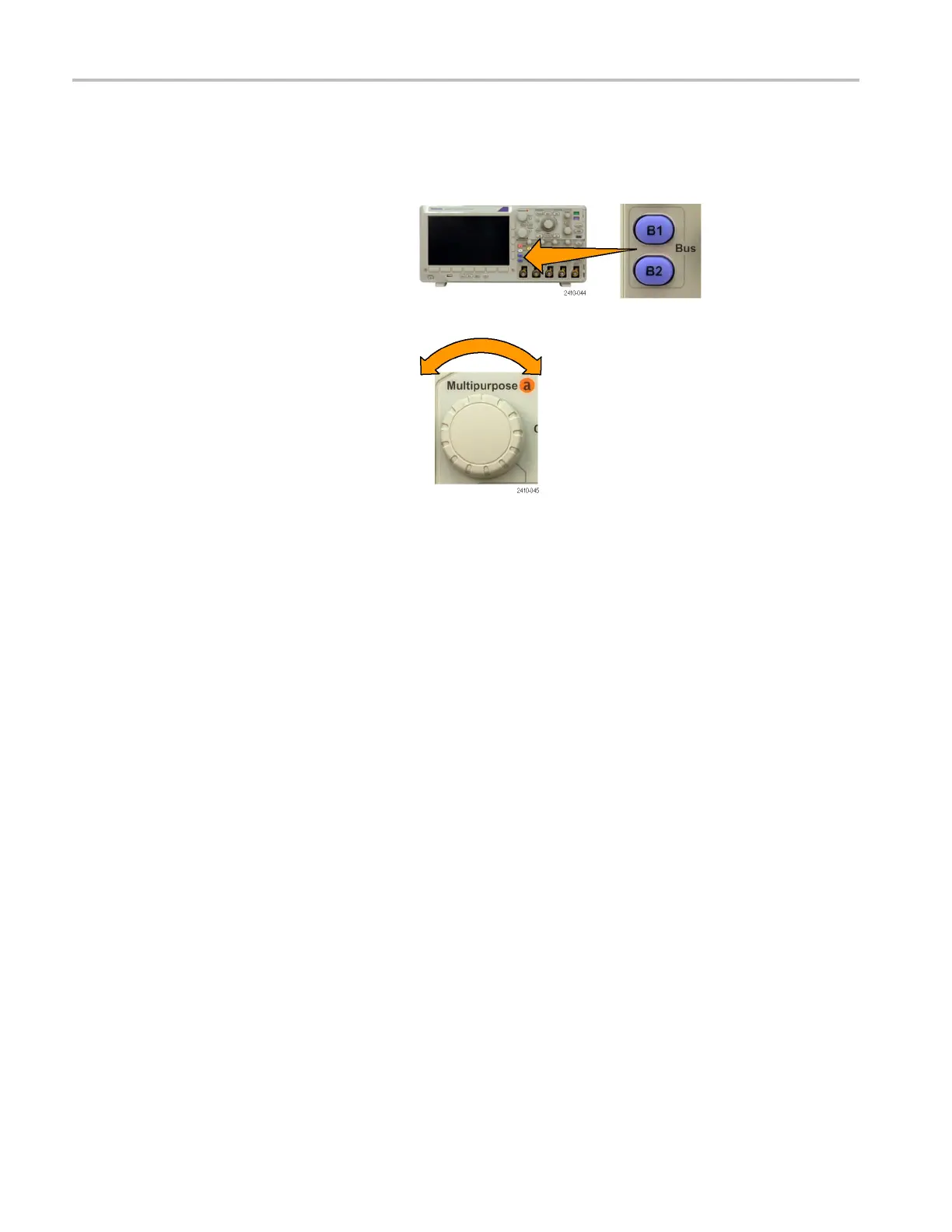

1. Push the appropriate front-panel bus button
to select that bus.
2. Turn multipurpose knob a to adjust the
vertical position of the selected bus.
