Application Exa
mples

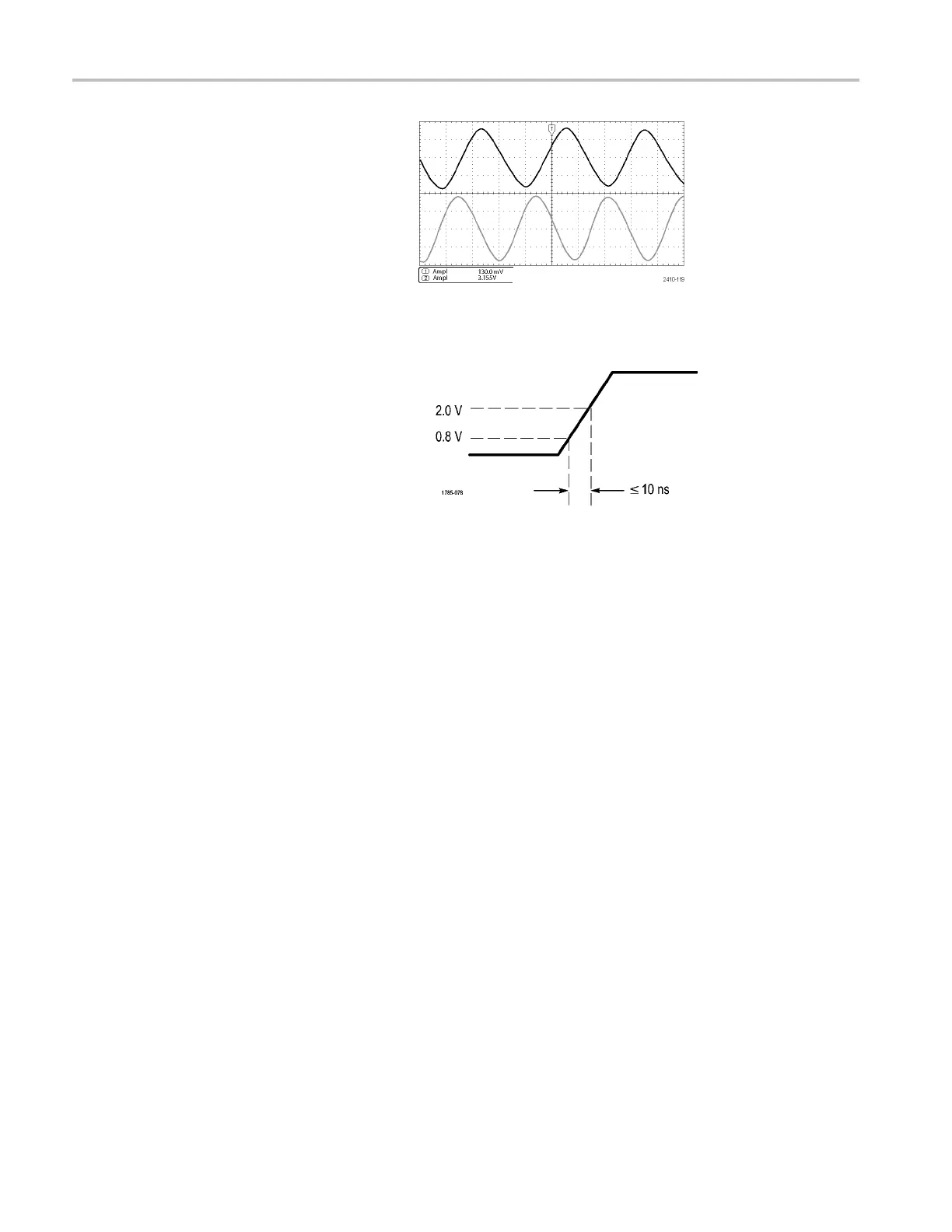

4. Calculate the amplifier gain using the
following equations:
Gain = (output
amplitude ÷ input amplitude)
= (3.155 V ÷ 130.0 mV) = 24.27
Gain (dB) = 20 x log(24.27) = 27.7 dB
Customizing Yo ur Measurements
In this example, you want to verify that the
incoming signal to digital equipment meets
its specifications. Specifically, the transition
time from a low logic level (0.8 V) to a high
logic level (2.0 V) must be 10 ns or less.
144 MSO3000 and DP O3000 Series Oscilloscopes User Manual
