Tektronix MSO4000 Series Demo Instruction Manual

Giving Demos of Advanced Tektronix 4000 Features
11. Push the Set/Clear buttontoremovea
mark from the wavefo rm.
The zoom, pan, play/pause,
setting/clearing/navigating of marks
are all very useful features for manually
navigating and inspecting the wavefo rm.
NOTE. To re m o ve a m a r k w i t h Set/Clear, first
center the zoom box on the m ark, either with
the → and ← arrow buttons, or panning on
the mark.
Demo XI: Using the Wave Inspector’s Search Functiona lity
This section shows h ow to use the powerful s earch engine to find events for you.

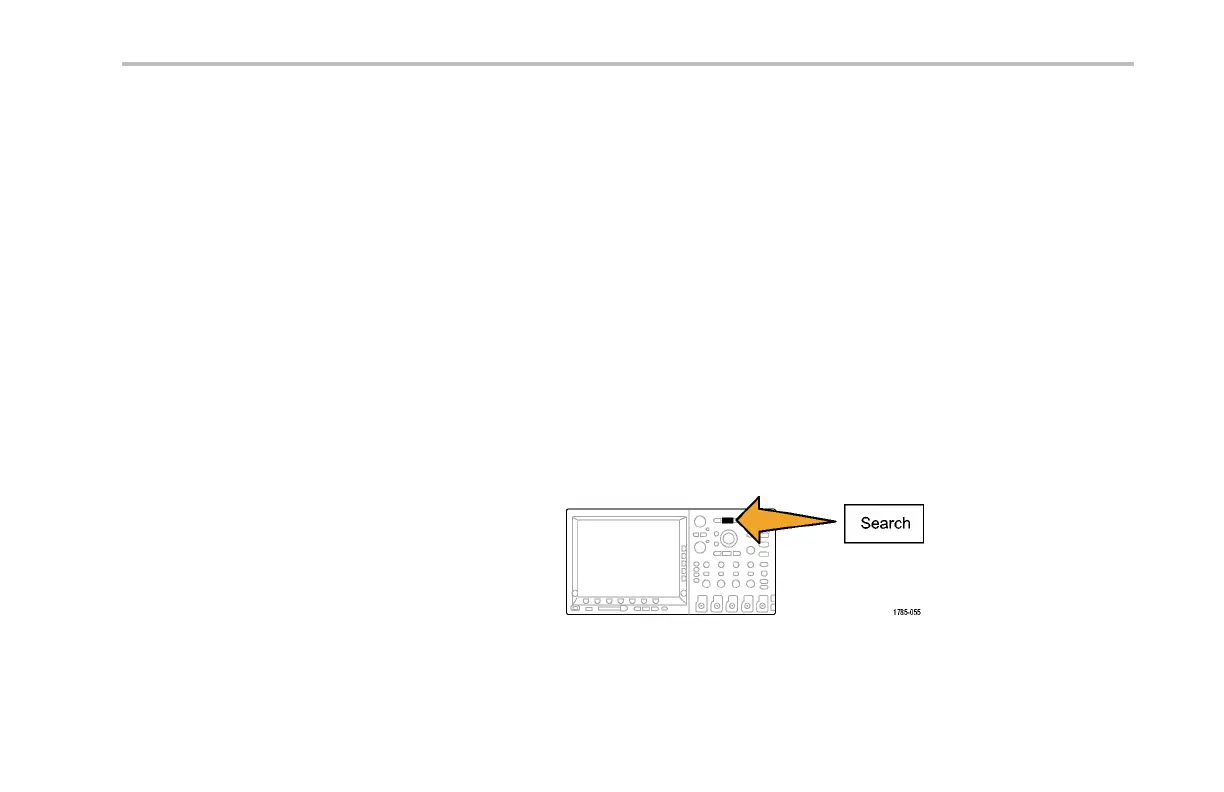

1. Push the front-panel Search button.
Tektronix 4000 Oscilloscope Demo In struction Manual 35
