Tektronix MSO4000 Series Demo Instruction Manual

Giving Demos of Advanced Tektronix 4000 Features
Demo XIII: Searc hing Serial Signals
This demo shows how to search on serial bus signa ls.

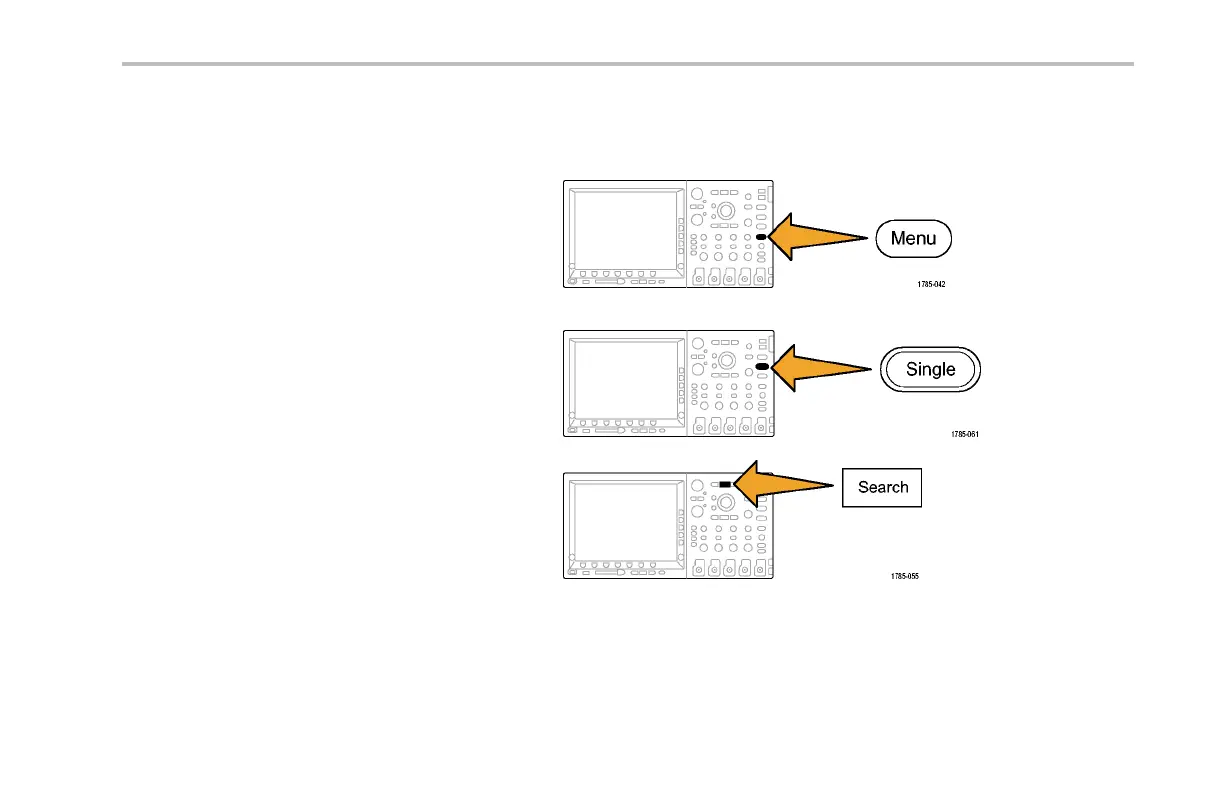

1. Push the front-panel Trigger Menu bu tton.
Push the lower-bezel Type button and turn
multipurpose knob a to select Edge.
Setting the trigger back to Edge helps
return random data for the search exercises
described below.
2. Push Single to make an acquisition.
3. Push the front-panel Search button.
Tektronix 4000 Oscilloscope Demo In struction Manual 51
