Tektronix MSO4000 Series Demo Instruction Manual

Giving Demos of Advanced Tektronix 40 00 Features
Demo XII: Using Serial Triggering and Analysis
This demo shows a mu ch easier and more efficient way to analyze your serial buses.
NOTE. Start from where y ou finished the last demo.

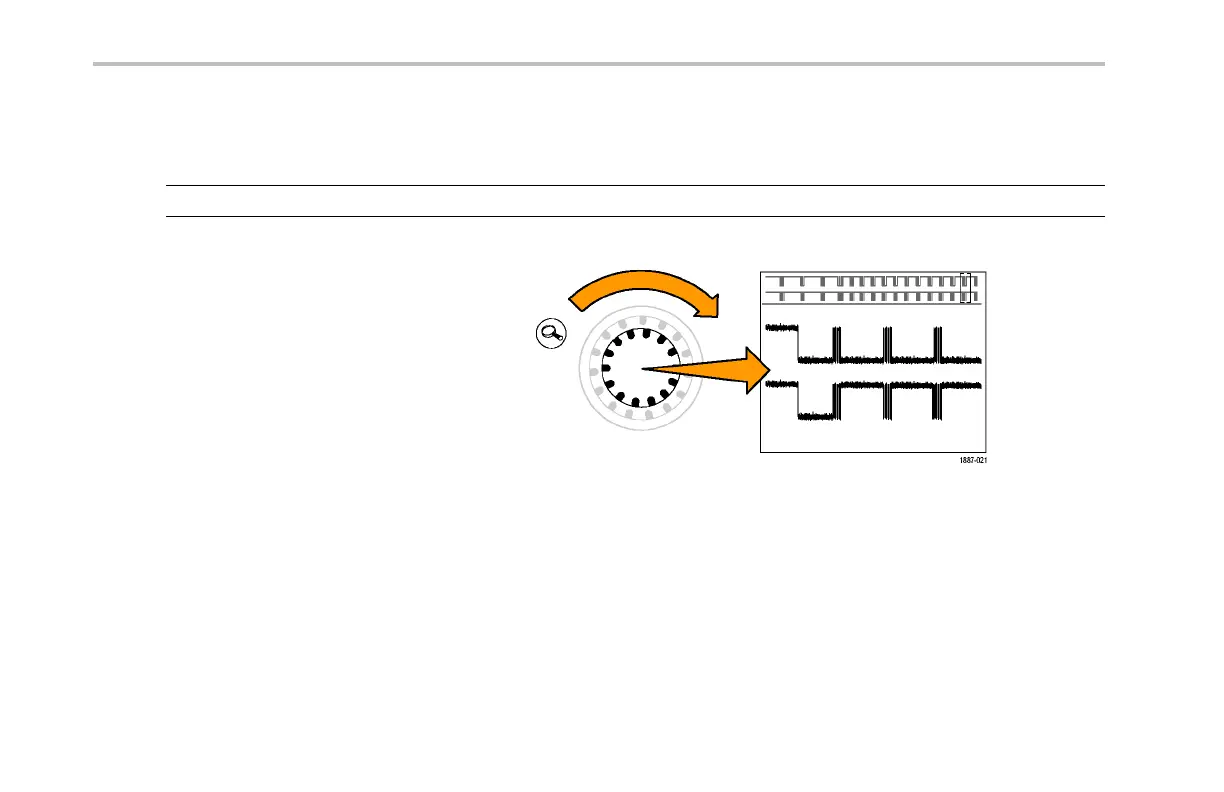

1. Turn the zoom (inner) knob to adjust your
zoom factor to 50 X.
Hint: The oscilloscope will display the zoom
value near the upper-left corner of the disp lay.
40 Tektronix 4000 Oscilloscope Demo Instruction Manual
